20-180mm Scrap Cable Wire Stripping Machine 7.5kw Motor 30m/Min
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||USD 580-650 per set|
|Packaging Details :||Standard exported ply wooden case||Delivery Time :||7 work days|
|Payment Terms :||L/C, T/T, Western Union, MoneyGram||Supply Ability :||100 sets per month|
|Place of Origin:||Zhengzhou, China||Brand Name:||TMS|
|Certification:||CO, ISO||Model Number:||918-KOF|
|Name:||Copper Wire Stripping Machine||Function:||Stripping & Cutting|
|Motor:||3kw||Wire Range:||1mm-50 Mm|
|Machine Size:||700*610*840mm||Blades:||19 Pieces|
|Feed Hole:||15||Net Weight:||110kg|
50mm Scrap Copper Wire Stripping Machine,
1mm Scrap Copper Wire Stripping Machine,
50mm scrap wire cutting machine

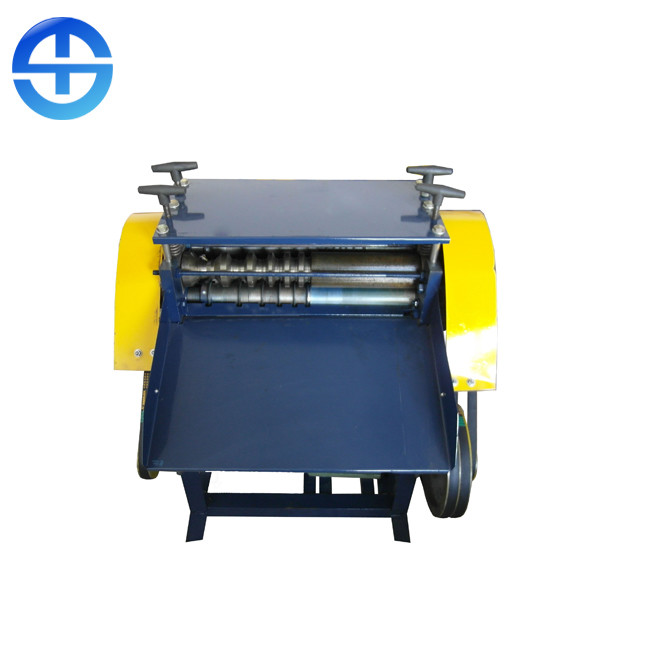

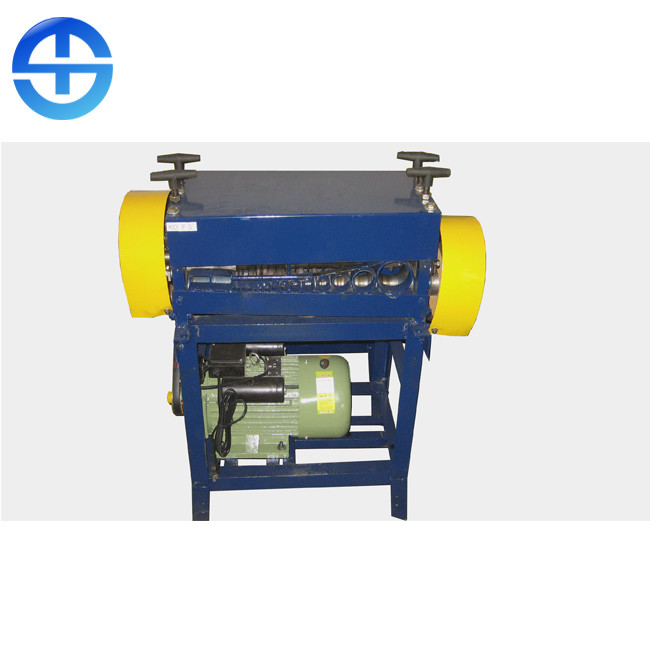

918-KOF 1mm-50mm Wire Copper Wire Stripping Machine
Introduction of Copper Wire Stripping Machine
We provide various types of wire stripping machines for you to strip the scrap wires and cables easily. They can not only strip wires with plastic cover but also can make rubber cable stripped easily. The metal core can be either copper wires or aluminium wires.
918-KOF copper wire stripping machine has the most funtions among our stripper machines. It applies to various types of electric wires and cables, including copper wires, aluminum wires, steel wires, etc. Various rubber cables are easy to be stripped. Moreover, the cable stripper can strip single-core or twin-core flat wires at one time. The diameter range of cables that can be stripped is 1-50mm. The cutting speed is 35m/minute. The daily output is 300m per minutes.
The machine has totally 15 feeding holes for the wires, including 11 round wire inlets, 2 twin wire inlets for double-core flat wires, and 2 pressing wire inlet, which can press out the metal in single-core wires directly.
Technical parameters of copper wire stripping machine
|Motor Power||3 kw|
|Wire diameter range||1-50 mm|
|Machine Size||700*610*840 mm|
|Output||30 m per minute|
Features of Copper Wire Stripping Machine
1. Nice appearance, stable performance
2. Small dimensions, easy to move.
3. High efficiency, low power consumption.
4. Easy operation and easy maintenance.
5. Holder can be provided to support the stripping machine.
6. Various voltages are optional and customizable as required.
