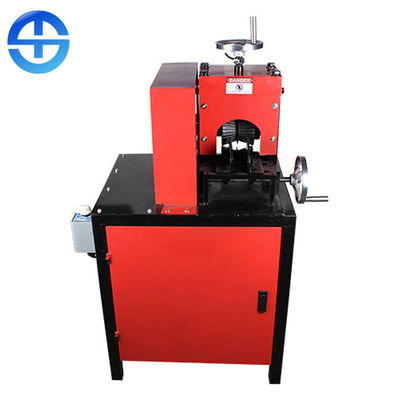

3kw Copper Wire Stripping Machine Strpping Range 2-120mm

3kw Copper Wire Stripping Machine Strpping Range 2-120mm

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: ISO, CE, CO
Model Number: QJ-120-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1300-1600 per set
Packaging Details: Ply wooden case
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Stripping Machine Function: Peel Copper Wire
Motor Power: 3kw Stripping Range: 2-120mm
Machine Dimension: 820*560*1190 Mm Voltage: 220V/50HZ, Single Phase
Capacity: 30m/min Machine Weight: 200kg
High Light:

3kw Copper Wire Stripping Machine


120mm Copper Wire Stripping Machine


2mm scrap cable stripping machine

Product Description

Power 3kw Strpping Range 2-120mm Copper Wire Stripping Machine


Description of copper wire stripping machine


Copper wire stripping machine has the most funtions among our stripper machines. This kind stripper is a multi-purpose wire stripper developed by our company for small wires and high-voltage cables, submarine cables and armored cables. It is simple to operate and easy to adjust. It is driven by a 3kW six level three-phase motor.


Feature of copper wire stripping machine


1) This machine suitable for a variety of wire. Wire stripping range:2-120mm.This machine is practicable and easy to handle.

2) Frame dual blades principal, can process different diameter cable, easy to operate and durable.

3) This machine is easily to use, portable,energy saving and good looks,just like the normal stripper machine usage.

4) This model are easy to operate, convenient to carry, energy saving, for single copper wire(hard wires) can be rolled or blades stripping, other cables(soft wires) can be easily stripped.


Technical datas of copper wire stripping machine


Model QJ120-2
Machine size 820*560*1190mm
Capacity 30m/min
Motor Power 3kw
Gross Weight 200kg
Motor 380V/220V
Wire diameter stripped 2-120mm
Blades 10+2 pcs
Hole 7+1

The machine can be divided into left and right sides to work simultaneously

The left small line in hole consists of 6 incoming holes of different sizes (stripping range: 2-30mm)

The right large line in hole is composed of a single adjustable inlet hole (stripping range: 30-120mmm)

3kw Copper Wire Stripping Machine Strpping Range 2-120mm 0

Number according to the picture

1: 1 stripping range: 18-26mm

2: 2 stripping range: 11-20mm

3: 3 stripping range: 7-10mm

4: 4 stripping range: 5-8mm

5: 5 stripping range: 3-5mm

6: 6 stripping range: 2-3mm

7: No.7 stripping range: 30-120mm

8: Adjusting handle for the size of No.7 wire entry hole (the diameter of No.7 wire entry hole can be adjusted to 30-120mm).

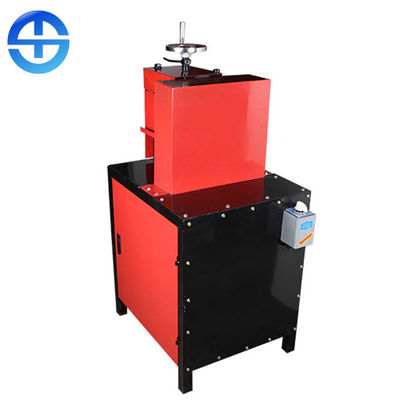

3kw Copper Wire Stripping Machine Strpping Range 2-120mm 1
