1.5-38mm cables stripped 10 blades copper wire stripping machine
Description of copper wire stripping machine
This machine is a kind of machine which can peel off the plastic skin wrapped by wire and metal core. Due to different wire diameter, material and composition, it has different suitable models. For the waste recycling industry, the machine makes its operation systematized, saves time and effort, and completes the recycling of waste wires and cables more efficiently.
Technical specification of copper wire stripping machine
| Model | TMS-038 |
| Power | 0.37kw |
| Wire diameter stripped | 1.5-38mm |
| Blades | 10pcs |
| Hole | 11 |
| Size | 580*280*370 mm |
| Weight | 38 kg |
| Output | 20 m per minute |
Features of copper wire stripping machine
1. Hatchback design, in line with ergonomic design.
2. Double-acting cylinder, no need take spring break into account.
3. Adopt oil and gas self sufficiency of the two conjoined, regular oil to the cylinder to reduce cylinder internal mill tax loss and prolong life.
4. Unique slide style, reciprocating stroke smooth, accurate cutting and stripping.
5. Llight and agile, easy operation.
6. Adjustable structure, line of sight material and fine adjustment.
7. Suitable for processing of large diameter long wire, cable.

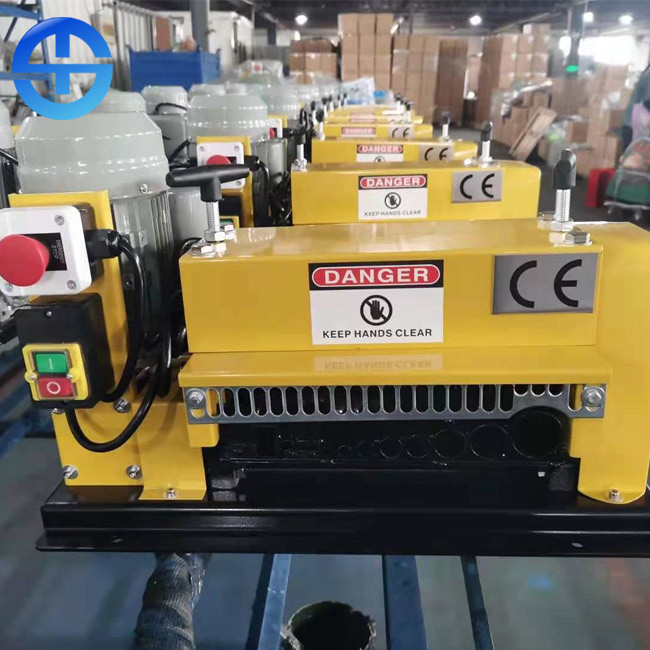

Function button of cable stripping machine
Adjuster- Used to adjust the distance of blades up and down.
Stop button- Stop machine.
Feeding hole- Fit for the scrap cables diameter within Φ1.5mm-Φ38mm.
0peration of cable stripping machine
1. Input the cables according to the feeding hole.
2. The cables should be corresponding with feeding hole.
3. Check the rotating direction of the machine, you can operate when the direction rightly, or else change the connector direction.
4. Make sure that the diameter of cables is similar with that of the feeding holes: large cables in large feeding holes, small cables in small feeding holes, and flat cables in flat feeding holes.
Note
Check the machine before using in case that there is something in the machine brokes blades; To extend the blades life, user need to cut the cable joint when feeding.
