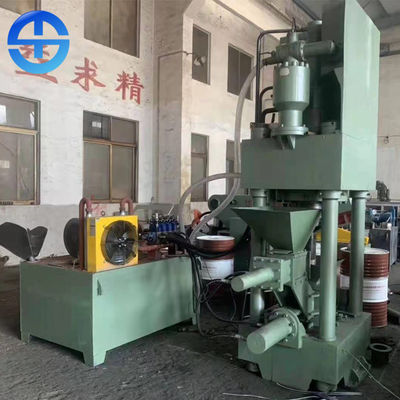

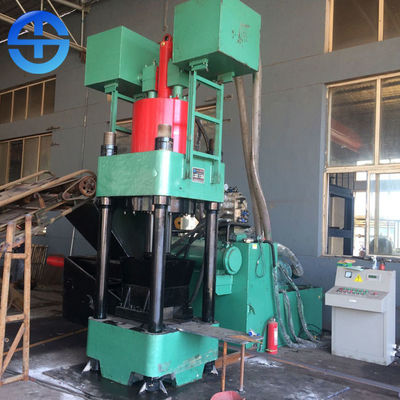

6 Block Per Minute Briquette Press Machine Metal Chips φ90-110mm

6 Block Per Minute Briquette Press Machine Metal Chips φ90-110mm

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-3150

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Exported ply wooden case or Full container
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Briquette Press Machine Usage: Press Metal Chips Into Block
Motor Power: 30kw Briquette Diameter: Φ90-110mm
Input Per Shift: 5-6 Ton Work Efficiency: 6 Block/min
Operation: PLC Control, Manual Briquette Weight: 3-4kg
High Light:

6 Block/min Briquette Press Machine

,

110mm Briquette Press Machine

,

90mm metal chip briquetting machines

Product Description

6 Block Per Minute Φ90-110mm Briquette Press Machine

Overview of briquette press machine

Bqieutte press machine is mainly used for cold pressing powder or granular copper chips, aluminum chips, cast iron chips, ball milled cast iron chips, sponge iron, steel chips, iron ore powder, silicon powder, slag powder and other non-ferrous metal chips into 2.5 ~ 10kg cylindrical cakes without any additives. Large automatic chip merging machine is suitable for enterprises with large amount of metal chips, large foundries and wind power parts foundry enterprises, Copper and aluminum products production enterprise customers choose.mer requirements, using domestic or imported hydraulic, electrical components, with automatic feeding, weighing and other devices.

Materials of briquette press machine

Iron chips, aluminum chips, steel chips, alloy chips, high grade nodular cast iron chips, iron powder, coke, nickel powder, ball milling cast iron chips, sponge iron, magnesium powder, silicon powder, slag powder, metal bottle caps and other metal chips.

Advantages of briquette press machine

1. Hydraulic drive, stable operation, no vibration, safe and reliable;

2. Simple equipment foundation is needed;

3. It is controlled by PLC and can be operated manually or automatically.

4. Automatic feeding mechanism can be added according to user's requirements.

5. The whole steel casting is used in the frame to improve the reliability, stability and service life of the equipment.

Component of briquette press machine

(1) Main machine: it is composed of frame, main hydraulic cylinder, pushing hydraulic cylinder, bottom plate hydraulic cylinder, matching mold frame and mold, pressure head, etc.

The frame part is composed of upper and lower beams and columns. The upper and lower crossbeams are all made of integral steel casting. The upper and lower crossbeams are connected with four columns by inner and outer nuts to bear the tension during operation.

The main hydraulic cylinder can eliminate steel casting and hidden danger. Ensure the service life and safety of the equipment. The supporting mold frame, mold and indenter are designed by professionals, and the superior processing ability is the guarantee for the excellent taste of the equipment. The punch of mould and briquetting machine are equipped with high strength wear-resistant steel which can be replaced quickly. The front end of model lindur punch is equipped with a pressing ring of wear-resistant punch which is convenient for disassembly and installation, so as to prolong its service life. Relevant parts are specially hardened or forged in necessary parts.

(2) Hydraulic station: it is composed of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system for connecting briquetting machine. The design is reasonable and the quality is stable. Equipped with cooling system to avoid continuous operation of equipment due to oil temperature overheating.

(3) Console: it is composed of electrical system and PLC control system.

Technical data of briquette press machine

Model TMS-3150
Inner diameter of main cylinder φ360mm
Briquette diameter Φ90-110mm
Briquette Density  ≥5 T/m3
Work efficiency 6 block/min
Input per shift  5-6Ton
Power 30kw
Remark PLC control, Manual
