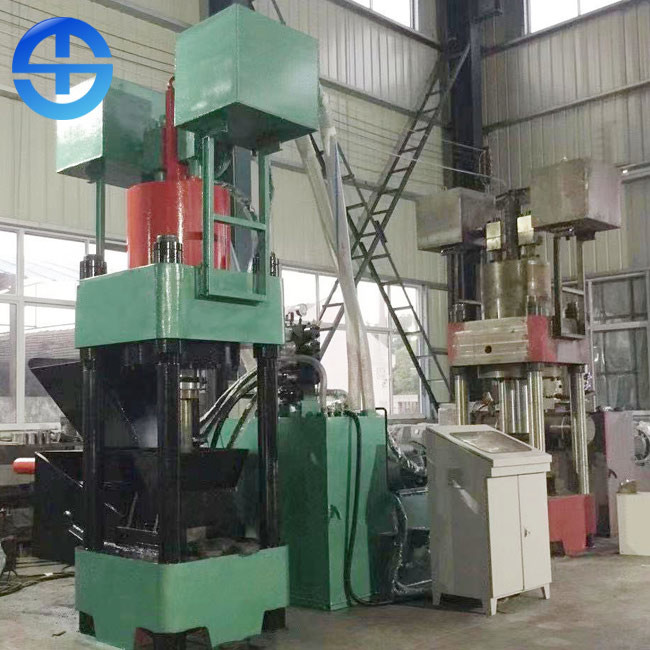

Briquette Size 200mm Manual Metal Briquette Press Aluminum powder

Briquette Size 200mm Manual Metal Briquette Press Aluminum powder

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-6300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Exported ply wooden case or Full container
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Briquette Press Function: Press Metal Chips Into Briquette
Total Power: 30kw Briquette Density: ≥2.0T/m3
Briquette Size: Φ200mm Yield: 8-10 Ton / 8 Hours
Operation Mode: Full Automatic Machine Size: 2.6*3.2*4.0m
High Light:

200mm Metal Briquette Press

,

5 pieces/min Metal Briquette Press

,

200mm manual briquette press

Product Description

Φ200mm Briquette Size Manual Metal Briquette Press

Introduction of metal briquette press

Metal briquetting machine is also called vertical metal scrap recycling machine, metal chip merging machine, metal pressing machine, high-density metal chip briquetting machine. The working principle of this machine is to use hydraulic pressure to press the metal which can produce plastic deformation into a solid block with high density.

This metal briquette press can coldly compress powder and grain shaped cast steel chips, steel chips, Sponge iron, copper chips and aluminum chips into column-shaped lump with a density of >5T/M3, PLC control with automatic material feeding, lump discharging and high efficiency.

Application of metal briquette press

Metal chip briquetting machine is mainly used for cold pressing powdery, granular, small flake copper chips, iron chips, aluminum chips, alloy powder, stainless steel chip, iron ore powder, magnesium powder, copper powder and other metal chips Into a 3-5 kg cylindrical cake. It can also be used for pressing non-metal materials such as coke and slag powder

Advantages of metal briquette press

1. Hydraulic drive, stable operation, no vibration, safe and reliable;

2. Simple equipment foundation is needed;

3. It is controlled by PLC and can be operated manually or automatically.

4. Automatic feeding mechanism can be added according to user's requirements.

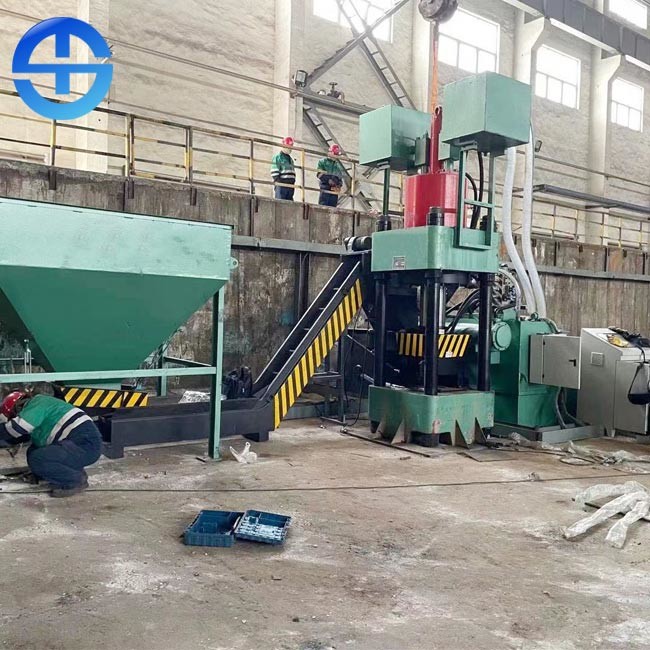

Working process of metal briquette press

First, put the loose material into the storage bin at the back of the machine. The material in the storage bin enters the forming

mold of the machine. The hydraulic rod directly above the machine keeps dropping, and the loose material is compressed into a compact high-density material blocks. The working efficiency of this machine is very high, it can produce 4-5 pieces in one minute. The machine adopts PLC program for automatic control, which can realize fully automatic continuous production.

Technical data of metal briquette press

Sr. No. Type name Model or Data
Main cylinder Acceleration cylinder Push block cylinder Feeding cylinder
1 Nominal pressure 5306KN 358KN 500KN 150KN
2 Inner diameter of cylinder Φ520mm φ135mm Φ200mm φ110mm
3 Piston diameter Φ300mm Φ70mm Φ80mm φ70mm
4 Stroke 430mm 440mm 240mm 390mm
5 System Max.pressure 25Mpa 25Mpa 16Mpa 16Mpa
6 Upper and lower beams Integral steel casting
7 Main pressure cylinder Integral steel casting
8 Motor 2 sets 30kw
9 Oil pump 2 sets 80MCY14-1B
10 Briquette density ≥2.0T/m3 (Aluminum powder)
11 Briquette size Φ200mm (Aluminum powder)
12 Work efficiency 3-5 pieces / min
12 Production 8-10 ton / 8 hours (Aluminum powder)
13 System control PLC program control, with adjustable text display; cartridge valve block
14 Cooling mode 12m2 water cooler, automatic temperature control
15 Operation mode Manual / Full automatic
16 Machine size 2600*3200*4000mm
17 Machine weight 15000kg
