φ80mm*(60-80mm) Hydraulic Scrap Briquetting Press Aluminum Copper

Minimum Order Quantity : 1 set Price : USD16700-17400 per set
Packaging Details : Exported ply wooden case Delivery Time : 10 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 20 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: TMS-1500

Detail Information

Name: Briquetting Press Function: Press Metal Powder Into Cake
Power: 15kw Size Of Briquette: Φ80mm*(60-80mm)
Weight Of Briquette: 2-2.5kg Capacity: 3 Block/min
High Light:

80mm Scrap Briquetting Press

,

60mm Scrap Briquetting Press

,

80mm aluminum briquetting machine

Product Description

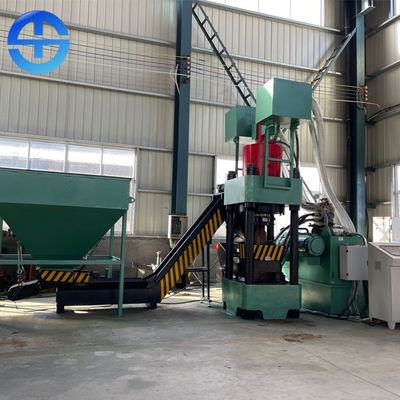

Φ80mm*(60-80mm) Size Hydraulic Scrap Briquetting Press

Intruoduction of briquetting press

It is mainly used for directly pressing metal raw materials such as cast iron scrap, steel scrap, copper scrap, aluminum scrap and high-quality mineral powder into 3-6kg cylinder or other shape cakes by high pressure cold pressing, so as to facilitate storage and transportation and reduce the loss of transportation and smelting in the process of recycling.

Features of briquetting press

1. The system is designed with pre release device to eliminate the hydraulic impact completely.

2. Advanced fast device to ensure the production needs of users.

3. The electrical part adopts imported PLC automatic control system, with strong anti-interference ability and low failure rate.

4. The machine body adopts integral steel structure, high strength and good stability, so it is unnecessary to install foundation screw.

5. This machine adopts hydraulic transmission, highly professional integral valve block, super large flow diameter, so that the system pressure loss is less and the leakage is eliminated.

6. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect. Even in the case of long-term heavy load, the system will not be unable to work.

Application of briquetting press

Without adding any additives, various granulated and powdered cast iron, aluminum, copper, magnesium, titanium, molybdenum can be pressed into high-density blocks and smelted directly into the furnace, which greatly reduces the cost.

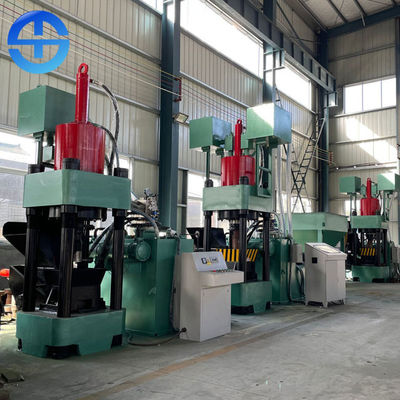

Component of briquetting press

① Main machine: it is composed of frame, main hydraulic cylinder, pushing hydraulic cylinder, bottom plate hydraulic cylinder, matching mold frame and mold, pressure head, etc.

The frame part is composed of upper and lower beams and columns. The upper and lower crossbeams are all made of integral steel casting. The upper and lower crossbeams are connected with four columns by inner and outer nuts to bear the tension during operation.

② Hydraulic station: it is composed of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system for connecting briquetting machine. The design is reasonable and the quality is stable. Equipped with cooling system to avoid continuous operation of equipment due to oil temperature overheating.

③ Console: it is composed of electrical system and PLC control system.

Equipped with adjustable text display, the action sequence and each action time are completely controlled by PLC system, and can be adjusted by the operator at any time, which is convenient and easy to understand.

Technical parameters of briquetting press

Model TMS-1500
Inner diameter of main cylinder φ250mm
Size of briquette Φ80mm*(60-80mm)
Density of briquette ≥5
Weight of briquette 2-2.5kg
Capacity 3 blcok/min
Power 15kw
Production 0.25-0.3
Remark Manual
