Red 2-3 Ton/Day Radiator Recycling Machine Copper Radiator Separating Machine

Minimum Order Quantity : 1 Set/Sets Price : US $4,000-6,500 / Sets
Packaging Details : copper radiator separating machine is packed by ply wooden case which meet export standard. Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Set/Sets per Month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE,CO,ISO Model Number: TMS-016

Detail Information

Name: Radiator Recycling Machine Material Processed: Scrap Radiators
Power: 3 Kw+4 Kw Capacity: 2000-3000 Kg/day
Dimension: 1800*800*1200 Mm Weight: 600 Kg
Function: Separator Copper And Aluminum Voltage: 380v/50HZ(as Customers' Request )
High Light:

copper wire granulator separator


copper cable granulator machine

Product Description

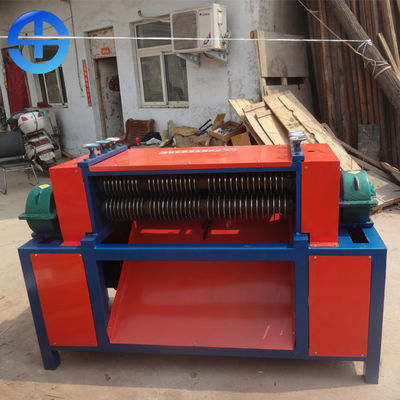

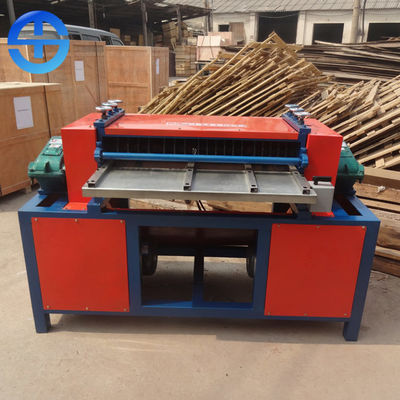

Red 2-3 Ton/Day Radiator Recycling Machine Copper Radiator Separating Machine


Introduction of radiator recycling machine


The radiator recycling machine can quickly separate the copper pipe and aluminum foil of the old air-conditioning radiator without damaging the copper pipe. The foil is lumpy and not powdered. A device can handle a variety of radiator specifications. After separation, copper and aluminum can be sold separately to increase revenue. This equipment can be widely used in waste air conditioning, old radiator, waste water tank, and other materials. It can be used to realize the fast crushing and separation operation by this machine. This machine is easy to operate, high efficiency, labor saving, and has a broad market prospect, and is a fast and feasible project to become rich.

Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.


Technical data of radiator recycling machine


Model Dimension Capacity Power Weight Motor
TMS-016 1800*800*1200 mm 2000-3000 kg/day 3+4 kw 600kg customised


Features of radiator recycling machine


1. It is suitable for many kinds of materials, such as waste air conditioner, old radiator, copper and aluminum in waste water tank, etc.

2. One machine can handle 19mm, 21mm, 25mm of different specifications.

3. The separation rate can reach 99.9%.

4. Small floor area and low requirement for site.

5. Compact structure, convenient operation and maintenance, one person can do it.

6. The separation speed of copper tube and aluminum foil is fast and the work efficiency is high.


Structure of radiator recycling machine


This machine is consisted of a frame, two motors, two speed reducers, material feeding part, material cutting part, material separation part, transmission part and material feeding panel.


Notes before Working


Before delivery, the machine is already adjusted to the condition for processing radiators on the main market (19mm, 21mm, 25mm).

1. Check if the power is connected well;

2. Check if the Guiding Rulers for each part is at the right position;

3. Check if the two Adjusting Wheels of each pair (total three) are on same level;

4. Start the machine and check if the machine is running at the right direction.

Red 2-3 Ton/Day Radiator Recycling Machine Copper Radiator Separating Machine 0
