100% Separating 3-4 Ton /Day Radiator Recycling Machine

100% Separating 3-4 Ton /Day Radiator Recycling Machine

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-016

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Packed by ply wooden case which meet export standard.
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets per Month
Get Best Price Contact Now

Detail Information

Name: Radiator Recycling Machine Power: 3 Kw+4 Kw
Capacity: 2000-3000 Kg/day Dimension: 1800*800*1200 Mm
Weight: 600 Kg Function: Separator Copper And Aluminum
Voltage: 380v/50HZ Or As Customers' Request Port: Qingdao, Shanghai, Guangzhou, Tianjin
High Light:

copper separator machine


aluminum recycling machine

Product Description

100% Separating 3-4 Ton /Day Radiator Recycling Machine


Description of radiator recycling machine

Radiator copper and aluminum stripping machine is used to strip the scrap radiator for recycling copper and aluminum. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm. Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

Technical Parameters of radiator recycling machine
Dimension Capacity Power Weight Motor
1800*800*1200 mm 2000-3000 kg/day 3+4 kw 600kg 380V/50HZ


Features of radiator recycling machine


1. Compact structure, taking up small area.

2. Humanized design, easy to operate.

3. High efficiency, separation within seconds.

4. Labor saving, use automatic recycling instead of labor working.

5. No damage to copper pipes, no copper loss, practical and economical.

6. Low investment, high profit.


Application of radiator recycling machine


1. The machine is suitable for both air conditioning radiators and car radiators.

2. The machine is suitable for separating one layer and two layers of radiators. For radiators of more than 2 layers, please use a band saw to cut them into one layer or two layers.

3. Center distance of two copper pipes in radiators shall be 19mm or 21mm or 25mm. We could also customize as per the specific conditions.


Working Process of Radiator recycling machine


1. Cut the iron heads off the two sides of the radiator in case they will damage the blades.

2. Cut the radiators to 30-40cm wide with a band saw to fit the width of material inlet (We also provide the band saw if you need it).

3. To process two-layer radiators, remove the roller from the Lower Cutter Shaft to expose the blades.

4. Push radiators into material inlets according to the respective center distance, the left(right) side of radiators must touch the left(right) side of material inlet, thus each feeding gear will be at the middle of each two copper pipes.

5. For two-layer radiators, the first copper pipe in the upper layer shall be nearer to the left side, otherwise the copper pipes won’t come out. You can also make the right side of radiators touch the right side of material inlets, then the first copper pipe in the lower layer shall be nearer to the right side.

6. Feeding gears gnaw at radiators and take them into the machine, the blades are right above each copper pipe and gash the aluminium foil, then copper pipes and aluminum will come out from the outlet automatically.

High performance radiator recycling machine 100% radiator copper and aluminum stripping machine.

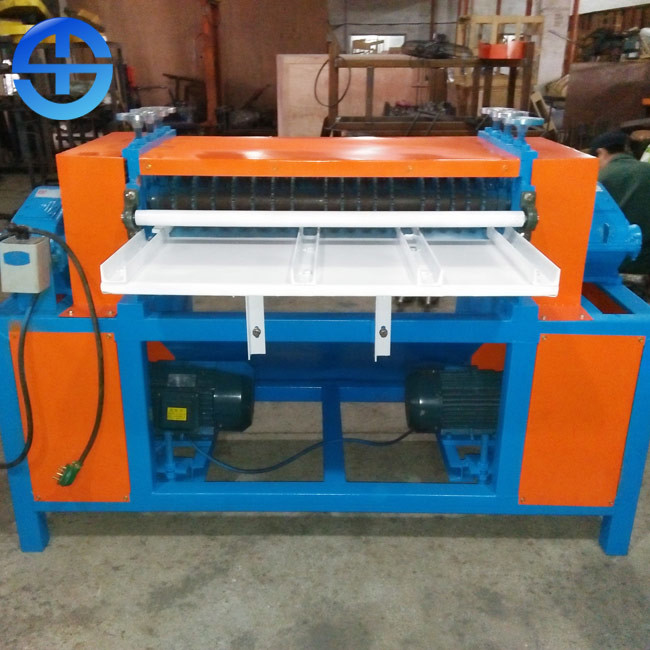

100% Separating 3-4 Ton /Day Radiator Recycling Machine 0

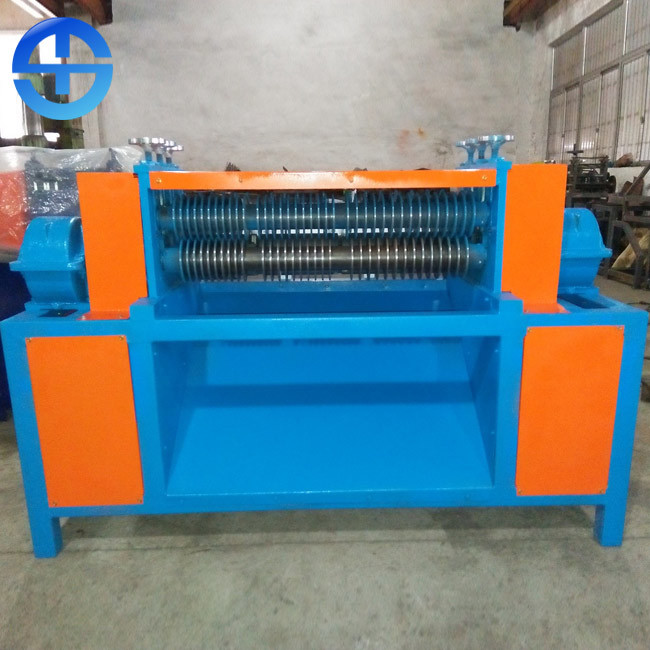

100% Separating 3-4 Ton /Day Radiator Recycling Machine 1
