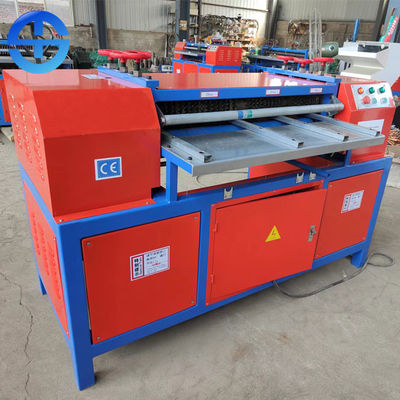

Scrap Radiator Recycling Machine 100% Separating 3kw 4kw Power

Minimum Order Quantity : 1 Set/Sets Price : Negotiable
Packaging Details : Ply wooden case which meet export standard for Scrap radiator recycling machine Delivery Time : 7 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 60 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: TMS-017

Detail Information

Name: Scrap Radiator Recycling Machine Material Processed: Various Radiators
Function: Recycling Copper Pipes Motors Power: 3 Kw+4 Kw
Production: 2-3 Ton/day Dimension: 1.8*0.8*1.2m
Net Weight: 600 Kg Voltage: 380V/50HZ, 3 Phase
High Light:

Scrap Radiator Recycling Machine


4kw Power Radiator Recycling Machine


Radiator Recycling Machine 100% Separating

Product Description

100% Separating 3kw 4kw Power Scrap Radiator Recycling Machine


Description of scrap radiator recycling machine


Air conditioner radiators are almost exclusively made of copper pipe and aluminum fin. To recycle scrap AC radiator, copper and aluminum are to be separated to get a higher price. Our radiator recycling machine is designed to separate complete copper pipe from aluminum fin. Our radiator recycling plant can crush whole radiators to recycle metal pieces separately.

Scrap radiator recycling machine is designed to separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm. Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.


Technical parameters of scrap radiator recycling machine


Model TMS-17
Dimension 1.8*0.8*1.2m
Production 2-3 ton/day
Motor power 3kw & 4kw
Weight 600kg
Voltage 380V/50HZ, 3Phase or Customized


Features of scrap radiator recycling machine


1. Compact structure, taking up small area.
2. No damage to copper pipe, no copper loss.
3. Safe and easy operation, high efficiency.
4. Center distance can be tailor-made to fit your conditions.
5. Voltage can be tailor-made to fit your conditions.


Structure of scrap radiator recycling machine


Radiator recycling machine is consisted of a frame, two motors, two speed reducers, material feeding part, material cutting part, material separation part, transmission part and material feeding panel.


Material Preparation of scrap radiator recycling machine

1. Iron heads of radiators must be cut off the two sides of radiators;

2. Radiators must be cut with a band saw according to the width of each Material Inlet;

3. Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw;

4. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective);

5. This machine is suitable for processing one layer radiators when it is shipped to customers. When you need to process two-layer radiators, just remove the iron covers from the Lower Blade Roller to expose the blades.

6. When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet.

7. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.

8. When radiators are fed into Material Inlets correct, each Feeding Gear at the Material Inlet must be at the middle of each two copper pipes; or copper pipes and aluminum will not be separated.

9. Twisted radiators can not be processed.

Scrap Radiator Recycling Machine 100% Separating 3kw 4kw Power 0
