CE Approved Radiator Recycling Machine Aluminum Radiator Peeling Machine

Minimum Order Quantity : 1 Set/Sets Price : US $4,000-6,500 / Sets
Packaging Details : aluminum radiator peeling machine is packed by ply wooden case which meet export standard or full container for large quantity Delivery Time : 8 work days after receipt of the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Set/Sets per Month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE, ISO, CO Model Number: TMS-017

Detail Information

Condition: New Name: Aluminum Radiator Peeling Machine
Power: 3 Kw+4 Kw Capacity: 2000-3000 Kg/day
Dimension: 1800*800*1200 Mm Weight: 650 Kg
Function: Separator Copper And Aluminum Voltage: 380v/50HZ(as Customers' Request )
Warranty: 12 Months Color: Customer Requirement
High Light:

copper wire granulator separator


copper cable granulator machine

Product Description

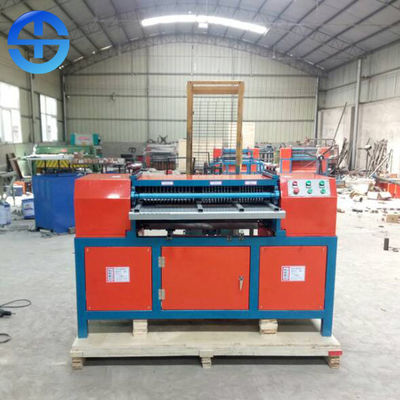

CE Approved Radiator Recycling Machine Aluminum Radiator Peeling Machine 0


Product Description

Aluminum radiator peeling machine is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm

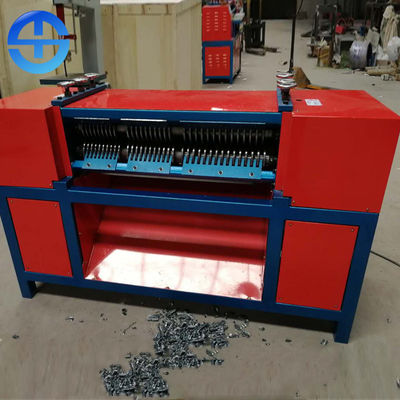

CE Approved Radiator Recycling Machine Aluminum Radiator Peeling Machine 1


Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

Main Features

1. Humanized design, easy to operate.
2. High efficiency, separation within seconds.
3. Labor saving, use automatic recycling instead of labor working.
4. No damage to copper pipes, no copper loss, practical and economical.

Technical Parameters
Model Dimension Capacity Power Weight Motor
TMS-017 1800*800*1200 mm 2000-3000 kg/day 3+4 kw 650kg customised
Packaging & Shipping

Aluminum radiator peeling machine is packed by export standard ply wooden case. It is solidly and can not broken during transportation.

CE Approved Radiator Recycling Machine Aluminum Radiator Peeling Machine 4

Our Services

1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.

2. We also can send our engineer to your place to guide you and your worker to operate this machine.

3. Extra blades will be sent to you free when deliver this machine.


1. Is there quick-wear part on the machine?

The spare part of the machine is blades, their use life is more than 2 years, and we could also supply blade sharping machine to you for maintenance.

2. How many layers of radiator can separat for this machine?

This machine can separate one and two laryers. More than 2 layers, the band saw machine will be used to cut it into one or two layers.

3. Is the machine easy to operate? How many workers required to operate it?

We design precise but simple control system for the machine.  And one or two worker is required.
