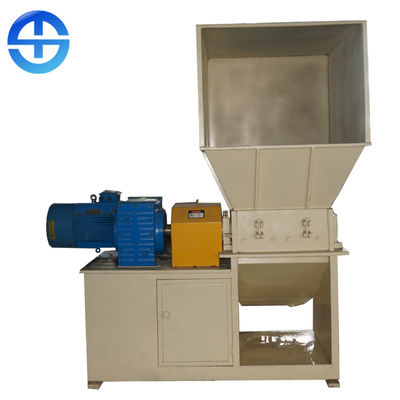

22 Kw Dual Shaft Shredder Four Corner Rotary Blades Low Speed CE Approved

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Ply wooden case or loaded into a full container Delivery Time : 15 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 sets per month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE, ISO Model Number: TMS-800

Detail Information

Name: Metal Shredder Machine Application: Copper, Aluminum, Woood Etc
Power: 22 Kw Capacity: 1.5-2 Ton/h
Weight: 3500kg Speed: 40 R/min
Size: 1900*1100*2500mm Type: Double Shaft
Function: Shredding
High Light:

scrap metal shredder machine


two shaft shredder

Product Description

CE approved 800 model metal shredder machine for scrap metal recycling field


Metal shredder machine with functions of start, stop, reverse, overload reverse automatically, with feature return and overload returns automatically, with characteristics of big torque in low speed and low noise. Application: scrap wires, copper, aluminum, lead, car tires tubs etc.

Working process

The double shaft crusher is driven independently by two shaft, so that the material can be pressed correspondingly in production to achieve the function of automatic feeding. Unique shaft structure and four-corner rotary blades will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. This equipment is suitable for crushing various materials with high toughness and viscidity.


Model Power (kw) Capacity (T/H) Speed (r/min) Dimension (mm) Weight (kg)
TMS-500 22 1.5-2 20 1900*1100*2500 3500
