380V 1500kg/H Dual Shaft Shredder Machine 3000*1300*1850mm

380V 1500kg/H Dual Shaft Shredder Machine 3000*1300*1850mm

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: SSJ-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case or Full container for dual shaft shredder
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Shaft Shredder Machine Function: Shredding Scraps
Dimension: 3000*1300*1850mm Power: 2*22kw
Capacity: 1500kg/h Blade: 26 Pieces
Blade Materials: Alloy Voltage: 380 V /50HZ
High Light:

Alloy Dual Shaft Shredder Machine


3000*1300*1850 mm Dual Shaft Shredder


380V Dual Shaft Shredder Machine

Product Description

380V/50HZ Capacity 1500kg/h dual shaft shredder machine


Introduction of dual shaft shredder machine


Dual shaft shredder is also known as shear shredder, referred to as shredder. According to the actual situation in China, we will improve, develop and launch a series of dual shaft shredders with mature technology and advanced design to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in the world.


The dual shaft shredder is driven by two shafts independently, so that the materials are pressed correspondingly during production, and the automatic feeding function is achieved. The unique cutter shaft structure and four angle rotary cutter will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. The equipment is suitable for the crushing of various materials with high toughness and viscosity. It has many advantages in production, environmental protection and recycling.


Technical data of dual shaft shredder machine




Main body

Model SSJ-800
Body It adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension 3000*1300*1850mm
Power 2*22kw
Reducer 2*ZQ500
Reducer speed ratio 48.57
Frame 120*120 square tube welded






Quantity 26 pieces
Cutter head material Alloy
Cutter head hardness range 53-58
Cutter head diameter 260mm
Cutter head thickness 30mm
Blade type The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teeth Customized according to customer requirements
Shaft Spindle form Hexagonal shaft
Shaft diameter 130mm
Spacer Quantity 26 pieces
Capacity 1500kg/h


Features of dual shaft shredder machine


1. This machine can shred large block, basket, pipe, board, wood, tire and large roll film which are difficult to crush by single shredder.
2. Extra thick sheet metal precision processing composite structure frame, large angle hexagonal column strong rotation axis, large caliber and strong input hopper, so you can safely put into large raw materials;
3. In the thickness, shape, arrangement and other aspects of the design and processing of a unique rotary knife, strong shearing force, sharp edge, can be highly efficient crushing;
4. PLC control, when the handling material is too large, it has the function of positive and negative operation and shutdown to protect the body, and the safety measures are absolutely safe.
5. Low-speed operation, low noise, less dust;
6. The blade is made of special alloy steel and is durable.


Application of dual shaft shredder machine


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.

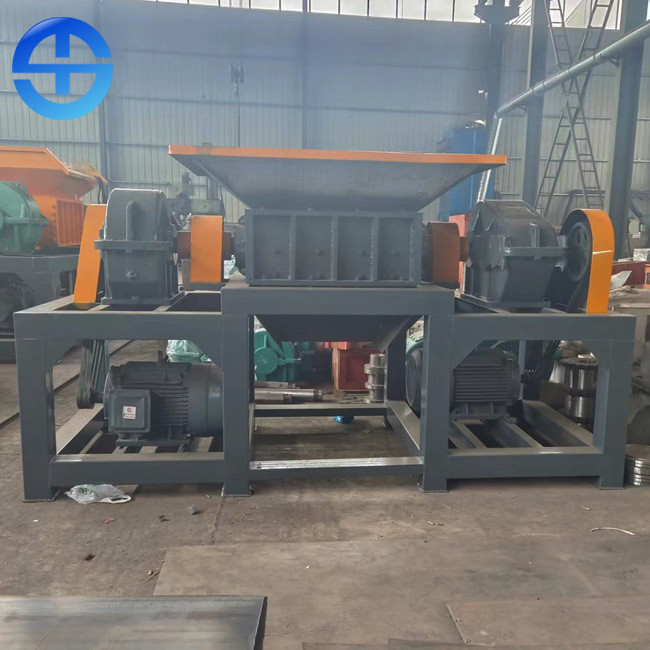

380V 1500kg/H Dual Shaft Shredder Machine 3000*1300*1850mm 0
