Industrial 1500kg/H Dual Shaft Shear Shredder 26 Pieces Blade
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
Minimum Order Quantity : | 1 set | Price : | Negotiated |
---|---|---|---|
Packaging Details : | Ply wooden case with 4200*2300*2700 mm or Full container | Delivery Time : | 20 work days |
Payment Terms : | L/C, T/T, Western Union, MoneyGram | Supply Ability : | 20 sets per month |
Place of Origin: | China | Brand Name: | TMS |
---|---|---|---|
Certification: | ISO, CO, CE | Model Number: | SSJ-600 |
Detail Information |
|||
Name: | Two Shaft Shredder | Function: | Shredding |
---|---|---|---|
Machine Size: | 2400*1100*1600 | Motor Power: | 2*15kw |
Productivity: | 600-800kg/h | Blade: | 20 Pieces |
Blade Materials: | 9crsi | Voltage: | 380 V Or Customized |
High Light: | 800kg/H Dual Shaft Shredder,600kg/H Dual Shaft Shredder,600kg/H dual shaft shear shredder |
Product Description

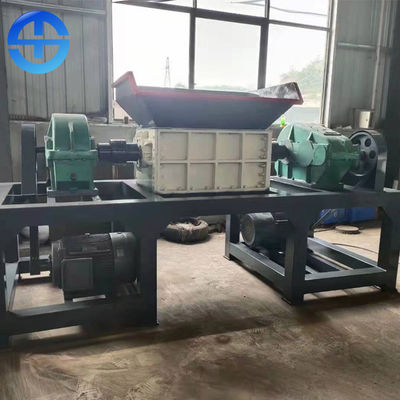

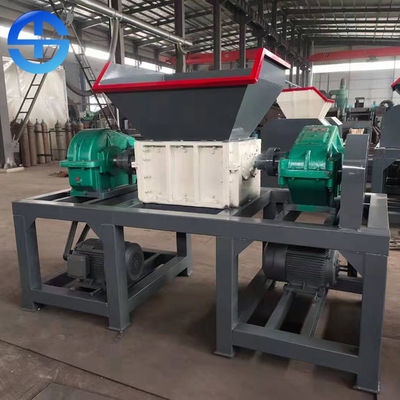

2*15kw Power 600kg/H 800kg/H Two Shaft Shredder
Introduction of two shaft shredder
The two shaft shredder is used to crush large hollow materials (large containers such as plastic barrels) and various mixed wastes, especially those containing metal, or pre crush those containing sediment and other wastes that are easy to wear tools.
The machine runs at low speed, and the noise and dust can reach high environmental protection standards. The thickness of the tool and the number of claws can be changed according to different materials.
The shredder is mainly composed of shredding blade group, bearing box, box support, feeding system, power system and electrical control system.
Technical data of two shaft shredder
Main body |
Model | SSJ-600 |
Body | It adopts split type for easy disassembly and assembly, welded by Q235 steel plate. | |
Dimension | 2400*1100*1600mm | |
Power | 2*15kw | |
Reducer | 2*ZQ400 | |
Reducer speed ratio | 48.57 | |
Frame | 100*100 channel steel welded | |
Blade |
Quantity | 20 pieces |
Cutter head material | 9crsi | |
Cutter head hardness range | 52-55 | |
Cutter head diameter | 220mm | |
Cutter head thickness | 30mm | |
Blade type | The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal | |
No. of cutter head teeth | Customized according to customer requirements | |
Shaft | Spindle form | Hexagonal shaft |
Shaft diameter | 100mm | |
Spacer | Quantity | 20 pieces |
Capacity | 600-800kg/h |
Features of two shaft shredder
1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.
2: The frame plate is thick, can resist high torque and is very strong.
3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.
4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.
5: Easy adjustment, low maintenance cost, economy and durability.
6: The thickness of the tool and the number of jaws can be changed according to different materials.
Application of two shaft shredder
1. Rubber: tires, various rubber products
2. Wood: Wood leftovers, wooden pallets, solid wood and branches
3. Bucket products: plastic bucket, metal bucket, paint bucket, IBC bucket and garbage can
4. Waste: domestic waste, medical waste, kitchen waste, industrial waste, garden waste, animal corpses, RDF derivatives, biological orange stalk
5. Plastic products: all kinds of plastic films, plastic bags, woven bags, plastic bottles, plastic frames, plastic blocks, plastic cans, packaging boxes, packaging barrels and plastic pallets
6. Waste metal: aluminum profile, oil filter, automobile shell, cans, metal cans, aluminum alloy, waste cast aluminum parts, engine shell, waste reinforcement, lead and steel plate with thickness less than 20mm.
7. Paper: newspaper, cardboard, corrugated paper, copy paper, book paper, kraft paper
8. Electronic and electrical appliances: refrigerator, washing machine, circuit board, laptop shell, TV shell, CD
9. Glass products: glass wool, glass cup and glass bottle
10. Pipes: large pipes, pipe fittings, PE pipes and PVC pipe fittings.
11. dangerous goods: solid hazardous waste, contaminated barrels, liquid solid waste, sprayers, industrial sludge, various radioactive hazardous wastes, and nuclear fuel rods.
