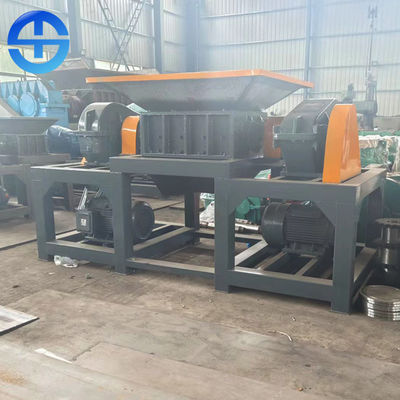

Model 800 2*22kw Motor Dual Shaft Shredder 1500kg / H For Scrap Metals

Model 800 2*22kw Motor Dual Shaft Shredder 1500kg / H For Scrap Metals

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: SSJ-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case or Full container for dual shaft shredder
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Shredder Function: Shredding
Machine Dimension: 3000*1300*1850mm Power: 2*22kw
Capacity: 1500kg/h Blade: 26 Pieces
Blade Materials: Alloy Voltage: 380 V /50HZ
High Light:

Motor Dual Shaft Shredder

,

1500kg/h Dual Shaft Shredder

,

Scrap Metals Dual Shaft Shredder

Product Description

Model 800 2*22kw Motor Dual Shaft Shredder For Scrap Metals



Introduction of scrap shredder



Double shaft shredder is also known as shear shredder, referred to as shredder. According to the actual situation in China, we will improve, develop and launch a series of dual shaft shredders with mature technology and advanced design to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in the world.



The dual shaft shredder is driven by two shafts independently, so that the materials are pressed correspondingly during production, and the automatic feeding function is achieved. The unique cutter shaft structure and four angle rotary cutter will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. The equipment is suitable for the crushing of various materials with high toughness and viscosity. It has many advantages in production, environmental protection and recycling.



Technical data of scrap shredder







Main body

Model SSJ-800
Body It adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension 3000*1300*1850mm
Power 2*22kw
Reducer 2*ZQ500
Reducer speed ratio 48.57
Frame 120*120 square tube welded









Blade

Quantity 26 pieces
Cutter head material Alloy
Cutter head hardness range 53-58
Cutter head diameter 260mm
Cutter head thickness 30mm
Blade type The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teeth Customized according to customer requirements
Shaft Spindle form Hexagonal shaft
Shaft diameter 130mm
Spacer Quantity 26 pieces
Capacity 1500kg/h



Features of scrap shredder



1. The dual shaft shredding machine is firm and durable. It is suitable for recycling all kinds of large solid materials, refractory materials, plastic containers, plastic barrels and plastic backing plates. Shredded particles can be as small as 20mm according to different needs. And we can provide all kinds of feeding buckets according to customer needs. The equipment has the advantages of low speed knife rotation, low noise and more energy saving.

2. It is composed of moving cutter head and fixed cutter to complete the function of chopping materials. The cutter head is composed of a base shaft and several moving cutter blocks in the shape of quadrilateral. The moving blade block has 4 cutting edges, which can be replaced. The moving cutter blocks are arranged in V-shaped rows along the base shaft, fixed on the base shaft with screws, and rotate together with the base shaft to form a moving cutter head. There are two groups of static knives, which are fixed on the frame. The material is pushed by the horizontal hydraulic cylinder to feed in the direction of the cutter head. The speed is stable and adjustable, and the propulsion force is large and uniform. It is suitable for recycling all kinds of large solid materials, irregular and difficult to treat materials, plastic containers, plastic barrels, tubes, films, fibers, paper, etc. The spindle speed is 45 ~ 100 rpm.

3. Different knife sticks can be selected for different materials. Correct selection of knife sticks can greatly improve the service performance and production efficiency of the equipment. Our factory now provides knife sticks: high-performance knife sticks, hard material knife sticks and film knife sticks.

4. While selecting different knife sticks, our factory also designs different installation methods of knife holder according to the characteristics of different materials: Welded movable knife holder, removable movable knife holder and integrated movable knife holder.



Working principle of scrap shredder



After entering the machine, the material is cut, torn and squeezed by the double shaft shredder to reduce the size of the material. The material is forced out of the machine after being split, broken and crushed to a size lower than the set size due to the bite and shear pull of the teeth made of the high hardness and wear-resistant materials that rotate alternately. In the process of shredding, if hard to break materials are encountered, they will be automatically reversed under the action of PLC automatic control system, and they will be reversed several times until the materials are broken and discharged. Nowadays, the double shaft shredder has been widely used for shredding waste plastics, waste rubber, wood and other large volume wastes.

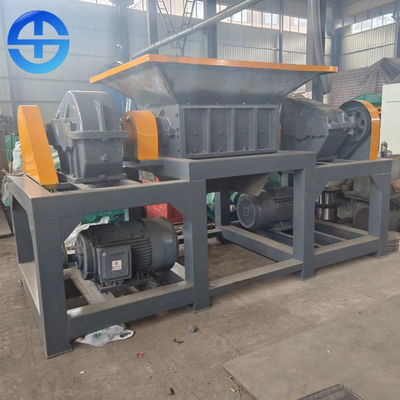

Model 800 2*22kw Motor Dual Shaft Shredder 1500kg / H For Scrap Metals 0
