2000-3000 Kg/H AC Copper Radiator Recycling Machine Radiator Stripper And Separator Machine

Minimum Order Quantity : 1 Set/Sets Price : US $4,000-6,800 / Sets
Packaging Details : radiator stripper and separator is packed by ply wooden case which meet export standard or Full container for large quantity Delivery Time : 5-8 work days after receiving the payment
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 Set/Sets per Month Radiator stripper and separator
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE,CO,ISO Model Number: TMS-017

Detail Information

After-sales Service Provided: Field Maintenance And Repair Service Warranty: 1 Year
Material Processed: AC Radiators Power: 3 Kw+4 Kw
Capacity: 2000-3000 Kg/day Dimension: 1800*800*1200 Mm
Weight: 650 Kg Function: Separator Copper And Aluminum
Voltage: 380v/50HZ(as Customers' Request ) Name: Radiator Stripper And Separator
High Light:

copper separator machine


plastic separator machine

Product Description

Product Description

Radiator stripper and separator is designed to strip and separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. There are three kinds of blade center distance: 19mm, 21mm and 25mm; that is to say it can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm

Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. When radiators are more than two layers, it will be cut into one layer or two layers by band saw machine.

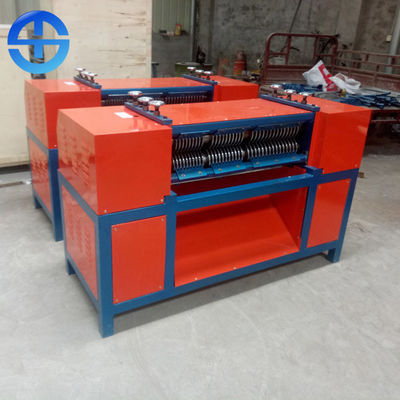

2000-3000 Kg/H AC Copper Radiator Recycling Machine Radiator Stripper And Separator Machine 0

Advantage of machine
1) Easy to operate and the occupied area is small.
2) Recovered copper pipes are unaffected, reduce the copper loss to the minimum,
3) Cutting the single and double-layer radiator takes only several seconds,
4) Electric box and covers for engine increases safety,
5) High-efficiency up to four tons of separated material per day
6) Low noise , power consumption and save labor
7) Three cutting widths allow to work with different radiators
8) It's possible to choose non-standard cutting widths
9) Can process multi-layered radiators
10) Separate all kinds of radiator, such as air conditioner radiator, car radiator

Technical Parameters
Model Dimension Capacity Power Weight Motor
TMS-017 1800*800*1200 mm 2000-3000 kg/day 3+4 kw 650kg customised
Packaging & Shipping

Radiator stripper and separator is packed by export standard ply wooden case. It is solidly and can not broken during transportation.

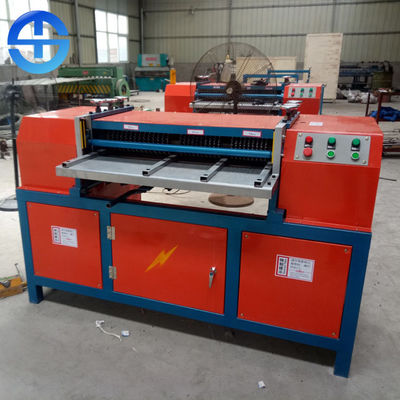

2000-3000 Kg/H AC Copper Radiator Recycling Machine Radiator Stripper And Separator Machine 2

Our Services

1. We provide good after-sale service. If spare part is broken not for man-made reason, we will send new one to you free.

2. We also can send our engineer to your place to guide you and your worker to operate this machine.

3. Extra blades will be sent to you free when deliver this machine.


1. Is there quick-wear part on the machine?

The spare part of the machine is blades, their use life is more than 2 years, and we could also supply blade sharping machine to you for maintenance.

2. How many layers of radiator can separat for this machine?

This machine can separate one and two laryers. More than 2 layers, the band saw machine will be used to cut it into one or two layers.

3. Is the machine easy to operate? How many workers required to operate it?

We design precise but simple control system for the machine.

One or two worker is required.
