Scrap Radiator Recycling Machine AC Radiator Separator 1800×800×1200 Mm

Scrap Radiator Recycling Machine AC Radiator Separator 1800×800×1200 Mm

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-17

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Packed by ply wooden case which meet export standard or Full container for large quantity
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Scrap Radiator Recycling Machine Separating Rate: 100%
Material Processed: AC Radiators Power: 3 Kw+4 Kw
Capacity: 5000 Kg/day Dimension: 1800*800*1200 Mm
Weight: 600 Kg Function: Separator Copper And Aluminum
High Light:

copper separator machine

,

aluminum recycling machine

Product Description

Model TMS-16 scrap radiator recycling machine with 5 ton per day

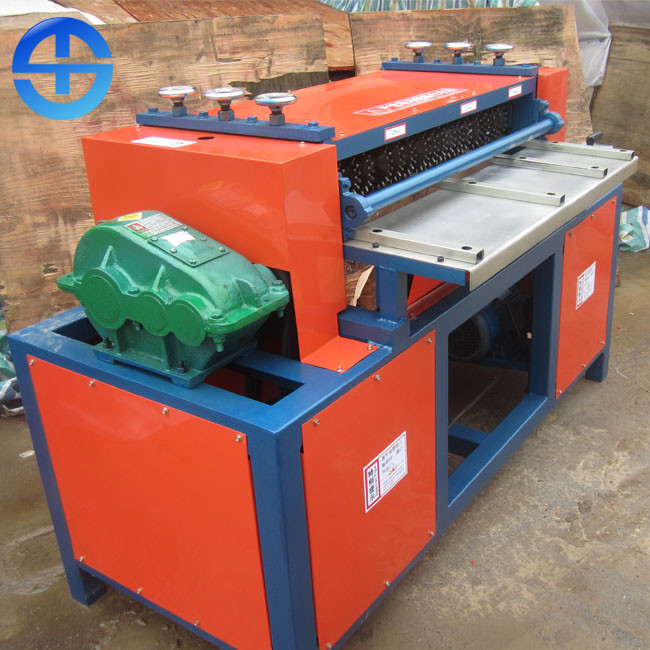

Scrap Radiator Recycling Machine AC Radiator Separator 1800×800×1200 Mm 0

Product details

Radiator separating machine is designed to separate the scrap radiator for recycling copper and aluminum with high efficiency and stable performance. It can strip the radiator whose copper tube center distance is 19mm, 21mm or 25mm.

Preparation

1. Turn the Reversing Switch and check the rotating direction.

2. Inject oil into the two oil holes in the left and right side of the machine to lubricate transmission gears (normally once per 4 working hours).

3. Push different radiators into different Material Inlets according to their specs (19mm, 21mm, 25mm); the left side of radiators must touch the left side of Material Inlets; or, the right side of radiators must touch the right side of Material Inlets (the first copper pipe in the Lower Layer shall be nearer to the Guiding Ruler, different with Ⅳ.6); when radiators are pushed into Material Inlets, Feeding Gears will gnaw at radiators and take them into the machine.

4. After radiators are taken into the machine, copper pipes and aluminum are separated and come out of the machine automatically.

5. According to the layers of radiators and their height, adjust each pair of Adjusting Wheels on the machine (after adjusting, tighten screws below).

Specifications

Dimension Capacity Power Weight Motor
1800*800*1200 mm 2000-3000 kg/day 3+4 kw 650kg customized

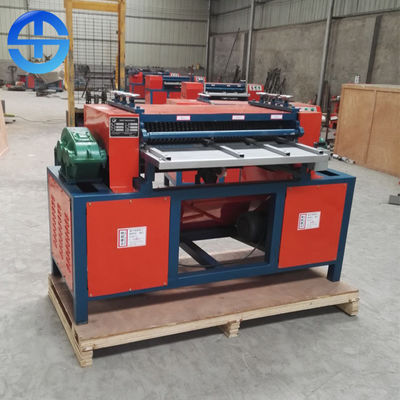

Scrap Radiator Recycling Machine AC Radiator Separator 1800×800×1200 Mm 1
