3kw 4kw 3000kg/day Copper Recycling Machine For Car Radiator

3kw 4kw 3000kg/day Copper Recycling Machine For Car Radiator

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-017

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: USD5720-5980 per set
Packaging Details: Ply wooden case which meet export standard for copper recycling machine
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Recycling Machine Raw Materials: Car Radiators
Usage: Recycle Copper Pipes Motors: 3kw+4kw
Daily Capacity: 2000-3000 Kg/day Machine Size: 1800*800*1200mm
Equipment Weight: 600kg Voltage: 380V, 220V, 240V/50 Or 60HZ
High Light:

3000kg/Day Copper Recycling Machine


4kw Copper Recycling Machine


3kw car radiator recycling machine

Product Description

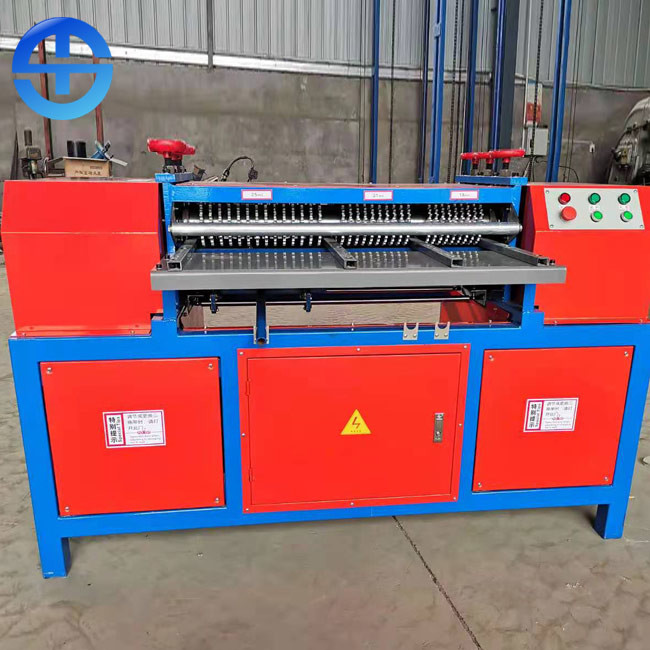

3kw 4kw Power Car Radiator Copper Recycling Machine

3kw 4kw 3000kg/day Copper Recycling Machine For Car Radiator 0

Brife of copper recycling machine

The waste radiator dismantling machine has strong pertinence. Mainly for waste air-conditioning radiator, refrigerator radiator, car radiator, etc., Radiators are almost exclusively made of copper pipe and aluminum fin waste radiator. The radiator can be effectively separated the copper pipe from the aluminum fin.

Copper recycling machine can completely strip copper pipes inside the discarded copper aluminum air conditioning radiator, aluminum foils also keep the type of blocks, can strip the production of single-layer and double-layer copper pipes by simply setting up the same machine, copper pipes and aluminum foils can be quickly separated with high efficiency and simple operation. There are three kinds of blade center distance: 19mm, 21mm and 25mm. Before processed, the radiators shall be cut with a band saw into pieces of certain width. It can separate one layer or two layers radiators. For more than two layers radiators, it will be cut into one layer or two layers by band saw machine. Twisted radiators can not be processed.

Advantage of copper recycling machine
1. No damage to copper pipe, no copper loss.

2. The user can adjust the blades using the handle provided.

3. This machine is simple in structure consisting of a frame, two motors, two speed reducers, material feeding part, material cutting part, material separation unit, transmission unit and a material feeding panel.

4. We can customise the machine depending on the distance between the copper tubes in the radiators you wish to recycle.

5. In terms of safety, set up the light eye control at the inlet of materials, and when working, set up the position by hand, and the machine stops running.

6. Small area and high efficiency. It has stable operation and exquisite painting process. And the efficiency is very high, and the output can reach 300kg/h. Greatly save the labor cost for customers.

7. It is time-saving, labor-saving, investment-saving, easy to operate and easy to maintain

Technical datas of copper recycling machine

Model TMS-17
Machine size 1800*800*1200mm
Daily capacity 2000-3000 kg/day
Motor power 3kw + 4kw
Equipment Weight 600kg
Voltage 380V/50 or 60HZ, 3 Phase or Customized

Material requirement of copper recycling machine
1. Iron heads of radiators must be cut off the two sides of radiators.

2. Radiators must be cut with a band saw according to the width of each Material Inlet.

3. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective).

4. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.

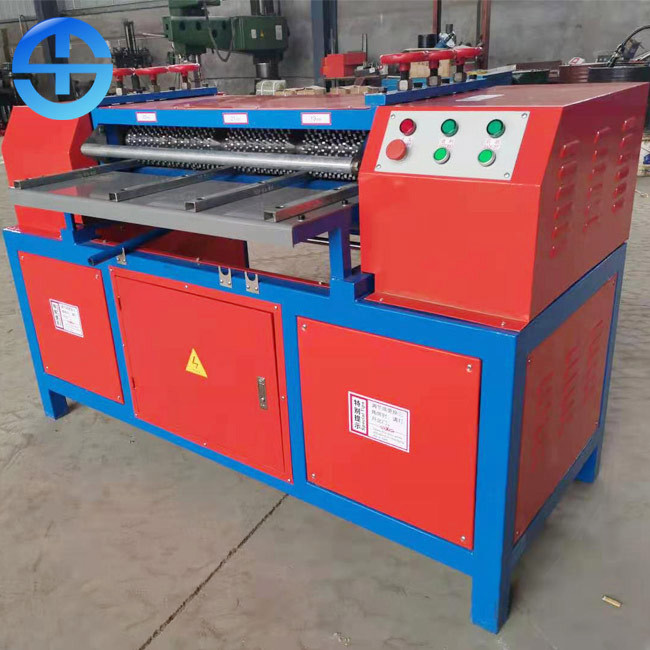

3kw 4kw 3000kg/day Copper Recycling Machine For Car Radiator 2
