500 kg/H Power 30 kw Single Shaft Shredder For Scraps

500 kg/H Power 30 kw Single Shaft Shredder For Scraps

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: TMS-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 31000-35000 per set
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Single Shaft Shredder Function: Shredding Scraps
Cutter Diameter: 220mm Power: 15kw
Capacity: 500kg/h Speed: 50 R/min
Weight: 1500 Kg Voltage: 380 V Or Customized
High Light:

30 kw Single Shaft Shredder


500 kg/H Single Shaft Shredder


500 kg/H one shaft shredder

Product Description

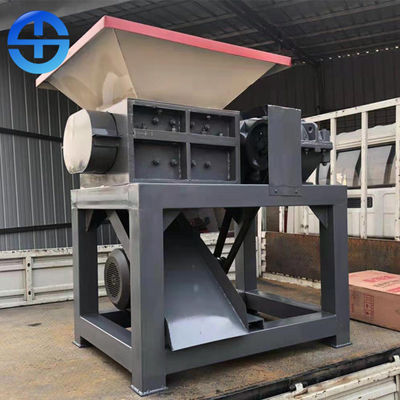

500 Kg/H Power 30 Kw Single Shaft Shredder For Scraps


Introduction of single shaft shredder


The single shaft shredder is mainly composed of blade spindle, fixed blade, bearing box, box support, feeding system, hydraulic pushing system, power system and electrical control system. It is mainly used to tear up waste materials such as wood, rubber, plastic and paper.


Specification of single shaft shredder


Model TMS-400
Power 15kw
Voltage 380v/50hz
Capacity 500kg/h
Speed 50 r/min
Size 1995*975*1900 mm
Weight 1500 kg


Features of single shaft shredder


1. It is suitable for tearing materials with strong winding, and a small amount of light and thin metal objects are allowed in the materials.

2. Low tool use and maintenance costs.

3. At the same power, the price is relatively low compared with double shaft shredder, three shaft shredder and four shaft shredder.

4. Convenient tool replacement.

5. The material size can be adjusted according to the size of the screen aperture.


Working principle of single shaft shredder

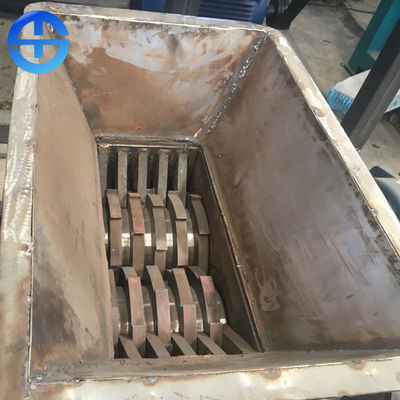

The materials enter the shredding box through the feeding system. The box carries the shredding blade. The pushing box pushes the materials near the blade. The materials are shredded into small pieces through the comprehensive effects of tearing, extrusion and shearing of the shredding blade and discharged from the screen hole.


After shredding by single shaft shredder


Instructions for use and maintenance of single shaft shredder


1. Before commissioning, strictly check whether the installation of each part of the machine meets the requirements and whether the screws and bolts are loose. At the same time, check the rotation direction. It is strictly prohibited to crush flammable and explosive articles to avoid accidents.

2. Uniform blanking shall be maintained during production to ensure crushing quality and normal production. At the same time, motor overload is strictly prohibited to ensure normal operation of the machine.

3. In addition to frequently checking the fastening and looseness of various parts, attention should also be paid to checking the wear of vulnerable parts. If the wear is serious, it should be replaced in time to avoid damaging the main parts. Fire prevention measures shall be taken.

4. Due to the high speed, in addition to the correct and firm installation, good lubrication shall be maintained to maintain the normal operation of the machine. Generally, it is normal that the bearing temperature does not exceed 70 ℃. Add butter and molybdenum disulfide to the main engine bearing once a week, and the effect of high-speed butter is better.


Application of single shaft shredder


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.


Equipment maintenance


1. Regularly check whether the connection of each connecting part on the equipment is loose

2. Check the current of the main motor of the equipment regularly

3. Regularly check whether the hydraulic system is normal

4. Check the tool wear regularly
