8-10 Ton / Day Bale Size 500*500mm Scrap Metal Baler Machine

Minimum Order Quantity : 1 set Price : USD51000-53600 per set
Packaging Details : Full container 40'GP for scrap metal baler machine Delivery Time : 30 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 10 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: 2500B

Detail Information

Item: Metal Baler Machine Usage: Press Scraps Into Bale
Power: 22kw + 22kw Nominal Pressure: 250 Ton
Material Box: 2000*1400*900mm Bale Size: 500*500mm
Bale Weight: 600-1000kg (scrap Copper) Bale Out: Turn Over
High Light:

500*500mm Scrap Metal Baler

,

10 Ton / Day Scrap Metal Baler

,

8 Ton / Day Scrap Metal Baler

Product Description

8-10 ton/day Bale Size 500*500mm Scrap Metal Baler Machine

Introduction of metal baler machine

Scrap metal baler can extrude all kinds of metal wastes (scrap, shaving, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap car, etc.) into qualified charges of cuboid, octagonal, cylinder and other shapes, which can not only reduce the transportation and smelting costs, but also improve the charging speed. This series of balers are mainly used in steel plant, recycling industry, nonferrous metal and ferrous metal smelting industry.


Technical parameters of metal baler machine

Sr. No.Type nameModel or Data
Main cylinderSide cylinderCover cylinderCylinder of Bale-out
1Nominal pressure2500KN2*1300KN800KN306KN
2Inner diameter of cylinderΦ340mm2*φ250mmΦ200mmΦ125mm
3Piston diameterΦ220mmφ160mmΦ140mmΦ70mm
4Stroke800mm1650mm1510mm295mm
5System Max.pressure25Mpa25Mpa25Mpa25Mpa
6Bale density≥1.8 t/m3 (Light & Thin material)
7Motor Power2*22KW-6 (380V/50HZ)
8Oil Pump2*HY160
9Single cycle time110 seconds (no-load)
10Material box size2000*1400*900mm
11Bale size500*500*(400-1000)mm
12Bale weight600-1000kg(scrap copper)
12Bale-outSide-out bale
13Operation modeManual (With operating table)
14Productivity8-10ton / day (scrap copper)
15Machine size

Body: 5400*3800*2500mm

Oil box: 1600*1300*1600mm

16OtherThere are blades on both sides of door cover and material box


Feature of metal baler machine

1. All models are driven by hydraulic pressure and can be operated manually or controlled automatically by PLC.
2. The methods of bale-out include turning, side pushing, forward pushing and manual picking.
3. A variety of models are available: different pressure, material box size, bale size and shape.
4. Where there is no power supply, diesel engine can be used as power.
Note: the size of material box and bale can be customized according to the actual needs of customers.

Structure of metal baler machine
1. Main machine is composed of frame, door cover and cover cylinder, main cylinder and main pressure head, side cylinder and side pressure head, bale turning cylinder and bale turning machine etc.
1) Frame is composed of base, right and left wall plates, cover plate, main cylinder bracket, side cylinder frame etc. Compressed bin is composed of base, right and left wall plates, door cover, main pressure head, side pressure head and panel turnover etc., each part (except panel turnover) is installed with abrasion resistant lining board through carburizing and quenching.
2) Door cover and cover cylinder. Door cover should be hinge jointed with spindle sleeve on right and left wall plates, cover cylinder should also be hinge jointed with beam support by pin, slipper of door cover (tapered end should be installed at front end) should be connected with piston rod head of cover cylinder, under movement of cover cylinder, close and open of door cover are finished, at this time, it takes effect of tight locking and loose locking.
3) Main cylinder and main pressure head. Main cylinder should be installed at lower side part of cover cylinder support, main pressure head should be connected with piston rod of main cylinder with screw, under the advance and retreat effect of main cylinder, impaction and return action of bale block are finished.

4) Side cylinder and side pressure head. Side cylinder should be installed at lower side part of cover cylinder support, side pressure head should be connected with piston rod of side cylinder with screw, under the advance and retreat effect of side cylinder, precompression and return action of bale block are finished.
5) Bale turning cylinder and bale turning mechanism. Bale turning cylinder and bale turning mechanism should be installed in opposite to the main cylinder, turnover and reset action of bale block are finished by advance and retreat of bale turning cylinder.
6) All main cylinder, side cylinder, cover cylinder and bale turning cylinder are of single piston rod double acting cylinder, there is a piston inside cylinder which is installed with sealing component, it makes the cylinder body form front and rear oil chambers. When high-pressure oil acts on front chamber (rear chamber), piston will be pushed and made advance movement (return movement). Cylinder port is designed with a guide sleeve that is used for supporting guides and sealing of piston rod.
2. Hydraulic system is composed of motor pump station, valve station, oil tank and pipeline etc.
3. Electric system is mainly composed of motor start circuit etc.

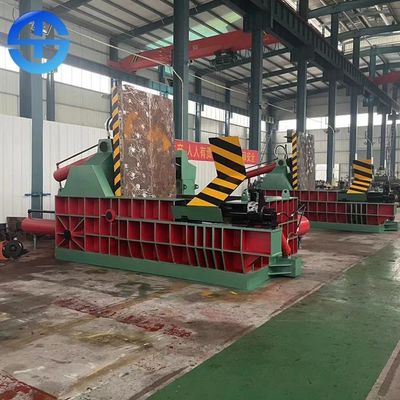

8-10 Ton / Day Bale Size 500*500mm Scrap Metal Baler Machine 0

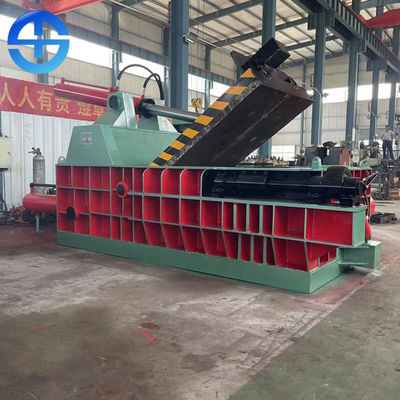

8-10 Ton / Day Bale Size 500*500mm Scrap Metal Baler Machine 1
