1300KN Nominal Force Scrap Metal Baler Bale Size 250*250mm

1300KN Nominal Force Scrap Metal Baler Bale Size 250*250mm

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 1300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD17000-18000 per set
Packaging Details: Full container 40'GP for metal baler
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 sets per month
Get Best Price Contact Now

Detail Information

Name: Metal Baler Function: Press Metal Into Bale
Total Power: 15kw Nominal Pressure: 1300KN
Material Box: 1200*700*550mm Bale Size: 250*250mm
Bale Weight: 60-80kg Bale Out: Turn Over
High Light:

1300KN Scrap Metal Baler


250*250mm Scrap Metal Baler


1300KN scrap baling machine

Product Description

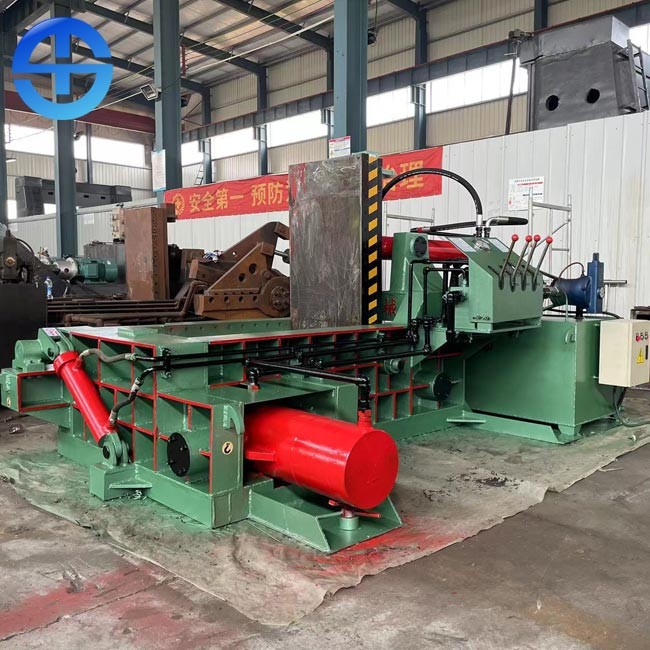

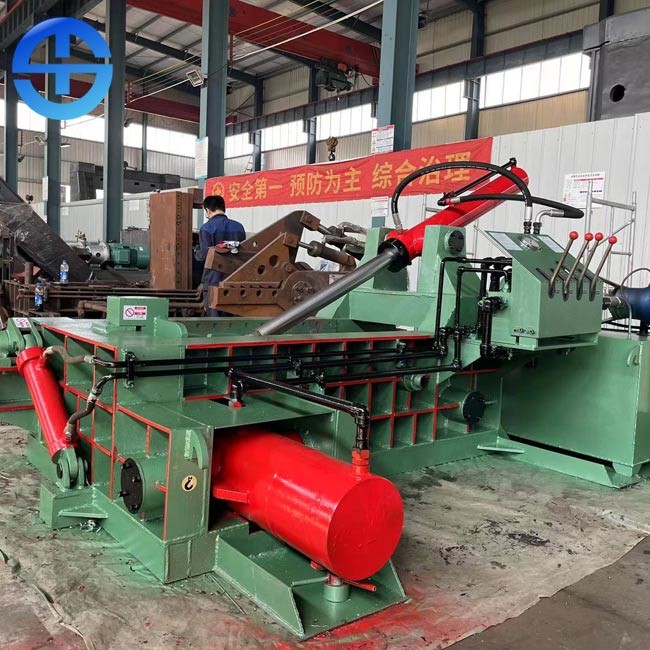

1300KN Nominal Force Bale Size 250*250mm Metal Baler


Introduction of metal baler


Metal baler machine can extrude various relatively large metal scraps, scrap steel, scrap iron, scrap copper, scrap aluminum, disintegrated automobile shell, waste oil barrel, etc. into qualified charges of various shapes such as cuboid, cylinder, octagon, etc. It is convenient for storage, transportation and recycling. After pressing into blocks, it is put into furnace to recover and use, and the loss is very low. The whole production process does not need heating, additives or other processes, direct cold pressing molding, molding together also ensures the original raw materials unchanged. For example, cast iron chips are used instead of cast pig iron. For the castings with special raw materials, the meaning of recovery is greater.


Technical parameters of metal baler
Model 1300B
Nominal pressure 1300KN
Power 15kw
Bale weight 60-80kg
Material box size 1200*700*550mm
Bale size 250*250mm
Bale-out mode Turn over / manual
Bale density ≥1800kg/m3
Production efficiency 8-12 ton/day


Feature of metal baler


1. Driven by hydraulic pressure. It works smoothly and safely.

2. Manual or PLC automatic control mode is adopted.

3. The discharging forms are: rollover bale, roll bale, forward bale or no bale.

4. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.

5. Product specifications and types: Metal balers have 63-600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.


Application industry of  metal baler


Scrap metal baler machine can squeeze various metal raw materials into qualified materials, and the recycling and processing industry and necessary equipment of metal smelting industry

(1). Extrusion of waste metal materials

Scrap metal baler can extrude waste metal raw materials into qualified materials, such as extrusion waste oil barrel, extrusion metal scrap, extrusion steel scrap, extrusion steel shavings, extrusion copper scrap, extrusion iron scrap, extrusion aluminum scrap, extrusion automobile shell, extrusion aluminum shavings and so on. After extrusion, the waste metal raw materials become qualified charge.

(2). Convenient recycling of waste metal

The shape of the extruded scrap is cylinder or cuboid. It is convenient for the storage, transportation or recycling of materials.

(3). Widely used in food, medicine, hardware, chemical industry, clothing, post and other industries, suitable for carton baling, paper baling, letter baling, medicine baling, light industry baling, hardware baling, ceramic baling, auto parts baling, daily chemical baling.


working principle of metal baler


One is to run the scrap metal baler machine with no load, start the motor oil pump, the spool of the directional valve is in the middle, the output oil of the oil pump returns to the oil cylinder through the electro-hydraulic directional valve under the pressure regulated by the relief valve, and the system is unola. The second is the hydraulic packing action. When the oil pump is working, the output of the oil pump enters through the control valve under the regulated pressure through the directional valve. The piston rod behind the main cylinder chamber slowly drops, and the oil in front of the cylinder is Rutu. The oil tank is connected to the oil tank through the reversing valve, and the packing machine realizes the packing function; finally, the metal hydraulic packer is reset, and the oil pump works, and the output of the oil pump is transferred to the front chamber of the main oil cylinder under the regulated pressure, and the oil returns to the oil tank and the packing box at the rear of the oil cylinder, and the oil tank returns.
