250 Ton Pressure Metal Scrap Baling Machine 500*500mm Bale Size

250 Ton Pressure Metal Scrap Baling Machine 500*500mm Bale Size

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: 2500B

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD51000-53600 per set
Packaging Details: Full container 40'GP for scrap metal baler machine
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 25 sets per month
Get Best Price Contact Now

Detail Information

Item: Scrap Metal Baler Machine Function: Press Scraps Into Bale
Power: 2*22kw Nominal Pressure: 250 Ton
Material Box: 2000*1400*900mm Bale Size: 500*500mm
Bale Weight: 600-1000kg (scrap Copper) Bale Out: Turn Over
High Light:

250 Ton Metal Scrap Baling Machine


500*500mm Metal Scrap Baling Machine


250 Ton metal recycling baler

Product Description

250 Ton Pressure 500*500mm Bale Size Scrap Metal Baler Machine


Introduction of scrap metal baler machine


Scrap metal baler can extrude all kinds of metal wastes (scrap, shaving, scrap steel, scrap aluminum, scrap copper, scrap stainless steel, scrap car, etc.) into qualified charges of cuboid, octagonal, cylinder and other shapes, which can not only reduce the transportation and smelting costs, but also improve the charging speed. This series of balers are mainly used in steel plant, recycling industry, nonferrous metal and ferrous metal smelting industry.


Technical parameters of scrap metal baler
Sr. No. Type name Model or Data
Main cylinder Side cylinder Cover cylinder Cylinder of Bale-out
1 Nominal pressure 2500KN 2*1300KN 800KN 306KN
2 Inner diameter of cylinder Φ340mm 2*φ250mm Φ200mm Φ125mm
3 Piston diameter Φ220mm φ160mm Φ140mm Φ70mm
4 Stroke 800mm 1650mm 1510mm 295mm
5 System Max.pressure 25Mpa 25Mpa 25Mpa 25Mpa
6 Bale density ≥1.8 t/m3 (Light & Thin material)
7 Motor Power 2*22KW-6 (380V/50HZ)
8 Oil Pump 2*HY160
9 Single cycle time 110 seconds (no-load)
10 Material box size 2000*1400*900mm
11 Bale size 500*500*(400-1000)mm
12 Bale weight 600-1000kg(scrap copper)
12 Bale-out Side-out bale
13 Operation mode Manual (With operating table)
14 Productivity 8-10ton / day (scrap copper)
15 Machine size

Body: 5400*3800*2500mm

Oil box: 1600*1300*1600mm

16 Other There are blades on both sides of door cover and material box


Feature of scrap metal baler machine


1. It is driven by hydraulic system, can be operated manually and automatically.

2. The discharge mode can choose to turn over the bale, push the bale out or take the bale out manually.

3. Installation is convenient and fast, no feet screw is needed. Diesel engine can be configured as power in no power supply area.

4. Improvement of production efficiency.

5. The shape and size of compression chamber and bale can be customized according to customer's requirements.


Principle of scrap metal baler machine


The basic principle of scrap metal baler is to use the nature that metal material can produce plastic deformation under the action of external force to give metal material enough (baler), external force that can gather and produce permanent deformation, so as to form a compact bundle. Therefore, the plastic deformation can not be produced, or the metal with small plastic deformation can not be directly baled. For example, high carbon steel, tool steel, steel wire rope and cast iron can not be directly baled.

Basic requirements of scrap metal baler

(1) There should be enough extrusion force. It can make the treated metal material produce plastic deformation bale and make the bale reach a certain required density.

(2) There should be a material box that can hold metal materials and can be closed to bear extrusion pressure. On the premise of meeting these two basic requirements, and according to different application requirements and different processing objects, there are many different types of scrap metal balers. The working principle of scrap metal baler is to use the working force to push the ram to extrude the metal material in a closed material box, so that the metal material can form a bale with a certain size and density.


Application industry of scrap metal baler machine


Scrap metal baler machine can squeeze various metal raw materials into qualified materials, and the recycling and processing industry and necessary equipment of metal smelting industry

(1). Extrusion of waste metal materials

Scrap metal baler can extrude waste metal raw materials into qualified materials, such as extrusion waste oil barrel, extrusion metal scrap, extrusion steel scrap, extrusion steel shavings, extrusion copper scrap, extrusion iron scrap, extrusion aluminum scrap, extrusion automobile shell, extrusion aluminum shavings and so on. After extrusion, the waste metal raw materials become qualified charge.

(2). Convenient recycling of waste metal

The shape of the extruded scrap is cylinder or cuboid. It is convenient for the storage, transportation or recycling of materials.

(3). Widely used in food, medicine, hardware, chemical industry, clothing, post and other industries, suitable for carton baling, paper baling, letter baling, medicine baling, light industry baling, hardware baling, ceramic baling, auto parts baling, daily chemical baling.

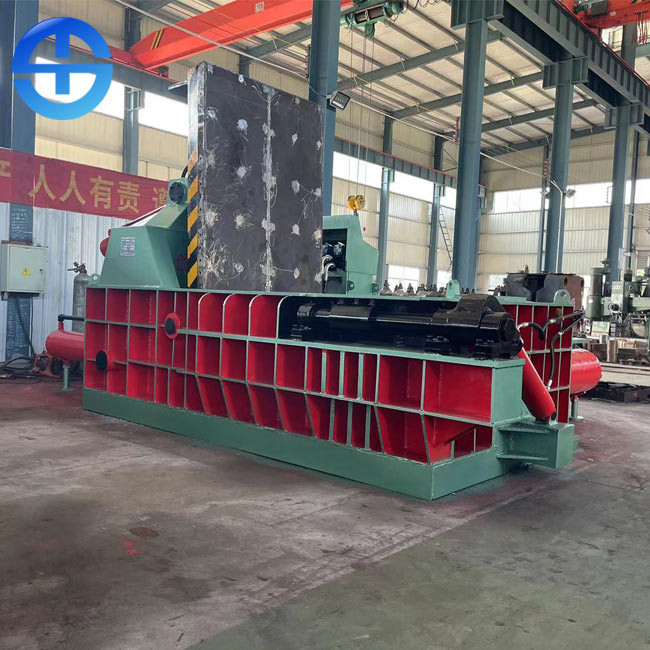

250 Ton Pressure Metal Scrap Baling Machine 500*500mm Bale Size 0

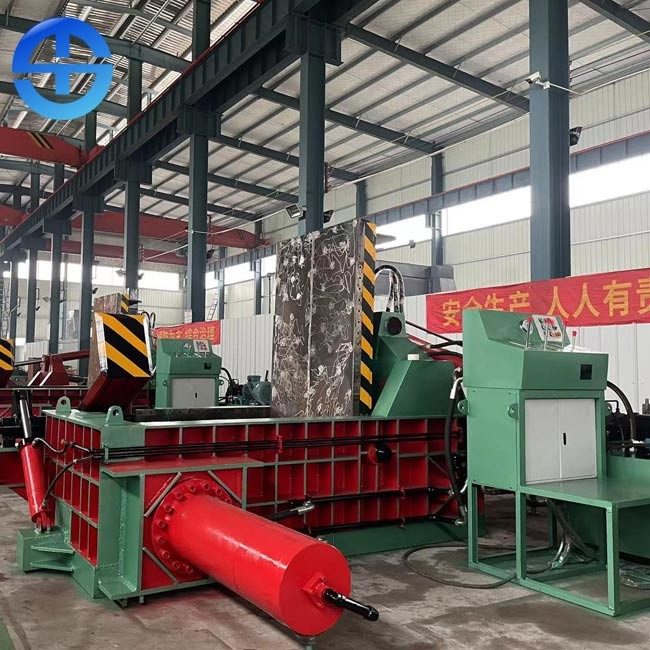

250 Ton Pressure Metal Scrap Baling Machine 500*500mm Bale Size 1
