1000*920*1270mm Dual Shaft Shredder Machine With 5.5kw Power

1000*920*1270mm Dual Shaft Shredder Machine With 5.5kw Power

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: SSJ-200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case with 4200*2300*2700 mm or Full container
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Shaft Shredder Function: Shredding Metals
Dimension: 1000*920*1270mm Motor: 5.5kw
Capacity: 100-200kg/h Blades: 13 Pieces
Gross Weight: 300kg Voltage: 380 V Or Customized
High Light:

5.5kw Dual Shaft Shredder Machine


200kg/h Dual Shaft Shredder Machine


5.5kw dual shaft shear shredder

Product Description

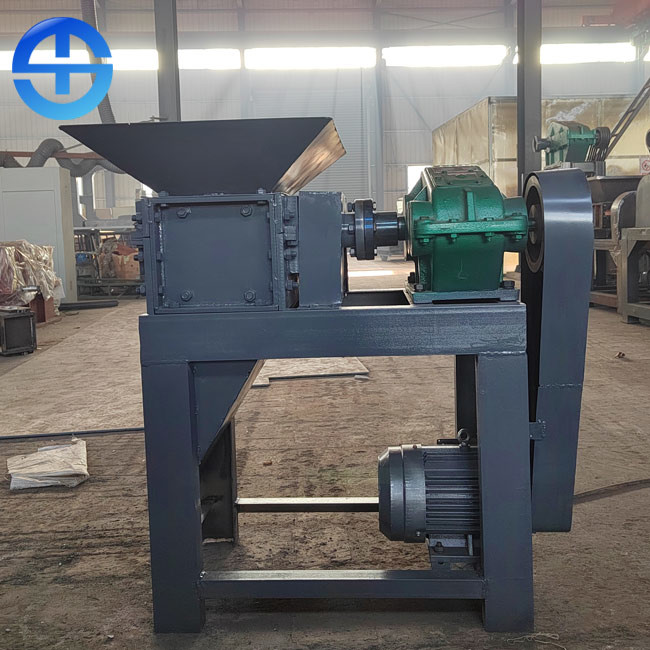

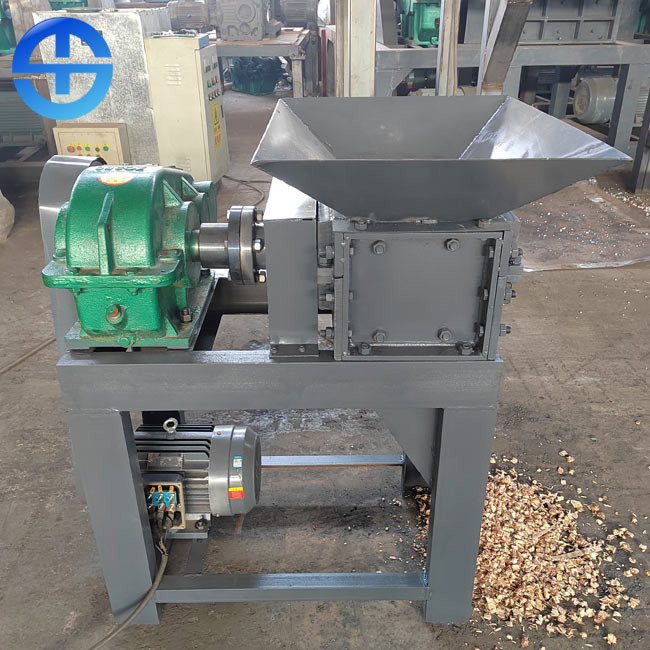

1000*920*1270mm Double Shaft Metal Shredder Machine With 5.5kw Power


Introduction of metal shredder


Metal shredder, also known as shear shredder, reduces the size of materials through shearing, tearing and extrusion. This shredder is widely used in waste plastics, waste rubber, wood, crop straw and other large volume wastes. It introduces more than 30 years of experience in manufacturing such equipment in Europe and America into China, and improves and develops it according to the actual situation in China, A series of double shaft shredders with mature technology and advanced design are launched to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in China.


Technical data of metal shredder




Main body

Model SSJ-200
Body It adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension 1200*650*1100mm
Power 5.5kw
Reducer BWD4 Cycloid needle
Reducer speed ratio 48.57
Frame 100*100 channel steel welded






Quantity 13 pieces
Cutter head material 9crsi
Cutter head hardness range 53-56
Cutter head diameter 150mm
Cutter head thickness 15mm
Blade type The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teeth Customized according to customer requirements
Shaft Spindle form Hexagonal shaft
Shaft diameter 70mm
Spacer Quantity 13 pieces
Capacity 100-200kg/h


Features of metal shredder


1. The design of the machine is reasonable, and the body is welded with high-quality steel.

2. It is fastened with high-strength screws, with solid structure and durability.

3. The design of the main machine is exquisite, and the broken material adopts the separation design to make its output higher.

4. The processed and broken pieces are uniform and the loss is small. A variety of screens can be replaced at the same time to meet different needs.

5. At the same time, it is equipped with tools of different materials, so that the tools can be retracted and adjusted for different materials, can be grinded after blunt, can be used for many times, and has a long service life.

6. The machine has the advantages of advanced structure, beautiful appearance, simple operation, stable operation, low investment and high efficiency.

7. Equipped with an enlarged pulley to increase the inertia of the crusher, which can save energy and strong crushing.


Application of metal shredder


1. Various hollow containers: plastic beverage cans, plastic barrels, iron barrels, packing boxes, packing barrels

2. Waste household appliances: TV, washing machine, refrigerator shell

3. Pipes: large pipes, pipe fittings, PE pipes

4. Waste formwork: wooden pallet, plastic pallet, forklift pallet

5. Waste tires: car tires, truck tires

6. Waste metal: automobile shell, aluminum alloy, waste aluminum castings, engine shell, lead and steel plate with thickness less than 5mm

7. Food waste, domestic waste, animal corpses, RDF derivatives, medical waste, biological orange stalk, garden waste

8. Rubber head material, paper mill rope.
