600kg/H 800kg/H 380V Aluminum Shredder Machine Two Shaft
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | ISO, CO, CE |
| Model Number: | SSJ-600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Ply wooden case with 4200*2300*2700 mm or Full container |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Name: | Two Shaft Shredder | Function: | Shredding Aluminum |
|---|---|---|---|
| Dimension: | 2400*1100*1600mm | Motor: | 2*15kw |
| Capacity: | 600-800kg/h | Blade QTY: | 20 Pieces |
| Blade Materials: | 9crsi | Voltage: | 380 V Or Customized |
| High Light: | 600kg/H Aluminum Shredder Machine,800kg/H Aluminum Shredder Machine,600kg/H aluminium shredder machine |
||
Product Description

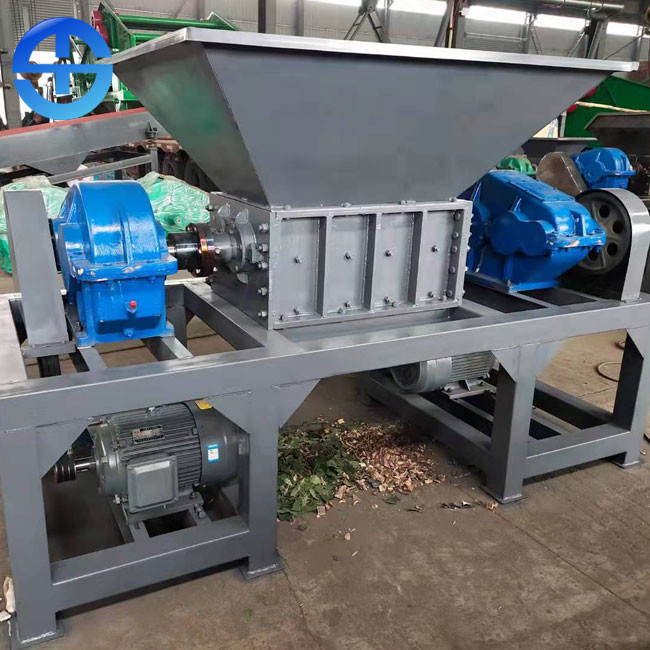

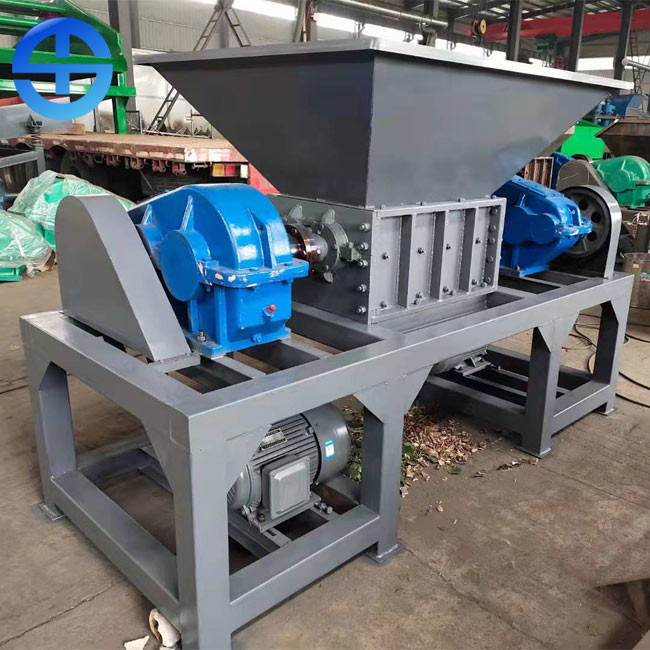

600kg/H 800kg/H 380V Aluminum Shredder Two Shaft
Introduction of aluminum shredder
The two shaft shredder is used to crush large hollow materials (large containers such as plastic barrels) and various mixed wastes, especially those containing metal, or pre crush those containing sediment and other wastes that are easy to wear tools.
The machine runs at low speed, and the noise and dust can reach high environmental protection standards. The thickness of the tool and the number of claws can be changed according to different materials.
The shredder is mainly composed of shredding blade group, bearing box, box support, feeding system, power system and electrical control system.
Technical data of aluminum shredder
|
Main body |
Model | SSJ-600 |
| Body | It adopts split type for easy disassembly and assembly, welded by Q235 steel plate. | |
| Dimension | 2400*1100*1600mm | |
| Power | 2*15kw | |
| Reducer | 2*ZQ400 | |
| Reducer speed ratio | 48.57 | |
| Frame | 100*100 channel steel welded | |
|
Blade |
Quantity | 20 pieces |
| Cutter head material | 9crsi | |
| Cutter head hardness range | 52-55 | |
| Cutter head diameter | 220mm | |
| Cutter head thickness | 30mm | |
| Blade type | The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal | |
| No. of cutter head teeth | Customized according to customer requirements | |
| Shaft | Spindle form | Hexagonal shaft |
| Shaft diameter | 100mm | |
| Spacer | Quantity | 20 pieces |
| Capacity | 600-800kg/h | |
Features of aluminum shredder
1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.
2: The frame plate is thick, can resist high torque and is very strong.
3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.
4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.
5: Easy adjustment, low maintenance cost, economy and durability.
6: The thickness of the tool and the number of jaws can be changed according to different materials.
Instructions for use and maintenance of dual shaft shredder
1. Before commissioning, strictly check whether the installation of each part of the machine meets the requirements and whether the screws and bolts are loose. At the same time, check the rotation direction. It is strictly prohibited to crush flammable and explosive articles to avoid accidents.
2. Uniform blanking shall be maintained during production to ensure crushing quality and normal production. At the same time, motor overload is strictly prohibited to ensure normal operation of the machine.
3. In addition to frequently checking the fastening and looseness of various parts, attention should also be paid to checking the wear of vulnerable parts. If the wear is serious, it should be replaced in time to avoid damaging the main parts. Fire prevention measures shall be taken.
4. Due to the high speed, in addition to the correct and firm installation, good lubrication shall be maintained to maintain the normal operation of the machine. Generally, it is normal that the bearing temperature does not exceed 70 ℃. Add butter and molybdenum disulfide to the main engine bearing once a week, and the effect of high-speed butter is better.
