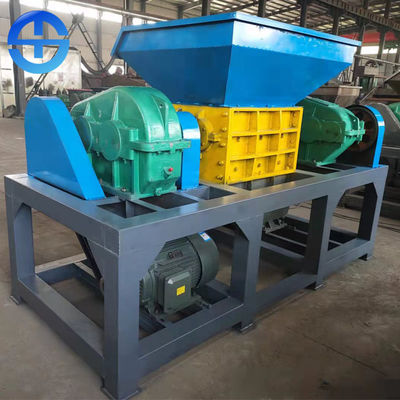

2*22kw Power 1500 Kg/H Dual Shaft Shredder For Waste Tire Industry

2*22kw Power 1500 Kg/H Dual Shaft Shredder For Waste Tire Industry

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: ISO, CO, CE
Model Number: SSJ-800

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiated
Packaging Details: Ply wooden case or Full container for dual shaft shredder
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Get Best Price Contact Now

Detail Information

Name: Dual Shaft Shredder Function: Shredding
Machine Size: 3000*1300*1850mm Motor Power: 2*22kw
Productivity: 1500kg/h Blade: 26 Pieces
Blade Materials: Alloy Voltage: 380 V /50HZ
High Light:

1500 Kg/H Dual Shaft Shredder


2*22kw Dual Shaft Shredder


Waste Tire Dual Shaft Shredder

Product Description

2*22kw Power 1500 Kg/H Dual Shaft Metal Shredder


Introduction of dual shaft shredder


The dual shaft shredder uses the strong torque generated after the speed ratio compression to drive the two shafts to rotate inward. During the rotation, the blade edge of the cutter head becomes small pieces after various shredding effects such as extrusion, tearing and tearing of metal materials under tight balance. Yongsheng shredder has low speed, large torque, low noise, five dust, low production capacity, high energy consumption and small land occupation. It is applicable to any working environment. According to the number of shafts, metal shredders can be divided into: double shaft shredder, three shaft shredder and four shaft shredder.


The dual shaft shredder can tear up metal waste materials such as paint bucket, machine oil bucket, color steel tile, automobile shell, automobile oil filter element, bicycle and scrap steel. It can also tear up waste materials such as automobile tires, large plastic pipes and large plastics into recyclable materials.


Technical data of dual shaft shredder




Main body

Model SSJ-800
Body It adopts split type for easy disassembly and assembly, welded by Q235 steel plate.
Dimension 3000*1300*1850mm
Power 2*22kw
Reducer 2*ZQ500
Reducer speed ratio 48.57
Frame 120*120 square tube welded






Quantity 26 pieces
Cutter head material Alloy
Cutter head hardness range 53-58
Cutter head diameter 260mm
Cutter head thickness 30mm
Blade type The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal
No. of cutter head teeth Customized according to customer requirements
Shaft Spindle form Hexagonal shaft
Shaft diameter 130mm
Spacer Quantity 26 pieces
Capacity 1500kg/h


Features of dual shaft shredder


1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.

2: The frame plate is thick, can resist high torque and is very strong.

3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.

4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.

5: Easy adjustment, low maintenance cost, economy and durability.

6: The thickness of the tool and the number of jaws can be changed according to different materials.


Working principle of dual shaft shredder


The metal shredder enters the material into the shredding box through the feeding system. The box is loaded with shredding blades. The materials are shredded into small pieces through the comprehensive effects of tearing, extrusion and shearing of the shredding blades and discharged from the lower part of the box.


Application of dual shaft shredder


The items that can be torn up by metal shredding machine are

(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.

(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.

(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.

(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.

(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.
