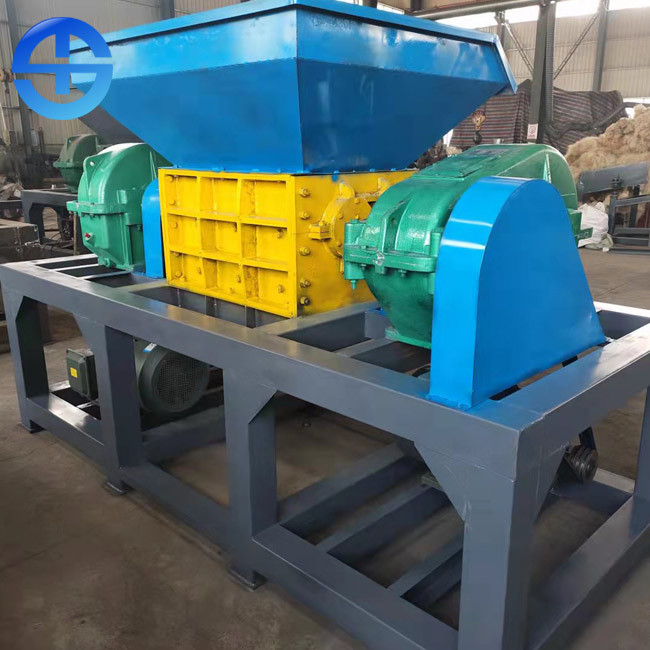

1500 Kg/H 3000*1300*1850mm Scrap Double Shaft Metal Shredder
Introduction of double shaft shredder
The double shaft shredder uses the strong torque generated after the speed ratio compression to drive the two shafts to rotate inward. During the rotation, the blade edge of the cutter head becomes small pieces after various shredding effects such as extrusion, tearing and tearing of metal materials under tight balance. Yongsheng shredder has low speed, large torque, low noise, five dust, low production capacity, high energy consumption and small land occupation. It is applicable to any working environment. According to the number of shafts, metal shredders can be divided into: double shaft shredder, three shaft shredder and four shaft shredder.
Technical data of double shaft shredder
|
Main body |
Model | SSJ-800 |
| Body | It adopts split type for easy disassembly and assembly, welded by Q235 steel plate. | |
| Dimension | 3000*1300*1850mm | |
| Power | 2*22kw | |
| Reducer | 2*ZQ500 | |
| Reducer speed ratio | 48.57 | |
| Frame | 120*120 square tube welded | |
|
Blade |
Quantity | 26 pieces |
| Cutter head material | Alloy | |
| Cutter head hardness range | 53-58 | |
| Cutter head diameter | 260mm | |
| Cutter head thickness | 30mm | |
| Blade type | The outer tooth adopts small hook angle outer triangular tooth shape, and the inner hole is hexagonal | |
| No. of cutter head teeth | Customized according to customer requirements | |
| Shaft | Spindle form | Hexagonal shaft |
| Shaft diameter | 130mm | |
| Spacer | Quantity | 26 pieces |
| Capacity | 1500kg/h | |
Features of double shaft shredder
1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.
2: The frame plate is thick, can resist high torque and is very strong.
3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.
4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.
5: Easy adjustment, low maintenance cost, economy and durability.
Application of double shaft shredder
The items that can be torn up by metal shredding machine are
(1). Wood processing industry: wooden pallets, branches, seats, wood, roots; Wisconsin environmental protection.
(2). Plastic products industry: mixed plastics, plastic buckets, rubber blocks, nozzle materials, garbage cans.
(3). Waste tire industry: automobile tires, tires with rough steel wire removed, rubber.
(4). Metal recovery industry: scrap iron and steel, lead, aluminum alloy, copper scrap.
(5). Electronic waste industry: electronic appliances, plugs, transformers, air conditioners, induction cookers, television.
