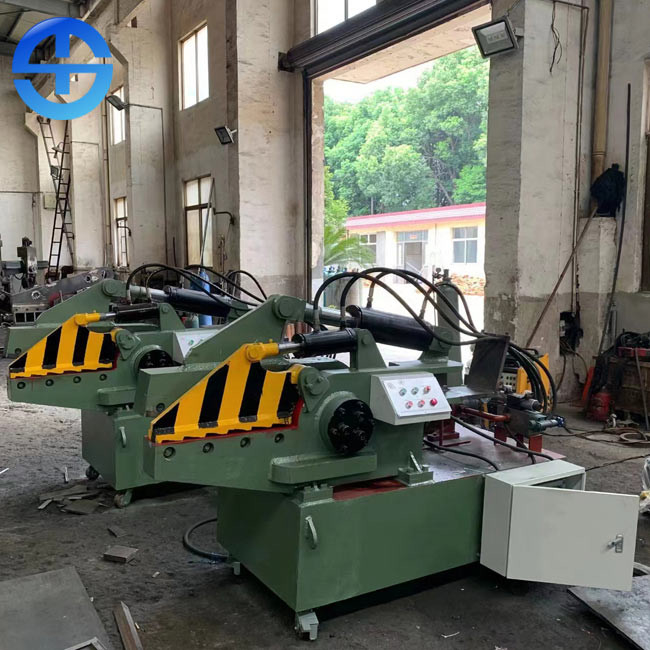

7.5kw Hydraulic Alligator Metal Shear 63 Ton Shear Force 280mm Opening

7.5kw Hydraulic Alligator Metal Shear 63 Ton Shear Force 280mm Opening

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-63T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 20 or 40 feet container
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Hydraulic Metal Shear Function: Shear Scrap Metals
Shear Force: 63T Blade Length: 600mm
Motor Power: 7.5kw Max. Open: 280mm
Max. Holding Force: 10T Shearing Material Size: 30*30 Mm, Φ40 Mm
High Light:

Hydraulic Alligator Metal Shear

,

7.5 kw Hydraulic Alligator Metal Shear

,

280mm Opening Hydraulic Alligator Metal Shear

Product Description

63 Ton Shear Force 280mm Opening Hydraulic Alligator Metal Shear



Description of hydraulic metal shear



Hydraulic metal shear applies to scrap metal (iron, steel, steel pipe, etc.) cold shearing of different section forms. The device body adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate. A new integration design, which avoids the disadvantage of site secondary installation. Shear head adopts sheel casting, more durable. This machine is equipped with fast unit, and the shearing speed is doubled than before, the power is saved by 50%.



Technical parameters of hydraulic metal shear



Item Max Shear force Max. Open

Max. Holding force



Blade length Frequency per minute Power Size of shearing material
63 63T 280mm 10T 600mm 8-10 7.5kw 30*30 Φ40mm
800 80T 300mm 12T 600mm 8-10 7.5kw 30*30 Φ35mm
1000 100T 300mm 16T 600mm 8-10 11kw 40*40 Φ45mm
1200 120T 300mm 20T 600mm 8-10 15kw 45*45 Φ50mm
1600 160T 320mm 25T 700mm 10-12 18.5kw 55*55 Φ63mm
2000 200T 380mm 25T 600mm 12-14 22kw 65*65 Φ75mm
2500 250T 480mm 26T 1000mm 12-14 30kw 70*70 Φ80mm
3150 315T 520mm 42T 1200mm 12-14 37kw 80*80 Φ90mm









































Features of hydraulic metal shear



1. The main engine is welded with all steel plate, which has no deformation and tear. When the equipment is working, it does not need to fix the cement foundation, and the working site can be changed at any time. It makes up for the blank of domestic forging machinery industry.

2. There is no movement joint, no movement connection and no damage between the upper cutter board and the power master cylinder.

3. High strength quenching guide rail and automatic lubrication system are adopted. It is more convenient for maintenance and repair.

4. PLC and manual operation can choose.

5. Hydraulic transmission system, safe and reliable design, convenient operation.

6. Various models have different cutting forces, and the blade length can be customized according to customer needs.



Safety operation rules



1. hydranulic alligator shear should be operated by the designated persons. Others can not be used arbitrarily without training.

2. before driving, check whether the parts are normal and whether the fasteners are solid.

3. unannealed steel, cast iron, soft metal parts, too thin pieces, work pieces of less than 100 millimeters in length, and work pieces that exceed the length of scissors are prohibited from shearing.

4. when operating, the body is not allowed to approach the transmission part and knife edge of the equipment, and the safety of the surrounding personnel should be paid attention to, so as to prevent the material from rising and hurting people. When cutting, the material should be cut near the edge of the knife as far as possible.

5.When cutting short material, hand-held workpiece is prohibited. The clamp should be used.

6. when the scrap metal shearing machine operate, the operator shall not leave the post without authorization. When the work is completed or the post is temporarily left, the power supply should be cut off. At the same time, the machine should not be repaired or touched by hand, and the hand or foot is strictly prohibited to press the material in the material box.
7. the lubricating parts of crocodile scrap metal shearing machine should be lubricated at least once per shift according to the requirements.
