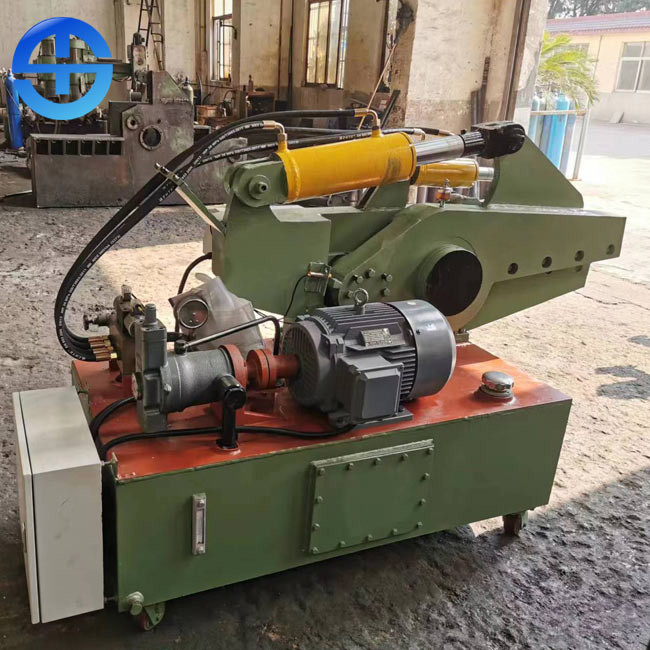

7.5kw Motor Hydraulic Alligator Shear Machine 600mm Blade Length

7.5kw Motor Hydraulic Alligator Shear Machine 600mm Blade Length

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-63T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 20 or 40 feet container
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Hydraulic Shear Usage: Shear Metals
Shear Force: 63T Blade Length: 600mm
Motor Power: 7.5kw Max. Open: 280mm
Max. Holding Force: 10T Shearing Material Size: 30*30 Mm, Φ40 Mm
High Light:

600mm Blade Hydraulic Alligator Shear

,

PLC Hydraulic Alligator Shear

,

Hydraulic Alligator Shear 600mm

Product Description

63 Ton Shear Force 600mm Blade Length Hydraulic Alligator Shear



Description of hydraulic alligator shear



This series of hydraulic alligator shear are mainly used in the scrap metal processing industry to cut the metal (round steel, square steel, angle steel, channel steel, I-beam, steel plate and various metal components) in cold state. It is convenient for transportation and smelting. This series of models are suitable for metal recycling processing plant, scrap car dismantling yard, smelting and casting industry. It can cut all kinds of shape steel and various metal structural parts in cold state and process them into qualified furnace charge.



The cutting edge length of shears: 400mm, 700mm, 800mm, 1000mm, 1200mm, the shear force ranges from 63 tons to 400 tons. The shears with more than 700mm blade are especially suitable for cutting scrapped automobiles. The installation does not need foot screw, and the place without power supply can be powered by diesel engine. Small waste paper packer can also be equipped with blades, which can cut and compress the waste paper exposed in the process of packaging. The blade is widely used, so different materials decide what kind of blade to use.



Technical parameters of hydraulic allgator shear



Item Max Shear force Max. Open

Max. Holding force



Blade length Frequency per minute Power Size of shearing material
63 63T 280mm 10T 600mm 8-10 7.5kw 30*30 Φ40mm
800 80T 300mm 12T 600mm 8-10 7.5kw 30*30 Φ35mm
1000 100T 300mm 16T 600mm 8-10 11kw 40*40 Φ45mm
1200 120T 300mm 20T 600mm 8-10 15kw 45*45 Φ50mm
1600 160T 320mm 25T 700mm 10-12 18.5kw 55*55 Φ63mm
2000 200T 380mm 25T 600mm 12-14 22kw 65*65 Φ75mm
2500 250T 480mm 26T 1000mm 12-14 30kw 70*70 Φ80mm
3150 315T 520mm 42T 1200mm 12-14 37kw 80*80 Φ90mm









































Features of hydraulic alligator shear



1. The main engine is welded with all steel plate, which has no deformation and tear. When the equipment is working, it does not need to fix the cement foundation, and the working site can be changed at any time. It makes up for the blank of domestic forging machinery industry.

2. There is no movement joint, no movement connection and no damage between the upper cutter board and the power master cylinder.

3. High strength quenching guide rail and automatic lubrication system are adopted. It is more convenient for maintenance and repair.

4. PLC and manual operation can choose.

5. Hydraulic transmission system, safe and reliable design, convenient operation.

6. Various models have different cutting forces, and the blade length can be customized according to customer needs.



Application of hydraulic alligator shear



There are many kinds of shears, and the most commonly used one is hydraulic metal shears. It is suitable for metal recycling and processing plants, scrap car dismantling yards, metal smelting and casting industries. It can cut various shapes of section steel (such as round steel, square steel, channel steel, I-steel plate, steel pipe, etc.) and various metal structural parts in cold state, and process them into qualified charge.

The metal shearing machine has compact structure, stable mechanical performance, hydraulic drive, reliable safety performance, automatic operation, convenient installation, no need to use foot screw, and diesel engine can be used as power in places without power supply. Shears are also frequently used in metal recycling. The scissors length and maximum shear force of the shearer can be designed and made according to the user's requirements. The working blade length is 600mm, 700mm, 800mm, 1000mm, 1200mm; the shear force is from 65t to 450t, which is suitable for users of different scales and requirements.
