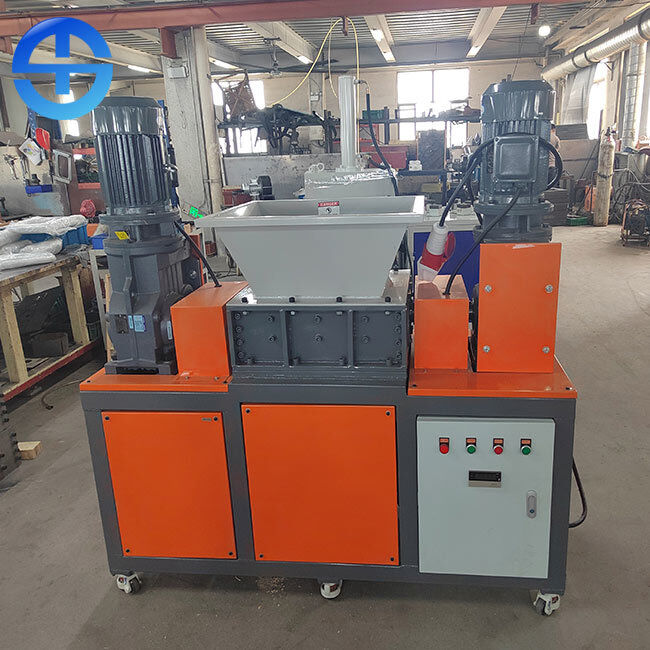

Mini 400D Shredder Machine Dual Shaft Shredder Machine 500kg/H H13 Blade

Mini 400D Shredder Machine Dual Shaft Shredder Machine 500kg/H SKD11 Blade

Introduction of shredder machine

Shredder machine is also known as shear shredder, referred to as shredder. According to the actual situation in China, we will improve, develop and launch a series of dual shaft shredders with mature technology and advanced design to provide reliable equipment for crushing and volume reduction treatment in the early stage of waste recycling in the world.

The shredder machine is driven by two shafts independently, so that the materials are pressed correspondingly during production, and the automatic feeding function is achieved. The unique cutter shaft structure and four angle rotary cutter will not entangle the shaft or jam the equipment in the production process of low speed and high torque, thus improving the production efficiency. The equipment is suitable for the crushing of various materials with high toughness and viscosity. It has many advantages in production, environmental protection and recycling.

Technical data of dual shaft shredder

Features of Shredder machine

1: The heavy moving knife has high crushing power. The knives are cast with alloy steel, which is firm and has long service life.

2: The frame plate is thick, can resist high torque and is very strong.

3: Microcomputer (PC) automatic control is adopted, with start, stop, reverse and overload automatic reverse control functions.

4: The equipment has the characteristics of low speed, high torque, low noise and dust, which can meet the environmental protection standard.

5: Easy adjustment, low maintenance cost, economy and durability.

6: The thickness of the tool and the number of jaws can be changed according to different materials.

Working principle & Structural characteristics

This machine is mainly composed of components such as the frame, box plate, motor, electrical box, reducer, coupling, gear, moving blade, fixed blade, spacer sleeve, bearing, feed hopper, and discharge hopper.

Working principle of this machine: The motor drives the reducer, which in turn drives the driving shaft, causing it to rotate. The speed is adjusted to the driven shaft through gears of different sizes, enabling relative motion between the helical tooth cutter discs on both the driving and driven shafts. The helical tooth cutter discs on the driving and driven shafts are arranged in a staggered manner, so that after the material enters, it is simultaneously subjected to squeezing, tearing, and shearing, thereby crushing the material entering the shredding chamber. The crushed material is discharged through the discharge port by its own weight.

When there is too much material in the shredding chamber and the main shaft gets stuck, the main shaft will automatically reverse to dislodge the stuck material. Once the material is dislodged, normal operation will resume, serving as a protective function.
