2-3 Ton Briquetting Press Machine With PLC Control Cast Iron Scrap

Minimum Order Quantity : 1 set Price : Negotiated
Packaging Details : Exported ply wooden case or Full container Delivery Time : 7-10 working days
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 30 sets per month
Place of Origin: Zhengzhou, China Brand Name: TMS
Certification: CE, ISO Model Number: TMS-2000

Detail Information

Name: Briquetting Press Machine Function: Press Metal Into Block
Motor Power: 15kw Briquette Diameter: Φ80mm
Input Per Shift: 2-3 Ton Work Efficiency: 4-4.5 Block/min
Operation Mode: PLC Control, Manual Dimension: 2100*2500*3000mm
High Light:

3 Ton Briquetting Press Machine

,

2 Ton Briquetting Press Machine

,

PLC Control screw briquette machine

Product Description

PLC Control 2-3 Ton Capacity Briquetting Press Machine

Description of briquetting press machine

Briquetting press machine is mainly used for directly pressing metal raw materials such as cast iron scrap, steel scrap, copper scrap, aluminum scrap and high-quality mineral powder into 3-6kg cylinder or other shape cakes by high pressure cold pressing, so as to facilitate storage and transportation and reduce the loss of transportation and smelting in the process of recycling.

Features of briquetting press machine

1. The system is designed with pre release device to eliminate the hydraulic impact completely.

2. Advanced fast device to ensure the production needs of users.

3. The electrical part adopts PC control, with strong anti-interference, high degree of automation and simple operation.

4. The machine body adopts integral steel structure, high strength and good stability, so it is unnecessary to install foundation screw.

5. The whole steel casting is used in the frame to improve the reliability, stability and service life of the equipment.

6. The hydraulic station adopts integral professional valve block and Datong installed valve to eliminate oil leakage, reduce the oil temperature of the system and improve the stability of the system.

Component of briquetting press machine

(1) Main machine: it is composed of frame, main hydraulic cylinder, pushing hydraulic cylinder, bottom plate hydraulic cylinder, matching mold frame and mold, pressure head, etc.

The frame part is composed of upper and lower beams and columns. The upper and lower crossbeams are all made of integral steel casting. The upper and lower crossbeams are connected with four columns by inner and outer nuts to bear the tension during operation.

The main hydraulic cylinder can eliminate steel casting and hidden danger. Ensure the service life and safety of the equipment. The supporting mold frame, mold and indenter are designed by professionals, and the superior processing ability is the guarantee for the excellent taste of the equipment. The punch of mould and briquetting machine are equipped with high strength wear-resistant steel which can be replaced quickly. The front end of model lindur punch is equipped with a pressing ring of wear-resistant punch which is convenient for disassembly and installation, so as to prolong its service life. Relevant parts are specially hardened or forged in necessary parts.

(2) Hydraulic station: it is composed of motor, hydraulic pump, pump protection device, professional control valve block and pipeline system for connecting briquetting machine. The design is reasonable and the quality is stable. Equipped with cooling system to avoid continuous operation of equipment due to oil temperature overheating.

(3) Console: it is composed of electrical system and PLC control system.

Technical parameters of briquetting press machine

Model TMS-2000
Inner diameter of main cylinder φ280mm
Briquette diameter Φ80mm
Density of briquette ≥5 T/m3
Work efficiency 4-4.5 block/min
Input per shift 2-3 Ton
Power 15kw
Remark PLC control, Manual

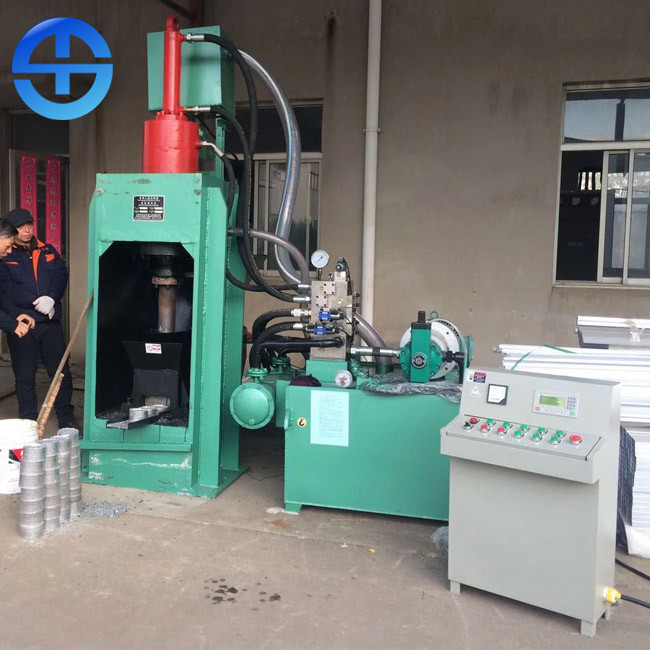

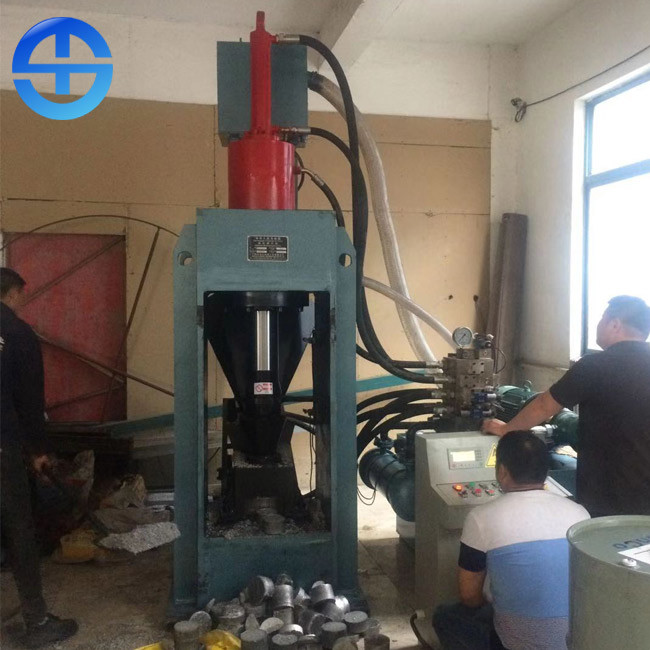

2-3 Ton Briquetting Press Machine With PLC Control Cast Iron Scrap 0
