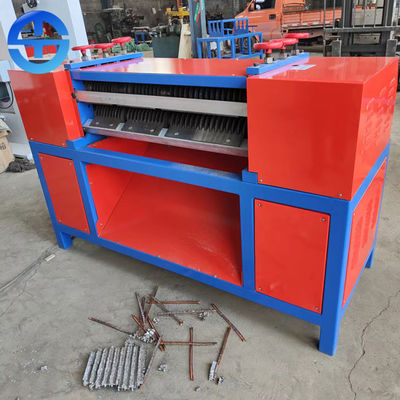

19mm 21mm 25mm Scrap Radiator Recycling Machine Button Operation
Product Details:
| Place of Origin: | Zhengzhou, China |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | TMS-017 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set/Sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Ply wooden case which meet export standard for Scrap radiator recycling machine |
| Delivery Time: | 7 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Name: | Scrap Radiator Recycling Machine | Function: | Recycling Copper Pipes |
|---|---|---|---|
| Production: | 2-3 Ton/day | Dimension: | 1.8*0.8*1.2m |
| Net Weight: | 600 Kg | Voltage: | 380V/50HZ, 3 Phase |
| High Light: | 25mm Scrap Radiator Recycling Machine,19mm Scrap Radiator Recycling Machine,21mm Scrap Radiator Recycling Machine |
||
Product Description
19mm 21mm 25mm Scrap Radiator Recycling Machine Button Operation
Description of Scrap Radiator Recycling Machine
Scrap Radiator Recycling Machine is very suitable for single-layer and double-layer copper tube radiators. Process all kinds of radiator, convection radiator, steel radiator, stainless steel radiator, copper aluminum radiator, etc.
Technical parameters of scrap radiator recycling machine
| Model | TMS-17 |
| Dimension | 1.8*0.8*1.2m |
| Production | 2-3 ton/day |
| Motor power | 3kw & 4kw |
| Weight | 600kg |
| Voltage | 380V/50HZ, 3Phase or Customized |
Features of scrap radiator recycling machine
1. Compact structure, taking up small area.
2. No damage to copper pipe, no copper loss.
3. Safe and easy operation, high efficiency.
4. Center distance can be tailor-made to fit your conditions.
5. Voltage can be tailor-made to fit your conditions.
Material Preparation of scrap radiator recycling machine
1. Iron heads of radiators must be cut off the two sides of radiators;
2. Radiators must be cut with a band saw according to the width of each Material Inlet;
3. Radiators that are more than 2 layers must be cut into one layer and two layers with the band saw;
4. Do not feed radiators into wrong Material Inlets (three inlets each are for 19mm, 21mm, 25mm radiators respective);
5. This machine is suitable for processing one layer radiators when it is shipped to customers. When you need to process two-layer radiators, just remove the iron covers from the Lower Blade Roller to expose the blades.
6. When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet.
7. For both one-layer and two-layer radiators, the left side of radiators must touch the Guiding Rulers and are radiators must be fed into Material Inlets along the guiding rulers.
8. When radiators are fed into Material Inlets correct, each Feeding Gear at the Material Inlet must be at the middle of each two copper pipes; or copper pipes and aluminum will not be separated.
9. Twisted radiators can not be processed.
