Mini 400 Capacity Copper Wire Granulator 80kg / H 100kg / H
Contact Person : Thomas Wang
Phone Number : +86 18203683590
WhatsApp : +8618203683590
|Minimum Order Quantity :||1 set||Price :||negotiable|
|Packaging Details :||Full container for copper recycling machine.||Delivery Time :||15-20 work days|
|Payment Terms :||L/C, T/T, Western Union||Supply Ability :||30 sets per month|
|Place of Origin:||Henan, China (Mainland)||Brand Name:||TMS|
|Certification:||CO, ISO||Model Number:||TMS-600|
|Name:||Copper Wire Recycling Machine||Type:||Dry Type|
|Power:||52.36kw||Function:||Separate Copper From Plastic|
|Separating Rate:||99.9%||Output:||300-400 Kg/h|
scrap metal granulators,
copper cable granulator machine
Economical and Environmental scrap copper wire recycling machineine

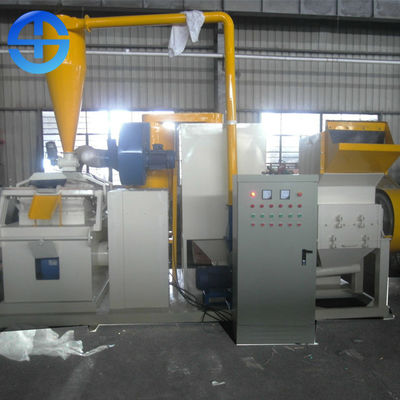

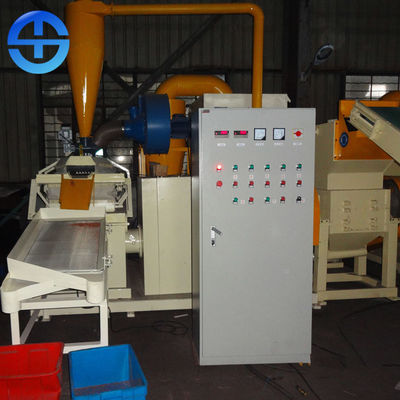

Copper wire recycling machine is used for handling automobile wires, communication cables and other types of miscellaneous wires and cables. This machine has a compact structure, and has stable and reliable performance. Scrap copper wires and cables are chopped by the Chopper in the machine and then plastic pieces and copper granules are separated by airflow and vibration. Copper granules and plastic pieces come out of the machine through different outlets, and dust is collected by Dust Collector.
(Copper wires less than 20mm in diameter are suitable, single conductor diameter of 0.2-0.3mm is best.)
1. The whole system is controlled by the Electricity Control Panel.
2. The bottom air flow is controlled by the Airlock.
3. The operation is stable.
4. Minimum copper recovery rate can reach 99%.
|Size (mm)||Capacity||Wire diameter range||Power||Voltage||Weight|
|300-400 kg/h||0.1-20 mm||52.36 kw||380V/50HZ||3400kg|
1. The machines except spare parts are guaranteed for 12 months.
2. Engineer will be sent to your place to guide how to operate for the production line.
3. We will send you extra set of spare parts and two sets small vibrators.
