11.92 Kw Power Copper Wire Granulator Machine 99.9% Recovery

11.92 Kw Power Copper Wire Granulator Machine 99.9% Recovery

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE, ISO9001
Model Number: Mini-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Copper wire granulator is packed with standard export ply wooden case. .
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Granulator Machine Type: Dry Type
Function: Recycling Copper Total Power: 11.92kw
Separating: 99.9% Productivity: 80-100kg/h
Machine Size: 1500*1500*1900mm Machine Weight: 750kg
High Light:

Power Copper Wire Granulator Machine


99.9% Recovery Copper Wire Granulator


Dry type Copper Wire Granulator

Product Description

99.9% Recovery 11.92kw Power Copper Wire Granulator Machine

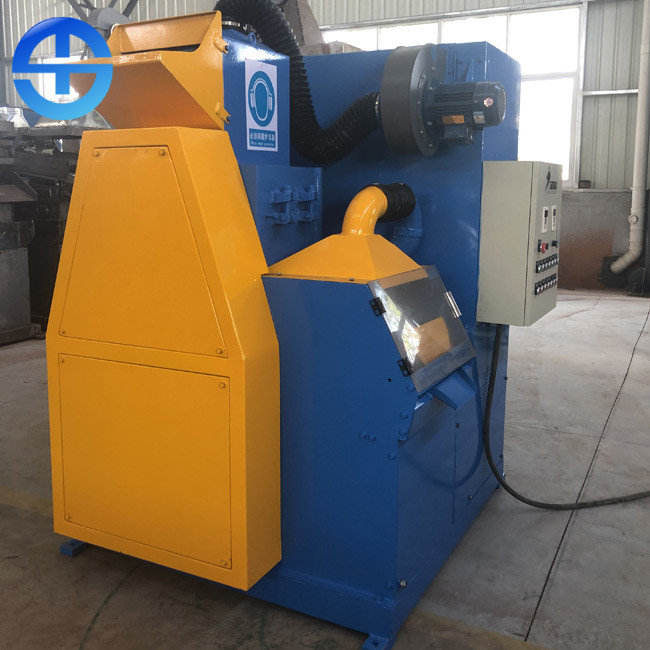

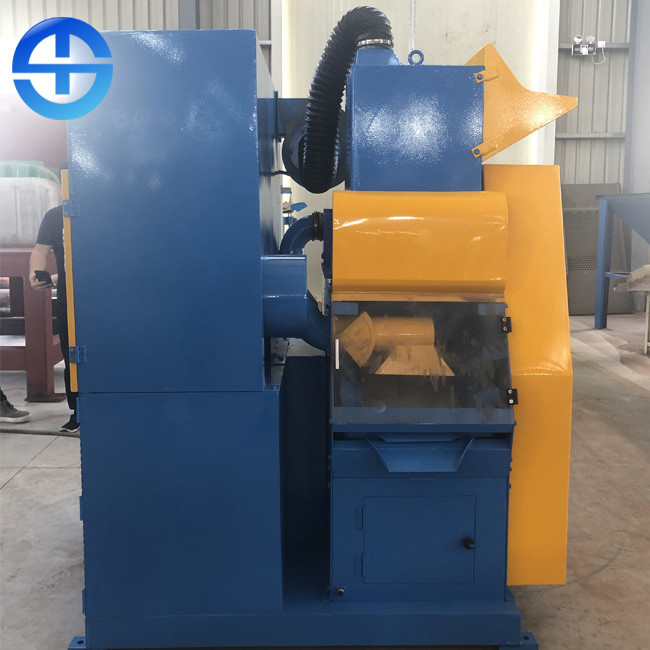

Description of copper wire granulator machine


Copper wire granulator machine is a professional production line for dry separation of waste wires and cables. For example, old automobile circuit lines, communication cables, and wire stripping machines are not suitable for processing (all kinds of civil wires) waste miscellaneous wires, wool thin wires, etc. The characteristics of this machine are that the large and small lines can be broken and separated at the same time without classification. It has new structure, large production capacity, low power consumption, high sorting rate, one feeding and multi machine cooperation. The whole line is controlled by PLC, which is at the leading level in China. The successful development of the machine not only solves the problems in the method of burning copper, but also improves the quality of copper recovery, recycles plastics and solves environmental pollution.

Technical parameter of copper wire granulator machine


Description (mm) Power Capacity Wire diameter range Weight Voltage
1500*1500*1900 11.92 kw 80-100 kg/h 0.1-20mm 750kg customized


Features of copper wire granulator machine


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. PLC control is adopted to make the equipment feed evenly and operate intelligently, which makes the operation easier, worry-saving, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher adopts counter roll type, with low speed, high torque, large output, low noise and simple operation.

4. The crusher, sorting equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport and increases the flexibility of the equipment.

5. The rotor of the crusher adopts alternating cutter shaft, which makes the crusher more efficient, lower noise and more stable operation.

6. The air separation equipment has high separation rate.

7. The return system makes the semi-finished products undergo secondary crushing to ensure the complete separation of metal and non-metal.

8. Bag dust collection equipment can effectively control dust overflow and has high dust removal efficiency.


Working principle of copper wire granulator machine


Under the action of wind, two substances with different densities undergo deflection caused by amplitude motion on the screen surface with a certain angle, so that the copper wire with high density moves forward against the screen and faces the copper outlet, and the plastic skin with low density floats on the copper wire and flows to the copper outlet. So as to achieve the purpose of copper plastic separation. The cleaning rate of separation is directly proportional to the diameter of a single copper wire. The larger the diameter of a single copper wire, the cleaner the separation between the copper wire and the plastic, and the larger the output per unit time. The smaller the diameter of a single copper wire, the worse the separation effect between the copper wire and the plastic.
