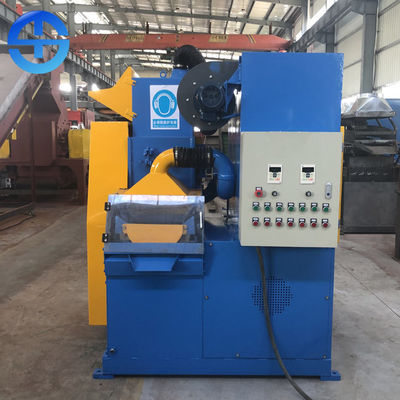

Mini 400 Capacity Copper Wire Granulator 80kg / H 100kg / H

Mini 400 Capacity Copper Wire Granulator 80kg / H 100kg / H

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE, ISO9001
Model Number: Mini-400

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Copper wire granulator is packed with standard export ply wooden case. .
Delivery Time: 15 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Granulator Type: Dry Type
Application: Scrap Cables Total Power: 11.92kw
Purity: 99.9% Cpacity: 80-100 Kg/h
Dimension: 1500*1500*1900mm Weight: 750kg
High Light:

customized Voltage Copper Wire Granulator


Mini 400 Capacity Copper Wire Granulator


100kg/H Copper Wire Granulator

Product Description

Mini-400 Capacity 80kg/H 100kg/H Copper Wire Granulator


Description of copper wire granulator


It is a professional dry separation waste wire and cable production line. For example: the old automobile circuit line, communication cable, and wire stripper are not suitable for processing (various civil wires) waste and miscellaneous wires, wool wire, etc. the characteristics of this machine are that the large and small lines can be broken and separated at the same time without classification, with new structure, unique structure, large production volume and low power consumption. High separation rate, one feeding, multi machine cooperation. The whole line is controlled by PLC, and is in the leading level in China. The successful development of the machine solves the problems in the method of burning copper, improves the quality of copper recovery, and can recycle plastics and solve the environmental pollution.

Technical parameter of copper wire granulator


Description (mm) Power Capacity Wire diameter range Weight Voltage
1500*1500*1900 11.92 kw 80-100 kg/h 0.1-20mm 750kg customized


Features of copper wire granulator


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Intelligent operation makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher adopts counter roller type, with low speed, high torque, large output, low noise and simple operation.

4. The pulverizer, separation equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.

5. The rotor of the pulverizer adopts the alternate cutter shaft, which makes the production efficiency of the pulverizer higher, the noise lower and the operation more stable.

6. The separation rate of air flow separation equipment is as high as 97 ~ 99%.

7. The return system makes the semi-finished products be crushed twice, which ensures the complete separation of metal and non-metal.

8. Bag dust collection equipment can effectively control dust overflow, and the dust removal efficiency is as high as 99.99%.


Working principle of copper wire granulator


Under the action of wind, two substances with different densities undergo deflection caused by amplitude motion on the screen surface with a certain angle, so that the copper wire with high density moves forward against the screen and faces the copper outlet, and the plastic skin with low density floats on the copper wire and flows to the copper outlet. So as to achieve the purpose of copper plastic separation. The cleaning rate of separation is directly proportional to the diameter of a single copper wire. The larger the diameter of a single copper wire, the cleaner the separation between the copper wire and the plastic, and the larger the output per unit time. The smaller the diameter of a single copper wire, the worse the separation effect between the copper wire and the plastic.

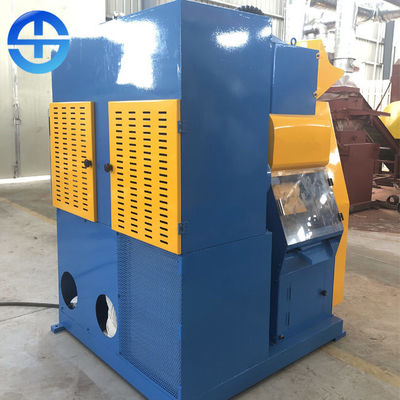

Mini 400 Capacity Copper Wire Granulator 80kg / H 100kg / H 0
