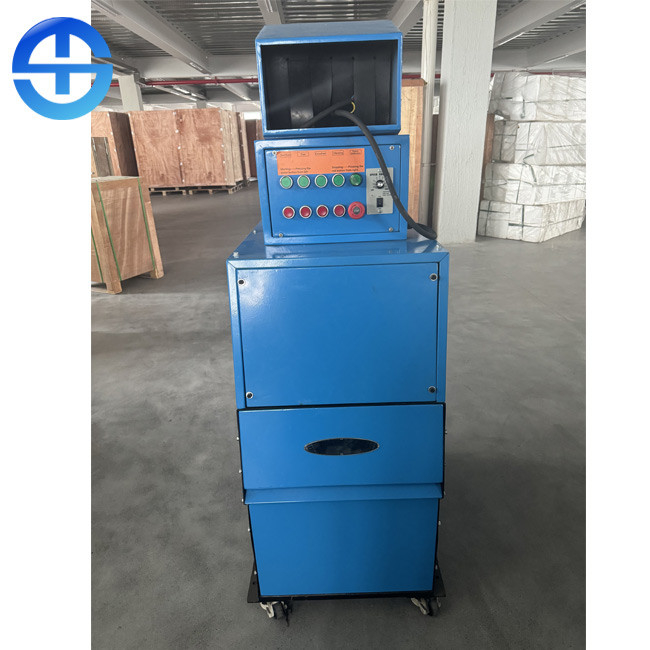

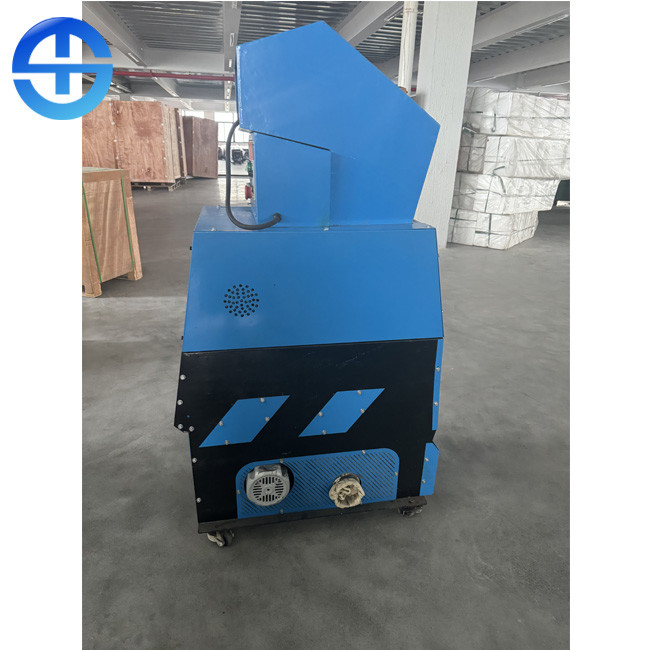

200 Mini  Copper Wire Granulator Capacity 30kg / H 50kg / H

200 Mini Copper Wire Granulator Capacity 30kg / H 50kg / H

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: TMS
Certification: CE, ISO9001
Model Number: 200 Mini

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Copper wire granulator is packed with standard export ply wooden case. .
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Granulator Type: Dry Type
Application: Scrap Copper Cable Total Power: 3.9kw
Purity: 99.9% Cpacity: 30-50 Kg/h
Dimension: 835*552*1435mm Weight: 222kg

Product Description

200 Mini Copper Wire Granulator Capacity 30kg / H 50kg / H


Description of copper wire granulator


In the world, there are many kinds of waste wires and communication cables that have been used or exchanged. Our purpose is to overcome the loss of copper and other by-products during regeneration and make them more scientific and automatic. It reduces the number of people, improves the recovery rate, and thus improves the production efficiency. It not only develops the national economy and protects the environment, but also is conducive to the development of renewable industries.


This machine has a lightweight structure, small size, and light weight, making it easy to operate and use. It has low investment and quick results, and is suitable for both family and personal use. It is one of your best wealth generating tools.

Technical parameter of copper wire granulator


Description (mm) Power Capacity Wire diameter range Weight Voltage
835*552*1435 3.9 kw  30-50 kg/h 0.1-20mm 222kg customized


Features of copper wire granulator


1. Compact structure, beautiful appearance, reasonable layout and convenient installation.

2. Intelligent operation makes the operation more convenient, time-saving and labor-saving, and ensures the stable operation of the equipment to the greatest extent.

3. The crusher adopts counter roller type, with low speed, high torque, large output, low noise and simple operation.

4. The pulverizer, separation equipment and dust collection equipment adopt the platform combination type, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.

5. The rotor of the pulverizer adopts the alternate cutter shaft, which makes the production efficiency of the pulverizer higher, the noise lower and the operation more stable.

6. The separation rate of air flow separation equipment is as high as 97 ~ 99%.

7. Bag dust collection equipment can effectively control dust overflow, and the dust removal efficiency is as high as 99.99%.


Working principle of copper wire granulator


Under the action of wind, two substances with different densities undergo deflection caused by amplitude motion on the screen surface with a certain angle, so that the copper wire with high density moves forward against the screen and faces the copper outlet, and the plastic skin with low density floats on the copper wire and flows to the copper outlet. So as to achieve the purpose of copper plastic separation. The cleaning rate of separation is directly proportional to the diameter of a single copper wire. The larger the diameter of a single copper wire, the cleaner the separation between the copper wire and the plastic, and the larger the output per unit time. The smaller the diameter of a single copper wire, the worse the separation effect between the copper wire and the plastic.


200 Mini  Copper Wire Granulator Capacity 30kg / H 50kg / H 0
