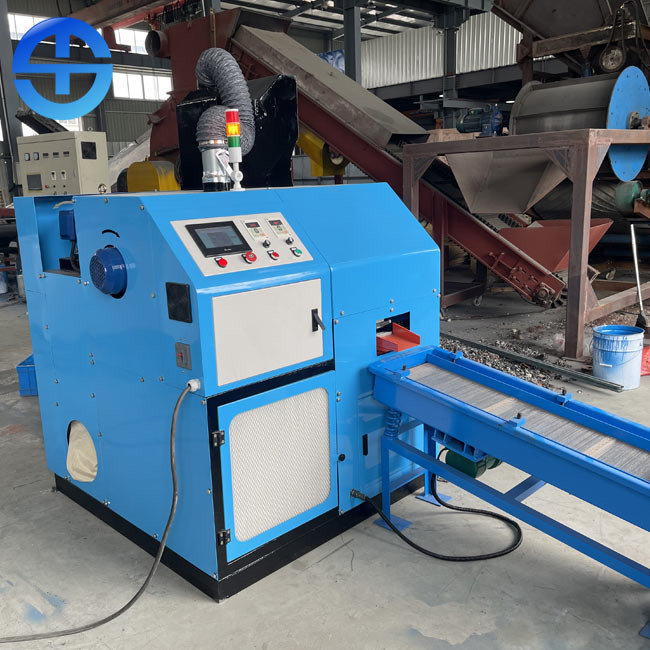

Diameter 0.1-20mm Cable Wire Recycling Machine 60kg/H 100kg/H

Diameter 0.1-20mm Cable Wire Recycling Machine 60kg/H 100kg/H

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, CO, ISO
Model Number: 300

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Ply wooden case
Delivery Time: 15 work days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per month
Get Best Price Contact Now

Detail Information

Name: Copper Wire Granulator Materials: Scrap Copper Cables
Main Function: Recycling Total Motors: 12.24kw
Recovery: 99% Producitivity: 60-100 Kg/h
Size: 1360*1300*1915 Mm Wire Diameter: 0.1-20mm
High Light:

20mm Cable Wire Recycling Machine


60kg/H Cable Wire Recycling Machine


100kg/H copper cable granulator

Product Description

Diameter 0.1-20mm Wire 60kg/H 100kg/H Copper Wire Granulator


Description of copper wire granulator


In the world, there are many kinds of waste wires and communication cables that have been used or exchanged. Our purpose is to overcome the loss of copper and other by-products during regeneration and make them more scientific and automatic. It reduces the number of people, improves the recovery rate, and thus improves the production efficiency. It not only develops the national economy and protects the environment, but also is conducive to the development of renewable industries.

Copper wire granulator is a production line for dry separation of waste wires and cables. For example, old automobile circuit lines, communication cables, and wire stripping machines are not suitable for processing (various civil wires) waste and miscellaneous wires Wool, fine thread, etc. This machine is characterized by its new and unique structure, large production capacity and low power consumption. High sorting rate, one feeding and multi machine cooperation. Fully automatic intelligent control. The successful development of this machine not only solves the problems in the method of burning copper, but also improves the quality of copper recovery, recycles plastics and solves environmental pollution.


Technical parameter of copper wire granulator

Model Dimension Input Capacity Wire diameter range Power Volage Wight
TMS-300 1360*1300*1915 mm 60-100 kg/h 0.1-20 mm 12.24 kw 380/240V 1220kg
TMS-400 2700*1900*2300 mm 150-200 kg/h 0.1-20 mm 23.12 kw 380/240V 1200kg
TMS-600 4300*1950*2400 mm 300-400 kg/h 0.1-20 mm 52.36 kw 380/240V 3400kg
TMS-800 9200*4100*3540 mm 500-600 kg/h 0.1-30 mm 71.86 kw 380/240V 4100kg


Features of copper wire granulator


1. The layout of production line is compact and space utilization is high.

2. Intelligent control, high degree of automation, overload automatic shutdown protection.

3. The sorting rate of air separation equipment is over 99%

4. The crusher adopts high-strength alternating cutter shaft with high grinding efficiency. The knife is alloy tool steel with long service life.

5. The crusher is equipped with air cooling system to delay the heating of materials and crushing bin.

6. Bag dust collecting equipment can effectively control dust spillover, and the dust removal efficiency is over 99%.


Raw materials of copper wire granulator


Recycle different types of cable wires, such as all kinds of automotive circuit cable lines, communication cable lines and various waste wires that are not suitable to be processed by stripping machines. Like: computer wires, automobile wires, tele-communication cables, electric telephone wiresThe functions of these cable recycling system include pre-shredding, steel removal, granulation and separation of plastics from copper or aluminum. The advanced design of these plants results in excellent separation of the different fractions, even when processing mixed cables of varying size and composition.


Working principle of copper wire granulator


Under the action of wind, two substances with different densities undergo deflection caused by amplitude motion on the screen surface with a certain angle, so that the copper wire with high density moves forward against the screen and faces the copper outlet, and the plastic skin with low density floats on the copper wire and flows to the copper outlet. So as to achieve the purpose of copper plastic separation. The cleaning rate of separation is directly proportional to the diameter of a single copper wire. The larger the diameter of a single copper wire, the cleaner the separation between the copper wire and the plastic, and the larger the output per unit time. The smaller the diameter of a single copper wire, the worse the separation effect between the copper wire and the plastic.


Diameter 0.1-20mm Cable Wire Recycling Machine 60kg/H 100kg/H 0
