Environmental Scrap Metal Baler Metal Scrap Baling Press Machine 80-95 Ton / Day
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | TMS-3150A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Full container 20'GP or 40'GP |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Name: | Hydraulic Baler Machine | Application: | Copper, Aluminum, Steel |
|---|---|---|---|
| Power: | 45 KW*2 | Operation: | Full Automatic PLC |
| Bale Size: | 600*600mm | Nominal Pressure: | 3150 KN |
| Capacity: | 80-95 Ton/day | Function: | Press Scrap Into Bale |
| Highlight: | scrap aluminum baler,hydraulic baling press machine |
||
Product Description

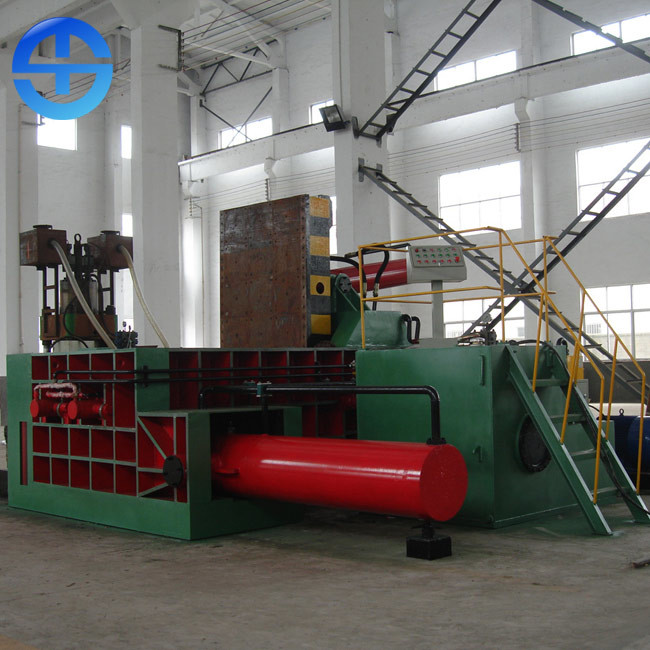

Model 3150 hydraulic baler machine for scrap metal 80-95 ton/day
Machine Description
Hydraulic baler machine is used for cold pressing various scrap metals into various shape, such as cuboid type, cylinder type and octangle type for convenient storge, transportation and putting into furnace. Hydraulic baler machine is suitable for processing various scrap metals within 10mm in thickness, such as scrap steel, aluminum and copper turnings, oil tank, steel windows, bicyle etc.
Machine Features
1. Driven by hydraulic pressure. It works smoothly and safely.
2. Manual or PLC automatic control mode is adopted.
3. The discharging forms are: rollover bale, roll bale, forward bale or no bale.
4. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.
5. Product specifications and types: Metal balers have 63-600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.
| Model | Nominal pressure | Material box size | Bale size | Daily Output | Power | Pump |
| 1250 | 1250KN | 1200*700*600mm | 300*300mm | 10-20T | 15kw | YCY-63 |
| 1350 | 1350KN | 1400*800*700mm | 300*300mm | 15-25T | 18.5kw | YCY-80 |
| 1600 | 1600KN | 1600*1000*800mm | 400*400mm | 20-35T | 22kw | YCY-160 |
| 2000 | 2000KN | 2000*1400*900mm | 450*450mm | 30-45T | 22+15kw | YCY-160+63 |
| 2500A | 2500KN | 2200*1850*1000mm | 500*500mm | 40-55T | 22kw*2 | YCY160*2 |
| 2500B | 2500KN | 2500*2000*1000mm | 500*500mm | 55-65T | 30kw*2 | YCY160*2 |
| 3150A | 3150KN | 2500*2000*1000mm | 600*600mm | 80-95T | 45kw*2 | YCY-250*2 |
| 3150B | 3150KN | 3000*2500*1200mm | 600*600mm | 100-115T | 45w*2 | YCY-250*2 |
| 4000 | 4000KN | 3500*3000*1400mm | 700*700mm | 120-140T | 75kw*2 | YCY-350*2 |
