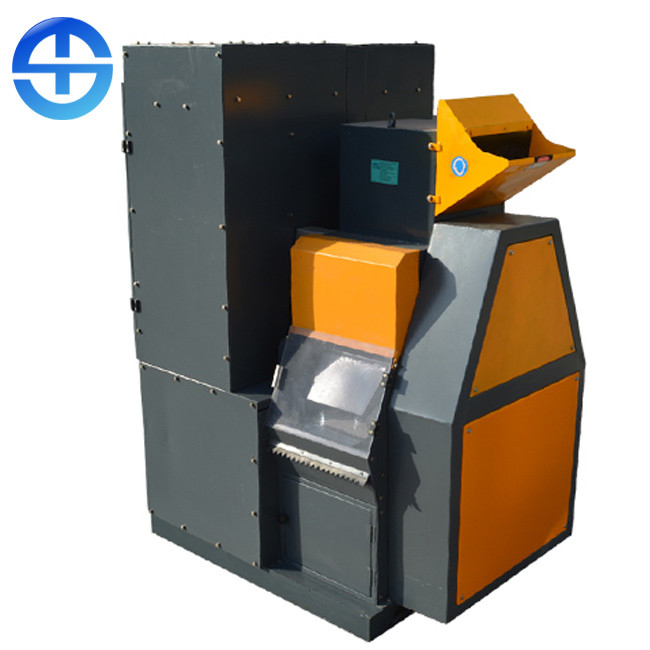

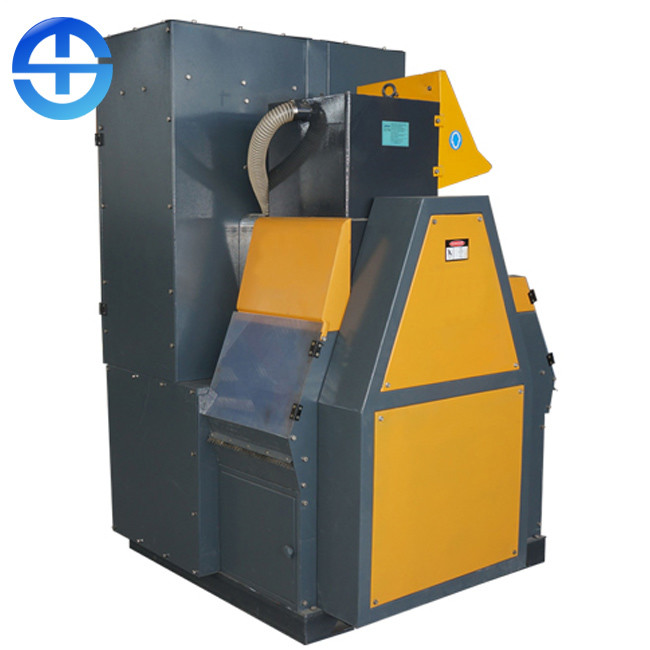

Small Copper Wire Granulator Machine Scrap Wire Shredder 99.9% Recovery Rate
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | Mini-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Packed with standard exported ply wooden case. |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Copper Cable Granulator | Type: | Dry Type |
|---|---|---|---|
| Power: | 11.92kw | Function: | Separate Copper From Plastic |
| Separating Rate: | 99.9% | Output: | 80-100 Kg/h |
| Power Support: | Electric | Application: | Scrap Copper Cables |
| Weight: | 750kg | ||
| High Light: | copper wire granulator separator,copper cable granulator machine |
||
Product Description
Electric power supply 80-100 kg/h small copper cable granulator
Product Description
Small copper cable granulator is used for recycling scrap copper wires/cables with diameter less than 20mm, better for single conductor diameter of 0.2-0.5mm. Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.
Raw material:
The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.
Technical parameter
| Size (mm) | Capacity | Wire diameter range | Power | Volage | Weight |
|
1500*1500*1900 |
80-100 kg/h | 0.1-20 mm | 11.92 kw | 380/240V | 750kg |
Accessories
The spare parts of small copper cable granulator includes screen mesh and blades in crusher.
Our Services
1. The machines except spare parts are guaranteed for 12 months.
2. Engineer will be sent to your place to guide how to operate for the production line.
3. We will send you extra set of spare parts and two sets small vibrators.
