High Performance Dual Shaft Shredder Strong Shredding Force PLC Control System

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Ply wooden case or loaded into a full container Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 sets per month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CO, ISO Model Number: TMS-800

Detail Information

Name: Dual Shaft Shredder Machine Application: Copper, Aluminum, Woood Etc
Power: 22kw*2 Capacity: 2-3 Ton/h
Weight: 4500kg Speed: 40 R/min
Size: 3100*1500*1800mm Type: Double Shaft
Function: Shredding
High Light:

double shaft shredder machine


two shaft shredder

Product Description

High Performance Dual Shaft Shredder Strong Shredding Force PLC Control System

Introduction of dual shaft shredder machine

Dual shaft shredder machine can meet the requirements of waste recycling in various industries, and is suitable for shredding thicker and refractory materials, such as electronic waste, plastics, metals, wood, waste rubber, packaging barrels, pallets, etc. There are many kinds of recyclable materials. The torn materials can be directly recycled or further refined according to demand. It is suitable for industrial waste recycling, medical treatment recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper making and other industries. This series of double shaft crusher has the characteristics of low speed, high torque and low noise. It adopts PLC control system and can be automatically controlled. It has the functions of starting, stopping, reversing and overloading automatic reversing control.

Technical parameters of dual shaft shredder machine

Model Power (kw) Capacity (T/H) Speed (r/min) Dimension (mm) Weight (kg)
TMS-800 22*2 2-3 40 3100*1500*1800 4500

Advantage of dual shaft shredder machine

The cutter of dual shaft shredder machine is made of special alloy steel (high speed steel or tool steel) by special processing technology, which has the characteristics of good wear resistance, high strength and repairability. The toothed cutter has unique design in thickness, tooth shape and arrangement order, and strong shear force, which can improve the shredding efficiency. The driving part is driven by heavy-duty star gear reducer, which has low speed, large torque and low cost The electrical part adopts PLC program and touch screen control, which can automatically detect overload protection and reverse and other functions.

Working principle of dual shaft shredder machine

The dual shaft shredder machine uses two wear-resistant shredding tooth rollers. When working, the relative rotation between the two shredding tooth rollers forms a V-shaped shredding tooth cavity. The shear force generated is used to crush the material. After the material enters the gap between the two tooth rollers (V-shaped crushing cavity), it is affected by the shear force of the relative rotation of the two tooth rollers, tearing and shearing the incoming material to the required particle size, and discharging it from the discharge port.

Application of dual shaft shredder machine

1. All kinds of hollow containers: plastic beverage can, plastic bucket, iron bucket, packing box, packing bucket, rubber, plastic film, woven bag

2. Waste household appliances: TV, washing machine, refrigerator shell

3. Pipes: large pipes, pipe fittings, PE pipes

4. Waste formwork: wooden pallet, plastic pallet, forklift pallet

5. Waste tires: car tires, truck tires

6. Waste metal: automobile shell, aluminum alloy, waste cast aluminum parts, engine shell, lead, steel plate, waste iron and steel with thickness less than 5mm

7. Food waste, domestic waste, animal corpses, RDF derivatives, medical waste, biological orange, garden waste

8. Rubber head material, paper mill rope

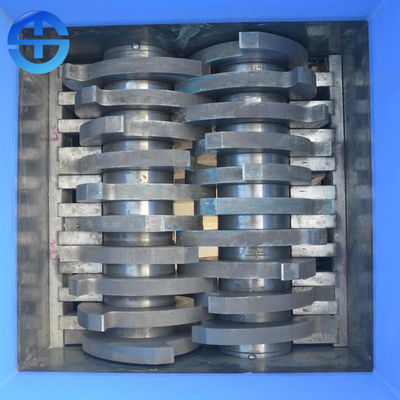

High Performance Dual Shaft Shredder Strong Shredding Force PLC Control System 0

High Performance Dual Shaft Shredder Strong Shredding Force PLC Control System 1
