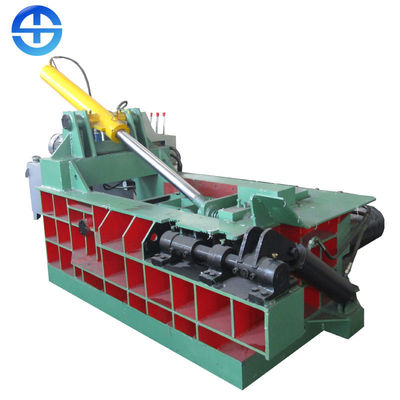

Safety Scrap Metal Baler Hydraulic Baling Press Machine ISO Certification
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CE, ISO |
| Model Number: | TMS-1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Full container 20'GP or 40'GP |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20 sets per month |
|
Detail Information |
|||
| Name: | Metal Baling Machine | Application: | Copper, Aluminum, Steel |
|---|---|---|---|
| Power: | 15 Kw | Operation: | Full Automatic PLC |
| Bale Size: | 300*300mm | Nominal Pressure: | 1250 KN |
| Capacity: | 10-20 Ton/day | Function: | Mmake Scrap Into Bale |
| High Light: | scrap metal baling machine,scrap aluminum baler |
||
Product Description
PLC-based full automatic metal baling machine for bale 300*300 mm
It can extrude all kinds of metal raw materials, such as metal edges and corners, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disintegrated automobile shells, scrap oil drums, etc. into qualified furnace materials of various shapes such as cuboids and cylinders. It is convenient for storage, transportation and recycling.
Product characteristics
1. Driven by hydraulic pressure. It works smoothly and safely.
2. Manual or PLC automatic control mode is adopted.
3. The discharging forms are: rollover bale, roll bale, forward bale or no bale.
4. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.
5. Product specifications and types: Metal balers have 63-600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.
Technical specification
| Model | Nominal pressure | Material box size | Bale size | Daily Output | Power | Pump |
| 1250 | 1250KN | 1200*700*600mm | 300*300mm | 10-20T | 15kw | YCY-63 |
| 1350 | 1350KN | 1400*800*700mm | 300*300mm | 15-25T | 18.5kw | YCY-80 |
| 1600 | 1600KN | 1600*1000*800mm | 400*400mm | 20-35T | 22kw | YCY-160 |
| 2000 | 2000KN | 2000*1400*900mm | 450*450mm | 30-45T | 22+15kw | YCY-160+63 |
| 2500A | 2500KN | 2200*1850*1000mm | 500*500mm | 40-55T | 22kw*2 | YCY160*2 |
| 2500B | 2500KN | 2500*2000*1000mm | 500*500mm | 55-65T | 30kw*2 | YCY160*2 |
| 3150A | 3150KN | 2500*2000*1000mm | 600*600mm | 80-95T | 45kw*2 | YCY-250*2 |
| 3150B | 3150KN | 3000*2500*1200mm | 600*600mm | 100-115T | 45w*2 | YCY-250*2 |
| 4000 | 4000KN | 3500*3000*1400mm | 700*700mm | 120-140T | 75kw*2 | YCY-350*2 |
