44kw Scrap Metal Baling Machine Scrap Bundle Press Machine Works Smoothly

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Full container 20'GP or 40'GP Delivery Time : 20 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 20 sets per month
Place of Origin: Henan, China (Mainland) Brand Name: TMS
Certification: CE, ISO Model Number: TMS-1600

Detail Information

Name: Aluminum Can Compressor Application: Copper, Aluminum, Steel
Power: 44kw Operation: Full Automatic PLC
Bale Size: 400*400 Mm Nominal Pressure: 1600 KN
Capacity: 20-35 Ton/day Function: Press Scrap Into Bale
High Light:

scrap metal baling machine


hydraulic baling press machine

Product Description

Model 1600 hydraulic aluminum can compressor machine 20-35 ton/day

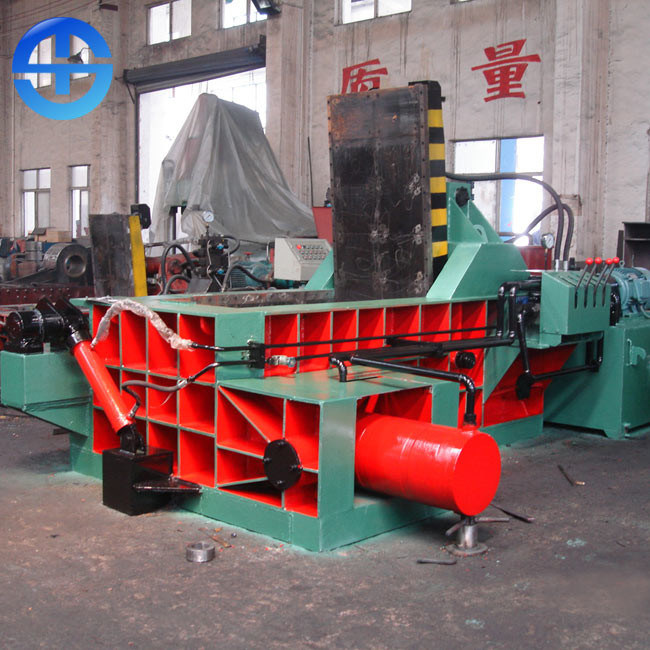

44kw Scrap Metal Baling Machine Scrap Bundle Press Machine Works Smoothly 0

Product Description

Aluminum can compressor is used for cold pressing various scrap metals into various shape, such as cuboid type, cylinder type and octangle type for convenient storge, transportation and putting into furnace.

Aluminum can compressor is suitable for processing various scrap metals within 10mm in thickness, such as scrap steel, aluminum and copper turnings, oil tank, steel windows, bicyle etc.

Equipment Feature

1. Driven by hydraulic pressure. It works smoothly and safely.

2. Manual or PLC automatic control mode is adopted.

3. The discharging forms are: rollover bale, roll bale, forward bale or no bale.

4. Installation does not require sole screw, where there is no power supply, diesel engine can be used as power.

5. Product specifications and types: Metal balers have 63-600 tons, 10 varieties and more than 20 specifications, which can meet the different needs of customers at different levels.

Technical parameters
Model Nominal pressure Material box size Bale size Daily Output Power Pump
1250 1250KN 1200*700*600mm 300*300mm 10-20T 15kw YCY-63
1350 1350KN 1400*800*700mm 300*300mm 15-25T 18.5kw YCY-80
1600 1600KN 1600*1000*800mm 400*400mm 20-35T 22kw YCY-160
2000 2000KN 2000*1400*900mm 450*450mm 30-45T 22+15kw YCY-160+63
2500A 2500KN 2200*1850*1000mm 500*500mm 40-55T 22kw*2 YCY160*2
2500B 2500KN 2500*2000*1000mm 500*500mm 55-65T 30kw*2 YCY160*2
3150A 3150KN 2500*2000*1000mm 600*600mm 80-95T 45kw*2 YCY-250*2
3150B 3150KN 3000*2500*1200mm 600*600mm 100-115T 45w*2 YCY-250*2
4000 4000KN 3500*3000*1400mm 700*700mm 120-140T 75kw*2 YCY-350*2


44kw Scrap Metal Baling Machine Scrap Bundle Press Machine Works Smoothly 1
