Electric Scrap Metal Granulators 80-100 Kg/H 750kg 12 Months Warranty
Product Details:
| Place of Origin: | Henan, China (Mainland) |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | Mini-400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Standard export ply wooden case. . |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 sets per month |
|
Detail Information |
|||
| Name: | Copper Wire Granulator Machine | Type: | Dry Type |
|---|---|---|---|
| Power: | 11.92kw | Function: | Separate Copper From Plastic |
| Separating Rate: | 99.9% | Output: | 80-100 Kg/h |
| Application: | Scrap Copper Cables | Weight: | 750kg |
| High Light: | copper wire granulator separator,scrap metal granulators |
||
Product Description

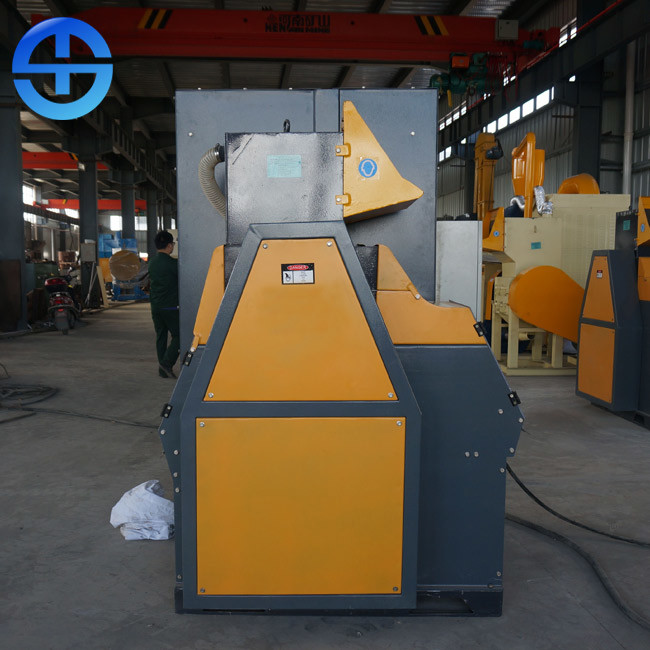

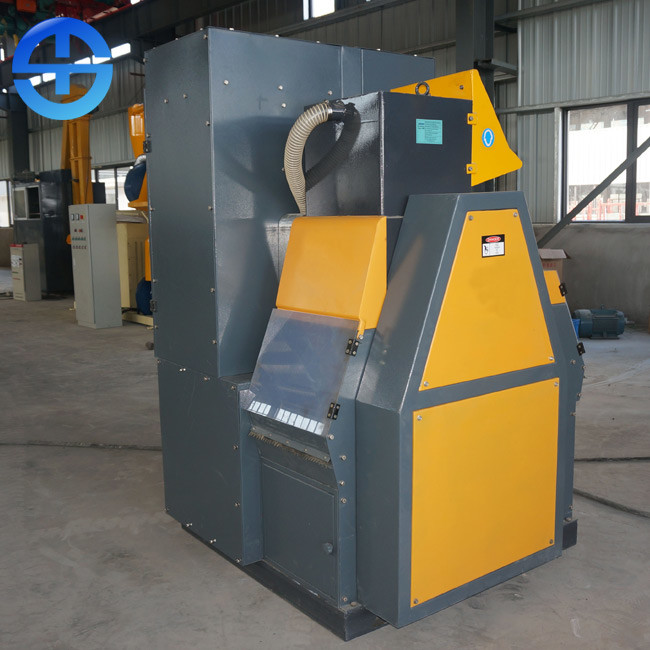

Dry Mini-400 with 80-100 kg/h copper wire granulator machine
Copper wire granulator machine is used for recycling scrap copper wires/cables with diameter less than 25mm, better for single conductor diameter of 0.2-0.5mm. The wire is like auto wires, communication cables and kinds of miscellaneous wires and cables.
Scrap copper wires are shredded by crushers, then plastic and copper granules are separated by vibration and airflow. They come out from different outlets, dust is collected by dust collector. The recovery rate can reach 99.9%.
| Model | Size (mm) | Capacity | Wire diameter range | Power | Voltage | Weight |
| Mini-400 |
1500*1500*1900 |
80-100 kg/h | 0.1-20 mm | 11.92 kw | 380/240V | 750kg |
The spare parts of copper wire granulator machine includes screen mesh and blades in crusher.
1. The machines except spare parts are guaranteed for 12 months.
2. Engineer will be sent to your place to guide how to operate for the production line.
3. We will send you extra set of spare parts and two sets small vibrators.
