Large Copper Wire Granulator Machine Wire Shredding Machine 500-600 Kg/H
Product Details:
Place of Origin: | China |
Brand Name: | TMS |
Certification: | CO, ISO |
Model Number: | TMS-800 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | One 40 feet container |
Delivery Time: | 20 work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 20 sets per month |
Detail Information |
|||
Name: | Copper Wire Granulator | Function: | Crush And Separate The Copper From Plastic |
---|---|---|---|
Application: | Scrap Copper Wires/cables | Wire Diameter: | 0.1-30 Mm |
Capacity: | 500-600 Kg/h | Copper Granules Size: | 3-5 Mm |
Voltage: | 380 V Or Customized | Weight: | 8 Ton |
Highlight: | copper wire granulator separator,scrap metal granulators |
Product Description

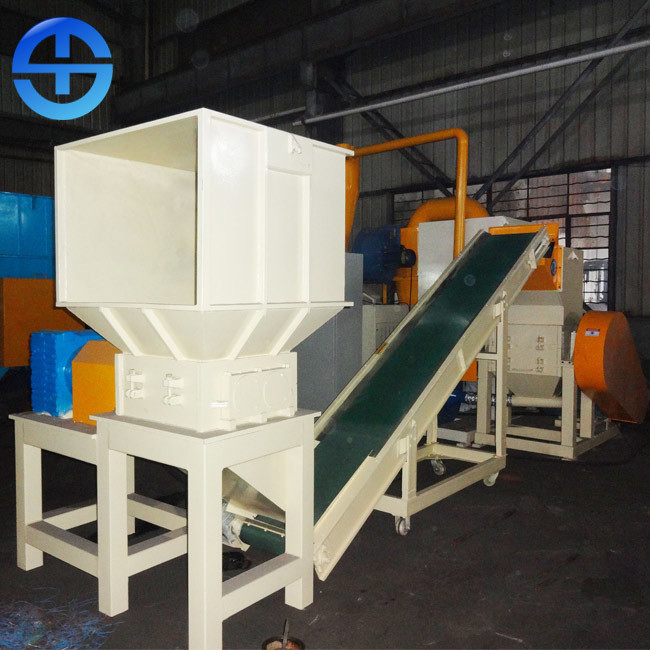

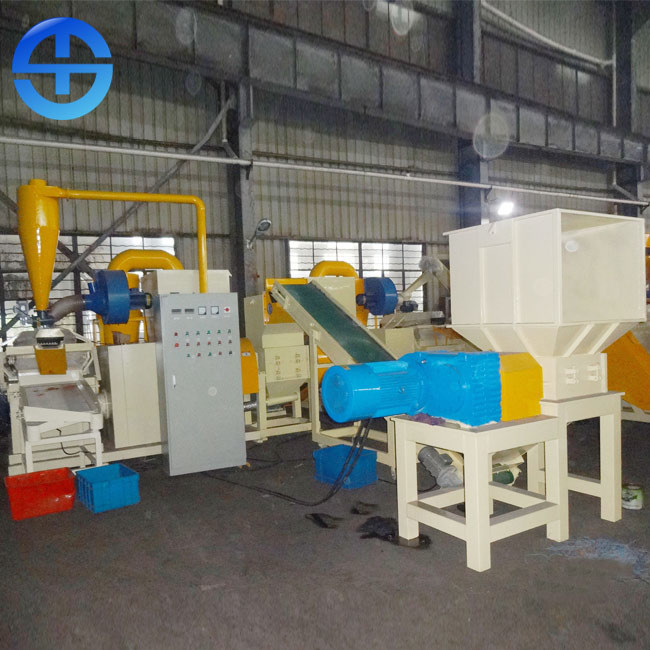

Large model 800 with 500-600 kg/h copper wire granulator recycling machine
Summary
Copper wire granulator is a complete production line which is used for handling auto wires, communication cables and kinds of miscellaneous wires and cables. It has a compact structure, stable and reliable performance.
The working process is as follows:
1. The first crusher will cut the cables (φ≤25mm) into length 10—20mm pieces.
2. The second shredder( 10 pcs rotating blades, 4 pcs fixed blades) will shred the cables into length 3-5mm plastic pieces or coppers pieces.
3. Under the force of push of airflow and vibrating of screen, the pieces will move forward one the screen,the separate copper from plastic and send them out through air duct of vibrating suction.
Motor power list
Item | Voltage | Power(kw) | |
Air Separator | Bottom Blower | 380V/50HZ | 4 |
Vibrator | 380V/50HZ | 1.5 | |
Suction Blower | 380V/50HZ | 4 | |
High pressure fan | 380V/50HZ | 5.5 | |
Airlock | 380V/50HZ | 0.25 | |
Conveyor A | 380V/50HZ | 2.2 | |
First crusher | 380V/50HZ | 22 | |
Conveyor B | 380V/50HZ | 2.2 | |
Second Shredder38 | 380V/50HZ | 37 | |
Small vibrating table | 380V/50HZ | 0.18 |
