4.5 Kw Motor Stator Recycling Machine Cutting And Pulling Copper From Stator

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case or Full container for large quantity Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-003

Detail Information

Name: Stator Recycling Machine Function: Cutting And Pulling Copper From Stator
Stator Diameter: 100-250 Mm Power: 4.5 Kw
Capacity: 30-50 Pieces/h Size: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V Or Customized
High Light:

electric motor wrecker

,

electric motor recycling machine

Product Description

4.5 Kw Motor Stator Recycling Machine Cutting And Pulling Copper From Stator



Product Details of stator recycling machine



As the name suggests, the scrap electric motor recycling machine is a kind of electric motor dismantling equipment. It recycles the waste electric motor, decomposes the electric motor, completely separates the internal copper wire and silicon steel sheet, so as to achieve the process of breaking and decomposing. The equipment to complete this work is what we call the electric motor dismantling machine.

It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.



Technical parameters of stator recycling machine



Model Power Capacity External diameter Size (mm) Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040 1050kg



Features of stator recycling machine



1. This equipment is our self-developed product, which is targeted with high efficiency, after cut the stator in half, it can take out all copper winding within 2 times, which is high economic efficiency.

2. The processing of equipment is without metal loss, with improved the reccyling value, and enviromental friendly.

3. Using heavy cylinder, large torque, can withstand high loads.

4. The material of fixture is alloy steel with durable long life.

5. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

6. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.



Structure of scrap stator recycling machine


The motor stator recycling machine is composed of a machine frame, a cylindrical iron core arranged in the machine frame and a copper wire winding in the three parts of the iron core. The motor stator is a special equipment for dismantling broken disassemble the motor stator, the hydraulic system equipment, equipment can be the stator (limited to cast-iron), cylindrical core broken into two, copper wire winding from the cylindrical iron core is pulled out, complete the dismantling process of motor stator. The utility model has the advantages of stable and reliable device operation, high work efficiency, convenient operation, flexibility, and zero pollution to the environment, and is an ideal device for breaking and disassembling the motor stator.



Motor stator broken by hydraulic system disassemble, moving with a master cylinder, through the replacement of different tooling, respectively (limited to the motor stator frame and stator iron frame) cylindrical iron core is broken into two halves, in another position can be a cylindrical stator winding copper iron core in the iron pulled out. The motor stator, silicon steel sheet, copper wire from the three part to complete the dismantling process of motor stator.

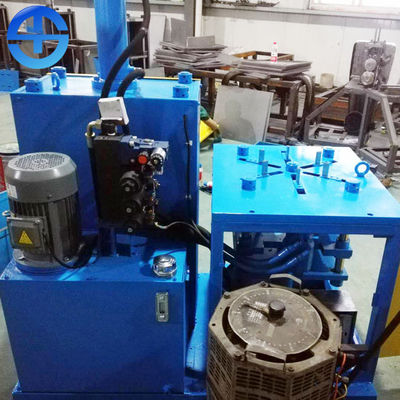

4.5 Kw Motor Stator Recycling Machine Cutting And Pulling Copper From Stator 0

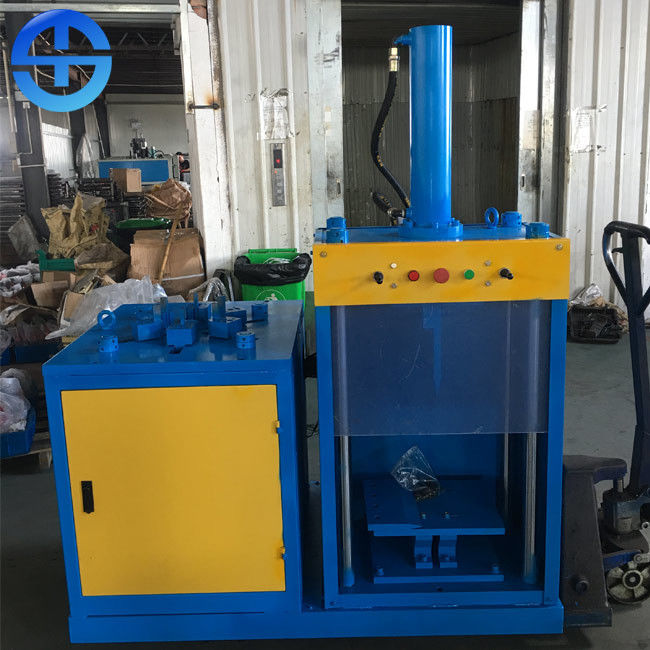

4.5 Kw Motor Stator Recycling Machine Cutting And Pulling Copper From Stator 1
