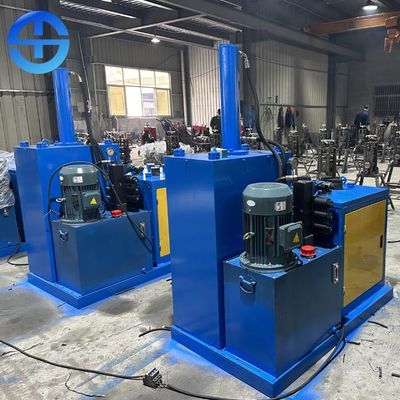

4.5kw Power 250mm Scrap Motor Stator Recycling Machine 30 - 50 Pieces/H 250 Mm

4.5kw Power 250mm Scrap Motor Stator Recycling Machine 30 - 50 Pieces/H 250 Mm

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard exported ply wooden case or Full container for large quantity
Delivery Time: 15 work days after receiving the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 sets per month
Get Best Price Contact Now

Detail Information

Name: Motor Recycling Machine Usage: Recycling Scrap Motors
Diameter Range Of Motor Stator: 100-250 Mm Motor Power: 4.5 Kw
Productivity: 30-50 Pieces/h Machine Size: 1470*740*2040 Mm
Weight: 1.05ton Voltage: 380V/50HZ Or Customized
High Light:

4.5kw Power Scrap Motor Recycling Machine


Recycling Scrap Motor Stator Machine


250mm Scrap Motor Stator Recycling Machine

Product Description

4.5kw Power 30-50 Pieces/H Scrap Motor Recycling Machine


Details of motor recycling machine


Inside discarded electric motors are valuable copper and aluminum components. These motors are constructed with sturdy shells of steel to protect the delicate wiring and parts within.Only very rugged, specialized equipment can split those casings to recover the inner metals. Our Company’s scrap electric motor recycling machine is capable of splitting even the toughest motors for recycling.


Motor stator consists of three parts,the stand and installed within the frame of the cylindrical core and the copper wire winding.Waste motor stator cutting and dismantling machine is forcible entry of special equipment for motor stator,the equipment adopts the hydraulic system work,the equipment can cut stator frame (limited to cast iron frame), cylindrical iron core in half,exhaustion copper wire winding From cylindrical core,complete the stator and rotor of the motor dismantling process.The equipment to work stable and reliable, high efficiency, convenient and flexible operation, zero pollution to the environment, is the ideal equipment of motor stator forcible entry.


It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.


Technical parameters of motor recycling machine


Model Power Capacity External diameter Size (mm) Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040 1050kg


Features of motor recycling machine


1) Using heavy cylinder, large torque, can withstand high loads.
2) We use international famous brand for hydraulic solenoid valve with durable long life.
3) The material of fixture is alloy steel with durable long life.
4) The processing of equipment is without metal loss, with improved recycling value, and environmental friendly.


Processing step of motor recycling machine


1.Turn on the machine .(when you first using the machine,please feeding the hydraulic oil more than the oil tank 3/4).
Check whether the fuel meter have data.If not ,please whatsapp Hannah:+86 18066799003.
If okay ,please do as follows.
2.Use the flat blades cut the motor shell .
3.Use the sharpen blade cut the motor stators into two pieces.
4.Put the half motor stator on the pulling panel ,then use paws and ejectors ,pulling the copper winding out .


4.5kw Power 250mm Scrap Motor Stator Recycling Machine 30 - 50 Pieces/H 250 Mm 0
