30-50 Pieces/H Scrap Motor Recycling Machine 4.5kw Power 380V/50HZ

30-50 Pieces/H Scrap Motor Recycling Machine 4.5kw Power 380V/50HZ

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: TMS-003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard exported ply wooden case or Full container for large quantity
Delivery Time: 10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Motor Recycling Machine Function: Recycle Copper From Scrap Stator
Diameter Range Of Stator: 100-250 Mm Total Power: 4.5 Kw
Productivity: 30-50 Pieces/h Whole Dimension: 1470*740*2040 Mm
Net Weight: 1050 Kg Voltage: 380V/50HZ Or Customized
High Light:

50 Pieces/H Scrap Motor Recycling Machine


30 Pieces/H Scrap Motor Recycling Machine


4.5kw Scrap Motor Recycling Machine

Product Description

4.5kw Power 380V/50HZ 30-50 Pieces/H Scrap Motor Recycling Machine


Details of motor recycling machine


Motor stator consists of three parts,the stand and installed within the frame of the cylindrical core and the copper wire winding.Waste motor stator cutting and dismantling machine is forcible entry of special equipment for motor stator,the equipment adopts the hydraulic system work,the equipment can cut stator frame (limited to cast iron frame), cylindrical iron core in half,exhaustion copper wire winding From cylindrical core,complete the stator and rotor of the motor dismantling process.The equipment to work stable and reliable, high efficiency, convenient and flexible operation, zero pollution to the environment, is the ideal equipment of motor stator forcible entry.

It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.


Technical parameters of motor recycling machine


Model Power Capacity External diameter Size (mm) Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040 1050kg


Features of motor recycling machine


1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.

2. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.

3. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.

4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

5. The recovery efficiency is high and the economic benefit is huge. The disassembly efficiency of a machine is equal to the disassembly efficiency of several people, which saves time and labor (for example, it takes about 12-18 seconds to pull out all the copper wires at one end of the stator of an ordinary 2.2kW 4-pole motor).

6. Easy operation, save labor. One worker can operate it.

7. Good working environment, energy conservation and environmental protection, no pollution


Materials of motor recycling machine


Motor stators of household appliances, such as refrigerator, cold drink machine, air conditioner, air fan, air dehumidifier etc, washing machine, electric iron, dust collector, electric cooker, microwave oven, electric oven, electric hair drier, television, radio.

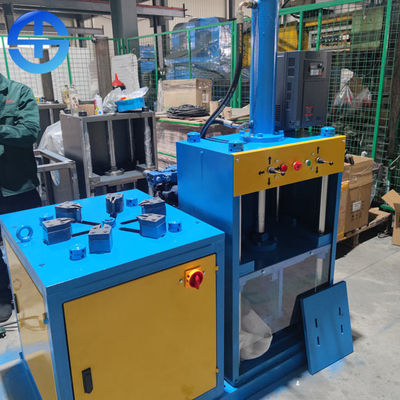

30-50 Pieces/H Scrap Motor Recycling Machine 4.5kw Power 380V/50HZ 0


30-50 Pieces/H Scrap Motor Recycling Machine 4.5kw Power 380V/50HZ 1
