50 PCS/H Motor Recycling Machine Diameter φ10-φ25cm

50 PCS/H Motor Recycling Machine Diameter φ10-φ25cm

Product Details:

Place of Origin: Zhengzhou, China
Brand Name: TMS
Certification: CE, ISO
Model Number: TMS-003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD8100-8500 per set
Packaging Details: Standard exported ply wooden case
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Name: Motor Recycling Machine Usage: Disassemble The Motor
Stator Diameter: 10-25cm Total Power: 4.5kw
Input Capacity: 30-50 Pieces/h Machine Dimension: 1470*740*2040mm
Net Weight: 1.05 Ton Voltage: 380V, 240V, 410V, Etc
High Light:

50 PCS/H Motor Recycling Machine


Diameter 25cm Motor Recycling Machine


50 PCS/H scrap motor recycling machine

Product Description

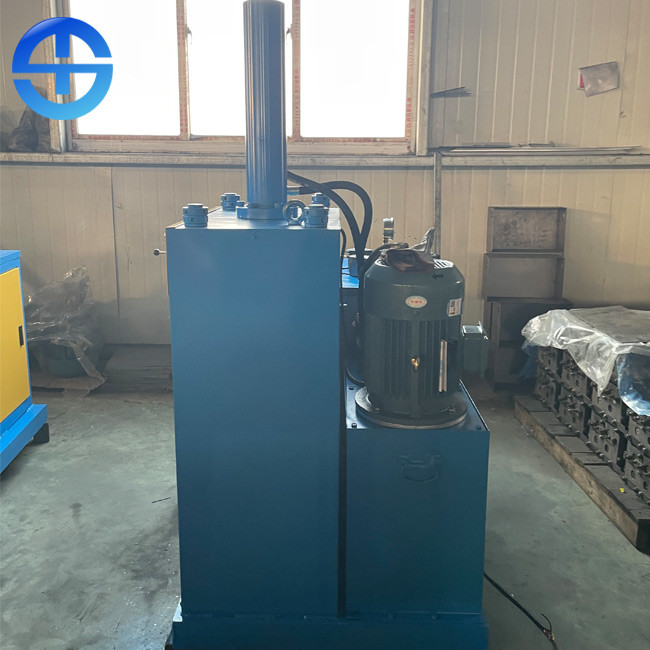

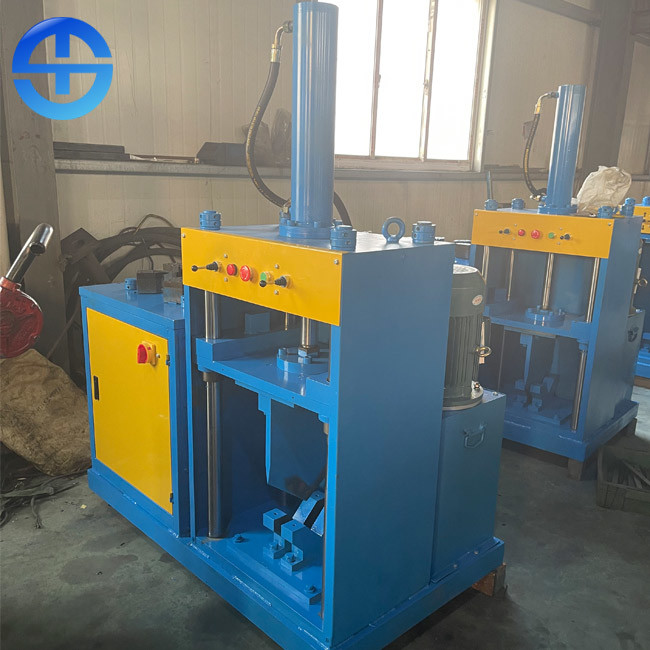

50 PCS/H Diameter Φ10-Φ25cm Motor Recycling Machine


Recycle Your Own Electric Motors


Inside discarded electric motors are valuable copper and aluminum components. These motors are constructed with sturdy shells of steel to protect the delicate wiring and parts within.Only very rugged, specialized equipment can split those casings to recover the inner metals. Our Company’s scrap electric motor recycling machine is capable of splitting even the toughest motors for recycling.


Intro of motor recycling machine


As the name suggests, the scrap electric motor recycling machine is a kind of electric motor dismantling equipment. It recycles the waste electric motor, decomposes the electric motor, completely separates the internal copper wire and silicon steel sheet, so as to achieve the process of breaking and decomposing. The equipment to complete this work is what we call the electric motor dismantling machine.

It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.


Technical data of motor recycling machine


Model TMS-003
Motor power 4.5kw
Input Capacity 30-50 PCS/H
Stator diameter 10-25cm
Machine size 1470*740*2040mm
Machine weight 1.05 Ton


Materials of motor recycling machine


Motor stators of household appliances, such as refrigerator, cold drink machine, air conditioner, air fan, air dehumidifier etc, washing machine, electric iron, dust collector, electric cooker, microwave oven, electric oven, electric hair drier, television, radio.


Features of motor stator recycling machine


1. This equipment is our self-developed product, which is targeted with high efficiency, after cut the stator in half, it can take out all copper winding within 2 times, which is high economic efficiency.

2. The processing of equipment is without metal loss, with improved the reccyling value, and enviromental friendly.

3. Using heavy cylinder, large torque, can withstand high loads.

4. The material of fixture is alloy steel with durable long life.
