30-50 Pieces / H Motor Stator Recycling Machine 4.5 Kw Power

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case or Full container for large quantity Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-003

Detail Information

Name: Motor Stator Recycling Machine Function: Recycling Motor Stator
Stator Diameter: 100-250 Mm Motor Power: 4.5 Kw
Capacity: 30-50 Pieces/h Dimension: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V/50HZ Or Customized
High Light:

50 Pieces / H Motor Stator Recycling Machine

,

30 Pieces / H Motor Stator Recycling Machine

,

4.5 Kw Motor Stator Recycling Machine

Product Description



4.5 Kw Power 30-50 Pieces / H Motor Stator Recycling Machine



Product Details of motor stator recycling machine



Motor stator consists of three parts,the stand and installed within the frame of the cylindrical core and the copper wire winding.Waste motor stator cutting and dismantling machine is forcible entry of special equipment for motor stator,the equipment adopts the hydraulic system work,the equipment can cut stator frame (limited to cast iron frame), cylindrical iron core in half,exhaustion copper wire winding From cylindrical core,complete the stator and rotor of the motor dismantling process.The equipment to work stable and reliable, high efficiency, convenient and flexible operation, zero pollution to the environment, is the ideal equipment of motor stator forcible entry.

It can be process all kinds of motor stator with external diameter 100-250mm. It cut the stator/motor in half firstly, then take all the inside copper out finally that all steps within 2 times. This machine is composed of hydraulic system, electronic control system, blade, push rod, claws, motors and main body. It is used in the motor factory to recover the unqualified motor stator enameled wire and steel sheet, and also widely used in some factories specialized in the recovery of motor disassembly. It is also widely used in the recovery of copper wire in washing machine motor and air conditioning compressor.The machine is flexible and convenient, easy to operate, compact in structure and large in output.



Technical parameters of motor stator recycling machine



Model Power Capacity External diameter Size (mm) Weight
TMS-003 4.5kw 30-50 pcs/h 100-250mm 1470*740*2040 1050kg



Features of motor stator recycling machine



1. This equipment is our self-developed product, which is targeted with high efficiency, after cut the stator in half, it can take out all copper winding within 2 times, which is high economic efficiency.

2. The processing of equipment is without metal loss, with improved the reccyling value, and enviromental friendly.

3. Using heavy cylinder, large torque, can withstand high loads.

4. The material of fixture is alloy steel with durable long life.

5. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

6. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.



Structure of motor stator recycling machine


The motor stator recycling machine is composed of a machine frame, a cylindrical iron core arranged in the machine frame and a copper wire winding in the three parts of the iron core. The motor stator is a special equipment for dismantling broken disassemble the motor stator, the hydraulic system equipment, equipment can be the stator (limited to cast-iron), cylindrical core broken into two, copper wire winding from the cylindrical iron core is pulled out, complete the dismantling process of motor stator. The utility model has the advantages of stable and reliable device operation, high work efficiency, convenient operation, flexibility, and zero pollution to the environment, and is an ideal device for breaking and disassembling the motor stator.



Motor stator broken by hydraulic system disassemble, moving with a master cylinder, through the replacement of different tooling, respectively (limited to the motor stator frame and stator iron frame) cylindrical iron core is broken into two halves, in another position can be a cylindrical stator winding copper iron core in the iron pulled out. The motor stator, silicon steel sheet, copper wire from the three part to complete the dismantling process of motor stator.



Maintenance of motor stator recycling machine



(1) This machine has a special motor, which should not be obstructed by dust, fiber and other sundries in the air inlet.

(2) In case of any abnormal noise or motor failure, stop the machine for inspection. Do not start up compensation test before the failure is found out and eliminated.

(3) After three months of storage, it is necessary to conduct a comprehensive inspection and test run before operation.

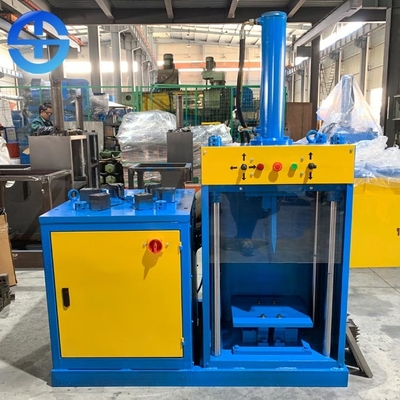

30-50 Pieces / H Motor Stator Recycling Machine 4.5 Kw Power 0

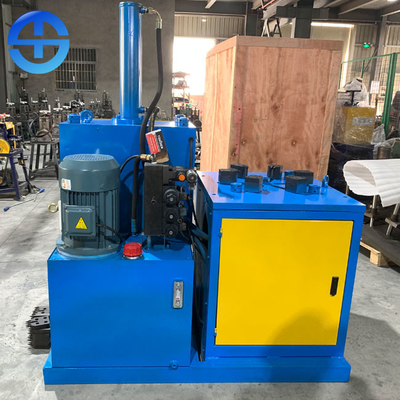

30-50 Pieces / H Motor Stator Recycling Machine 4.5 Kw Power 1
