Electric Small Motor Stator Recycling Machine Stator Wrecker Easy Operate

Minimum Order Quantity : 1 set Price : negotiable
Packaging Details : Standard exported ply wooden case or Full container for large quantity Delivery Time : 10 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 30 sets per month
Place of Origin: China Brand Name: TMS
Certification: CO, ISO Model Number: TMS-003

Detail Information

Name: Motor Stator Recycling Machine Function: Cutting And Pulling Copper From Stator
Stator Diameter: 100-250 Mm Power: 4.5 Kw
Capacity: 30-50 Pieces/h Size: 1470*740*2040 Mm
Weight: 1050 Kg Voltage: 380V Or Customized
High Light:

electric motor wrecker


electric motor recycling machine

Product Description

Electric Small Motor Stator Recycling Machine Stator Wrecker Easy Operate


Summary of motor stator recycling machine


Motor stator recycling machine is used for motor / stator cutting and stripping of copper iron / aluminum cover, this is a waste motor / stator recycling equipment. This machine first cuts the stator / motor in half, then removes all the copper inside.
The working steps of the equipment are: 1. Remove the motor casing by hydraulic cutter (only for cast iron) 2. Cut the stator of the motor into two halves by hydraulic cutter. 3. Take out the copper wire in the electronics by hydraulic iron.
It is very cost effective and convenient. This equipment has the advantages of stable and reliable equipment operation, high work efficiency and convenient operation. Flexibility and zero pollution to the environment and is an ideal motor stator removal device.


Specification of motor stator recycling machine


Model TMS-003
Power 4.5kw
Capacity 30-50 pcs/h
Diameter of stator processed 100-250mm
Dimension 1470*740*2040mm
Weight 1050kg


Advantage of motor stator recycling machine


1. Adopted hydraulic system, the disassembly function is stable, the disassembly efficiency is greatly improved, and the labor intensity is reduced.

2. The cutting blade is made of high wear-resistant carbide, which is easy to operate, reliable, fast to cut, and does not produce adhesion and burr.

3. Equipped with automatic line grabbing device, the worker can greatly reduce the labor intensity in the process of operation.

4. Cutting blade, gripping claw can adjust the reciprocating distance, more conducive to the placement of stator coil.

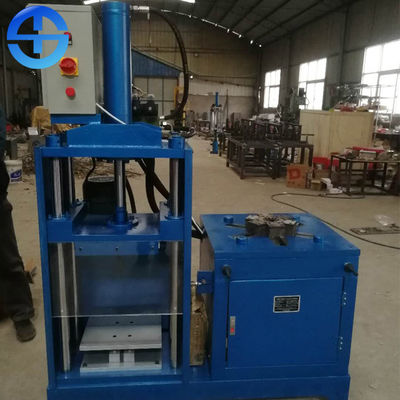

Electric Small Motor Stator Recycling Machine Stator Wrecker Easy Operate 0
