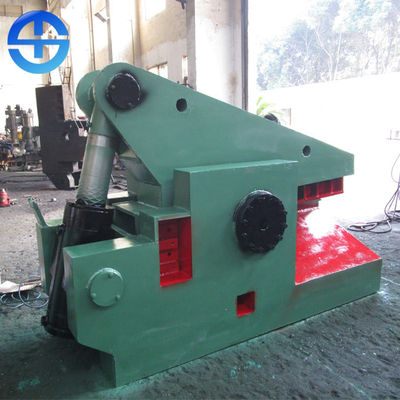

PLC Control Hydraulic Alligator Shear Waste Copper Shearing Machine 15 Kw For Recycling
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 20 or 40 feet container |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Name: | Copper Shearing Machine | Function: | Shearing Copper |
|---|---|---|---|
| Max. Shear Force: | 120 T | Blade Length: | 600 Mm |
| Power: | 15 Kw | Max. Open: | 300 Mm |
| Max. Holding Force: | 20 T | Shearing Material Size: | 45*45 Mm, Φ50 Mm |
| Highlight: | alligator metal shear,scrap metal cutting shears |
||
Product Description
PLC control waste copper shearing machine 15 kw for recycling
Product Description
Copper shearing machine applies to scrap metal (iron, steel, steel pipe, etc.) cold shearing of different section forms.
Product Features
1. A longer life: shear head adopts steel casting, overcomes the disadvange of easy deformation of the welded plate.
2. Simple operation: A new integration design, convenient movement. Hydraulic control handle, easy to operate, can realize automatic and semi-automatic operation, convenient and reliable operation.
3. Low failure rate: without the traditional electromagnetic value and the other electrical components, low failure rate,low maintenance cost.

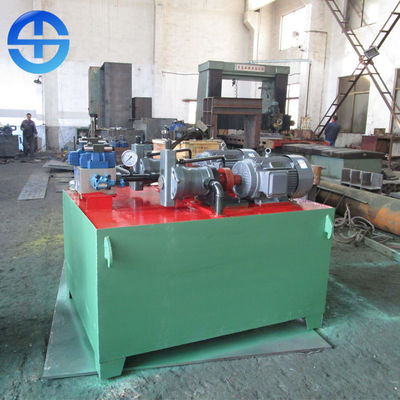

4. Hydraulic driven with hand-value or PLC, use diesel engine when electrical motor is unavailable.
Product Technical
| Item | Max Shear force | Max. Open |
Max. Holding force
|
Blade length | Frequency per minute | Power | Size of shearing material |
| 63 | 63T | 280mm | 10T | 600mm | 8-10 | 7.5kw | 30*30 Φ40mm |
| 800 | 80T | 300mm | 12T | 600mm | 8-10 | 7.5kw | 30*30 Φ35mm |
| 1000 | 100T | 300mm | 16T | 600mm | 8-10 | 11kw | 40*40 Φ45mm |
| 1200 | 120T | 300mm | 20T | 600mm | 8-10 | 15kw | 45*45 Φ50mm |
| 1600 | 160T | 320mm | 25T | 700mm | 10-12 | 18.5kw | 55*55 Φ63mm |
| 2000 | 200T | 380mm | 25T | 600mm | 12-14 | 22kw | 65*65 Φ75mm |
| 2500 | 250T | 480mm | 26T | 1000mm | 12-14 | 30kw | 70*70 Φ80mm |
| 3150 | 315T | 520mm | 42T | 1200mm | 12-14 | 37kw | 80*80 Φ90mm |
