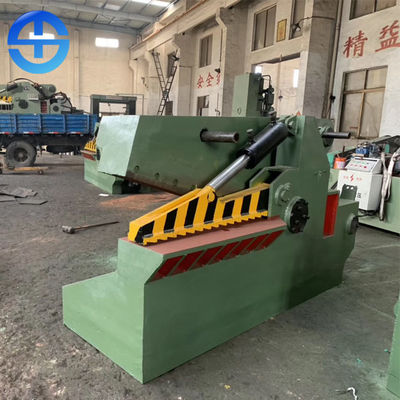

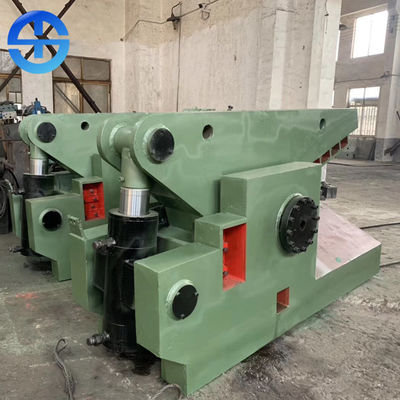

High Efficient Hydraulic Alligator Shear Metal Alligator Shear 200 Ton Shear Force
Product Details:
| Place of Origin: | China |
| Brand Name: | TMS |
| Certification: | CO, ISO |
| Model Number: | TMS-2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | 20 or 40 feet container |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
|
Detail Information |
|||
| Name: | Metal Cutting Machine | Function: | Cutting Metal |
|---|---|---|---|
| Max. Shear Force: | 200 T | Blade Length: | 600 Mm |
| Power: | 22 Kw | Max. Open: | 380 Mm |
| Max. Holding Force: | 25 T | Shearing Material Size: | 65*65 Mm, Φ75 Mm |
| High Light: | alligator metal shear,scrap metal cutting shears |
||
Product Description
Industry 200 ton shear force scrap alligator metal shearing machine
Product Summary
Metal cutting machine applies to scrap metal (iron, steel, steel pipe, etc.) cold shearing of different section forms. The device body adopts steel casting, overcomes the disadvantage of easy deformation of the welded plate. A new integration design, which avoids the disadvantage of site secondary installation. Shear head adopts sheel casting, more durable. This machine is equipped with fast unit, and the shearing speed is doubled than before, the power is saved by 50%.
Product Character
1. Low failure rate: without the traditional electromagnetic value and the other electrical components, low failure rate,low maintenance cost.
2. Hydraulic driven with hand-value or PLC, use diesel engine when electrical motor is unavailable.
3. Hydraulic acceleration system: the shearing speed is doubled than before, the power is saved by 50%.
Specifications
| Item | Max Shear force | Max. Open |
Max. Holding force
|
Blade length | Frequency per minute | Power | Size of shearing material |
| 63 | 63T | 280mm | 10T | 600mm | 8-10 | 7.5kw | 30*30 Φ40mm |
| 800 | 80T | 300mm | 12T | 600mm | 8-10 | 7.5kw | 30*30 Φ35mm |
| 1000 | 100T | 300mm | 16T | 600mm | 8-10 | 11kw | 40*40 Φ45mm |
| 1200 | 120T | 300mm | 20T | 600mm | 8-10 | 15kw | 45*45 Φ50mm |
| 1600 | 160T | 320mm | 25T | 700mm | 10-12 | 18.5kw | 55*55 Φ63mm |
| 2000 | 200T | 380mm | 25T | 600mm | 12-14 | 22kw | 65*65 Φ75mm |
| 2500 | 250T | 480mm | 26T | 1000mm | 12-14 | 30kw | 70*70 Φ80mm |
| 3150 | 315T | 520mm | 42T | 1200mm | 12-14 | 37kw | 80*80 Φ90mm |
